TE1-MK2

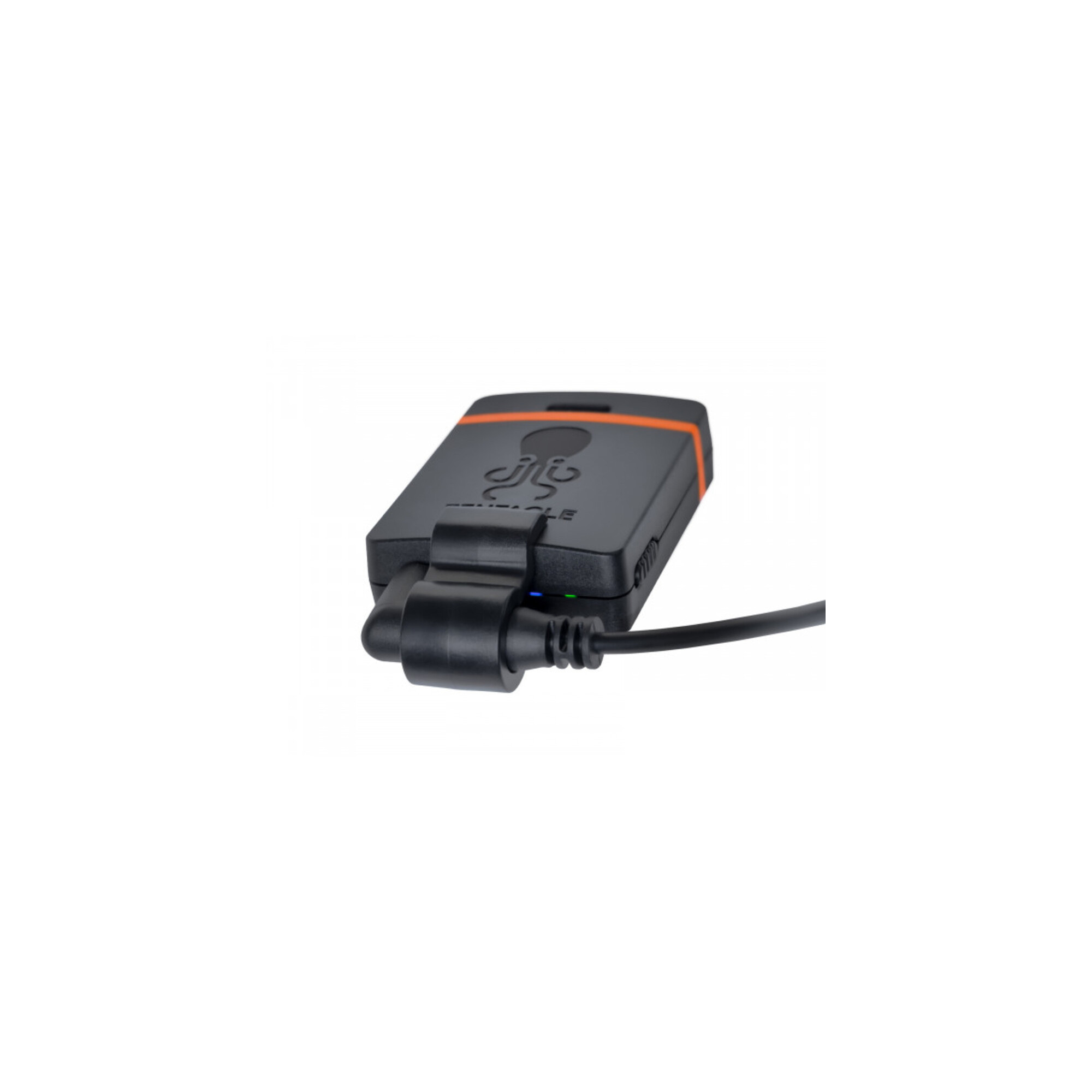

The Tentacle Sync E Mk2 Standard Set is a complete hardware / software timecode synchronization solution. Includes two miniature, user-friendly timecode generators and two free licenses for Tentacle Sync Studio Software for MacOS. In this way, Tentacle Sync E helps speed up your workflow during shooting and post-production.
The new Tentacle Sync E takes all the features of its predecessor and adds new features, putting a whole new world of possibilities in your hands.

The unit is now equipped with a low energy Bluetooth connection, which makes setup even easier and allows you to monitor all units on your smartphone or tablet. The Tentacle Setup App reports frame accuracy and how your units are synchronizing. It allows you to connect your Tentacle units to any type of camera or audio recorder. From a DSLR to an ARRI Alexa, Tentacle will do the job. The 3.5mm minijack connector is undoubtedly the most versatile connector in the world. It is thanks to the new terminal that the connector becomes lockable, which means that it is no longer necessary to purchase unusual and non-standard cables or connectors.

Technical features
• Super small and light
• Bluetooth 4.2 (low energy) connection for monitoring and settings via mobile device
• Frame rate and TimeCode output level can be changed via the Tentacle Setup application
• Two Tentacle Sync Studio licenses included
• Locking Tentacle locks a right angle minijack connector
• Improved internal reference microphone
• Generates all SMPTE timecode rates or synchronizes with any external timecode signal
• High precision TCXO crystals: the accuracy is 1 Frame lost in 24 hours (from -30 ° C to + 85 ° C)
• Designed and made in Germany

Specifications
-LTC Timecode: In accordance with the SMPTE-12M standard
-Loss: less than 1 Frame in 24 hours (from -30 ° C to + 85 ° C)
-Frame rates: 23.98, 24, 25, 29.97, 29.97DF, 30
-Timecode In / Out: Mini Jack
-Audio: Internal Reference Mic
-Power: Lithium-ion battery, up to 35 hours of operation,
-Fast charging via USB-C connector (maximum 1.5 hours)
-Mounting: Integrated hook on the back for easy assembly
- Weight: 1 oz (30 g)
-Dimensions: 1.49 x 1.97 x 0.59 "(38 x 50 x 15 mm)
