USB 3.2 Gen 1 Cat.6A 100m

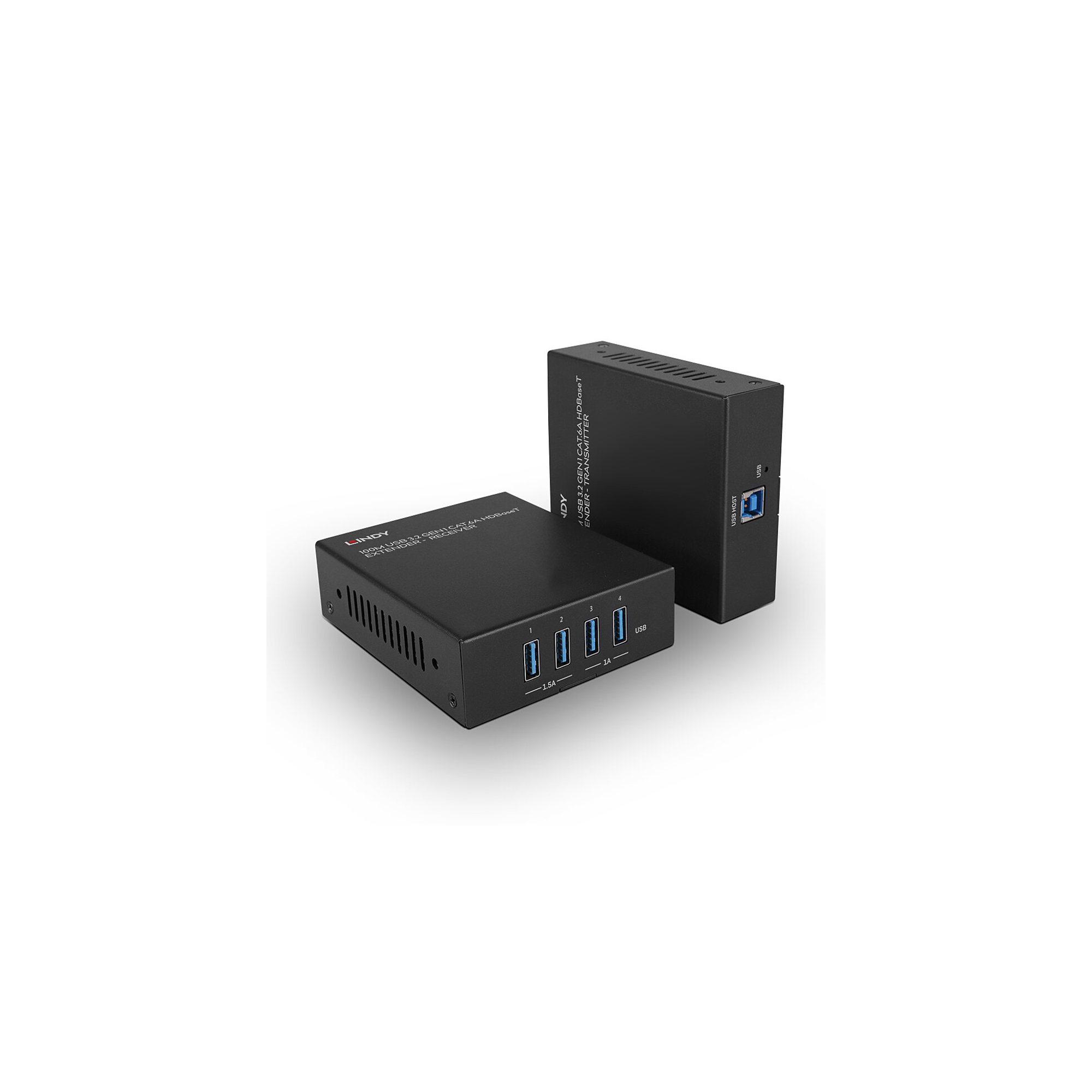

Lindy USB 3.2 Gen 1 Cat.6A HDBaseT Extender, 100m - 43410

- Extends 4 USB 3.2 Gen 1 ports up to 100m using a Cat.6A network cable (not included)
- Power over Cable, requires a single power supply to be connected to either the transmitter or receiver
- Supports USB 3.2 Gen 1 (USB 3.0) up to 5Gbps, backward compatible with USB 2.0/1.1, RS232, and pass-through FSYNC port
- Plug & Play

This Lindy USB 3.2 Gen 1 Cat.6A Extender can be used to extend the distance between USB devices and the host computer up to 100 meters.
It supports USB data transmission for control, bulk, interrupt, and isochronous types. A Cat.6A or higher network cable* (not included) is used to establish the connection between the transmitter and receiver at a maximum distance of 100m (328.08 feet). Using a Cat.6 cable allows for a maximum distance of 40m.
The Power over Cable feature allows for a single power supply to be connected to either the transmitting or receiving unit.
The 4 Type A ports on the receiver can also supply 5V power to connected devices, 2 ports support up to 1.5A each and 2 ports support up to 1A each.

Status LEDs help the user monitor power, the connection between the transmitter and receiver, and whether data transfer is in progress, while the additional RS232 and FSYNC GPIO ports allow for bidirectional command transmission, even for industrial cameras. With its robust metal housing and mounting brackets, this Extender is the ideal solution for professional applications and industrial environments.
Additionally, power is connected via a screw DC jack, ensuring a more secure and reliable connection, perfect for professional installations where accidental disconnections could pose a serious problem. *: To cover long distances close to the 100m limit, it is recommended to use Cat6A (or higher) cables certified for HDBaseT.

HDBaseT is a globally recognized standard for the high-quality distribution of AV content and other technologies, including power and control, over long distances using low-cost Cat.6 or higher cables.
The HDBaseT brand and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Using a different type of cable, introducing wall plates, couplers, or patch panels may result in reduced supported distances.
