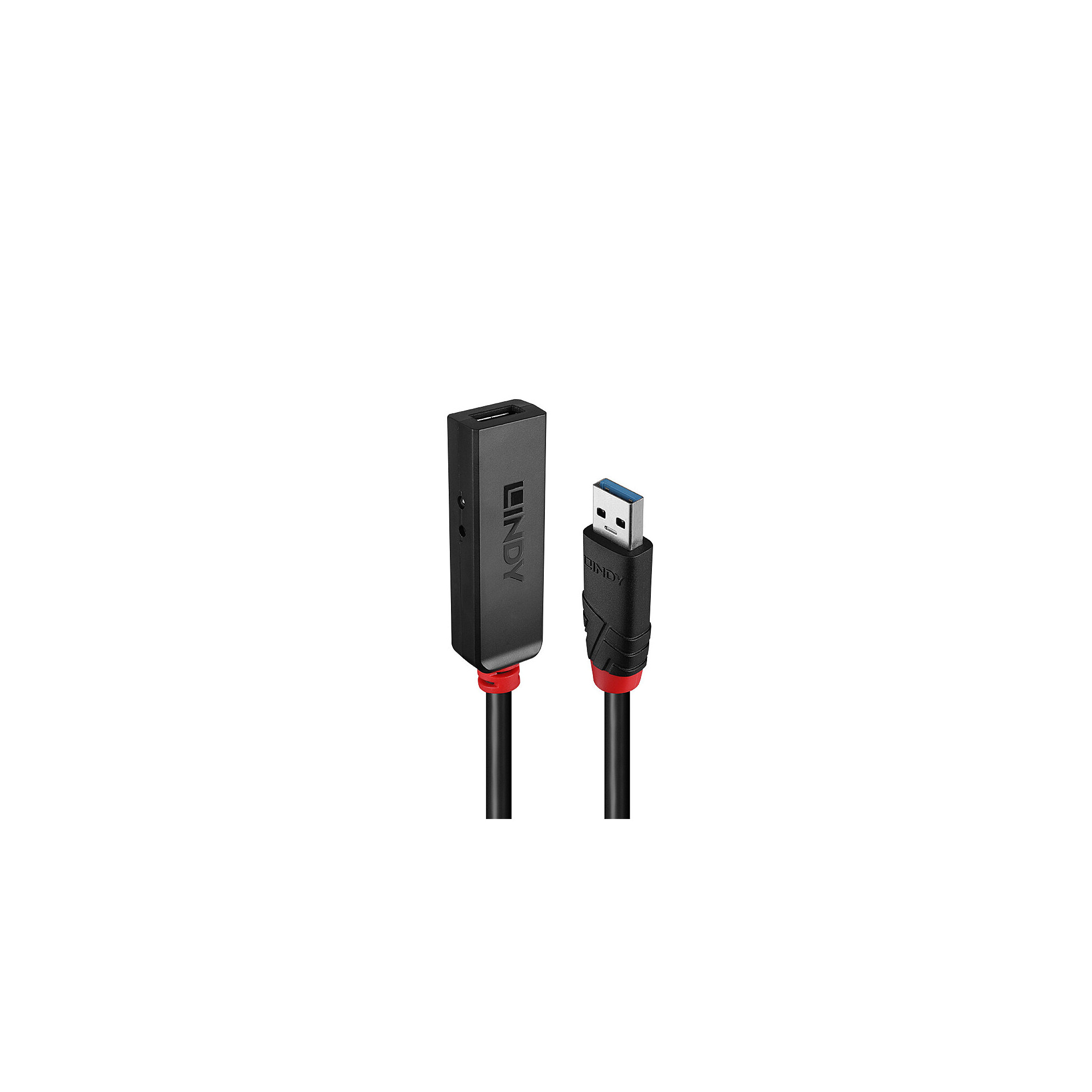

Slim USB 3.0 Active E.Cable 3m
Lindy
- New
₦ 70,571.13 VAT excl.
- 3m USB 3.0 active extension cable
- Supports data transfer speeds up to 5Gbps
- Supports daisy-chaining of up to 5 cables for longer distances
- USB power cable included
Thanks to the electronics integrated into the connector itself, this active USB 3.0 extension cable allows you to connect USB 3.0 devices at distances greater than the standard 3m while maintaining a data transfer speed of 5Gbps.
It has USB A male connectors for connecting to a computer and USB A female connectors for connecting peripherals such as pen drives, webcams, etc., to position them at the desired distance.
It supports daisy-chaining of up to 5 extension cables. Additionally, up to 5 cables of different lengths of these Slim USB 3.0 active extension cables can be combined.
The only exception is the 15m version (No. 43404: Featuring two chipsets, it can be combined with up to three other active USB 3.0 Slim extension cables.
The Lindy USB 3.0 Slim active extension cable is USB bus-powered, but also features a DC jack for connecting a power supply for devices with high power requirements or for daisy-chaining multiple cables.
The active USB 3.0 extension cable is compatible with computers with USB Type-A ports. Perfect for both professional and home installations.
The slim design makes installation in tight spaces much easier, an advantage over standard extension cables with bulkier USB connectors.
Please note: This product contains one USB 3.0 hub, which should be considered when using it in a larger installation to connect other devices.
About USB 3.0, USB 3.1 & USB 3.2
USB 3.0, USB 3.1, and USB 3.2 PCs, devices, and cables are all compatible with each other using both USB Type-A and Type-C interfaces.
USB 3.0, USB 3.1 Gen 1, and USB 3.2 Gen 1 all support transfer speeds up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support transfer speeds up to 10 Gbps.
Connectors
Connector A: USB Type-A Male
Connector B: USB Type-A Female
Power Supply: 2.5/0.7mm DC
Connector Material: PVC
Connector Plating: Nickel-Plated Shell
Pin Composition: Copper
Pin Plating: Gold
Dimensions (approx.) LxWxH:
- USB A Male: 41.1x16.5x9.5mm (1.61x0.64x0.37in)
- USB A Female: 67.5x22x13.5mm (2.65x0.86x0.53in)
Cable Composition
Length: 3m (9.84ft)
Standard: USB 3.2 / 3.1 Gen 1 / 3.0
Color: Black
Type: Round
Diameter Jacket Diameter: 6.5mm (0.26in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Size: 26AWG+26AWG+21AWG
Shielding: 75% TC
General
Supported Bandwidth: 5 Gbps
Nominal Attenuation: <[email protected] (USB 3.0), <5.8Db@200MHz (USB 2.0)
Minimum Bend Radius: 80mm (3.14in)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -10°C - 60°C (14°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.2 / 3.1 Gen 1 / 3.0
1x Slim USB 3.0 Active Extension Cable, 3m
1x USB Type-A to 2.5mm DC Cable, 1.5m (max. 5V 1A)
