Studio 4K 12X - Gray
Studio 4K 12X - Gray
Previous keyboard_arrow_left
Next keyboard_arrow_right
Studio 4K 12X - Gray
Studio 4K 12X - Gray

Studio 4K 12X - Gray

PTZOptics

0840170500906

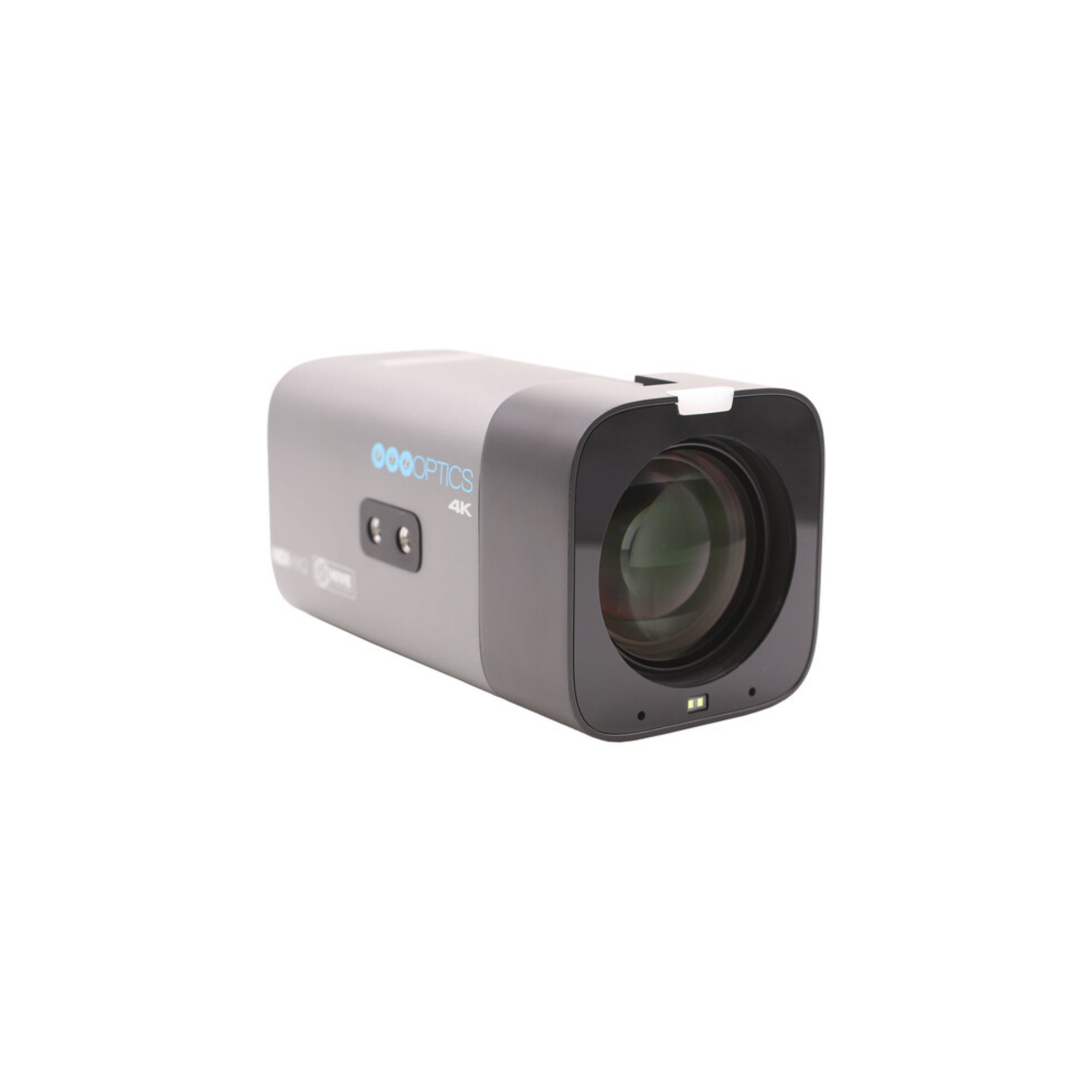

Studio 4K Camera with 12x Optical Zoom - Gray
go to the technical sheet
  • New
₦ 1,948,061.00

₦ 1,812,149.49 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant
PTZOptics Studio 4K Camera with 12x Optical Zoom, NDI|HX2/SRT/RTSP/RTMP Streaming (Gray)

Capture UHD 4K60 resolution video with this ${desc} Studio 4K Camera with 12x Optical Zoom from PTZOptics.
The Studio 4K features a 12x zoom lens with a 72.5° angle of view as well as a 16x digital zoom to get even closer to your subjects.
The camera allows you to stream live on a network using NDI|HX2, SRT, RTMP/RTSP using H.264/H.265 video formats.
Control options include IP and RS-485 using the built-in terminal connector.
Other connectivity options include USB-C and SDI outputs with a maximum resolution of 1080p60, and an HDMI output with support for up to UHD 4K60.
You can power the camera using a power adapter or via PoE+ (Power over Ethernet), so the camera can be powered and connect to the network using a single Ethernet cable.

4K Video Capture
The Studio 4K can be used as a standalone box camera or as an addition to a larger studio setup.
Its high-resolution sensor provides crystal-clear 4K resolution, 12x optical zoom, and it is conveniently Hive-Linked to the easy-to-use PTZOptics online platform, Hive Studio, delivering connectivity and control from anywhere.

Multiple Connections
The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI|HX2 support, allowing seamless integration into various video production setups.
It can connect directly to a live production switcher, streams over a network, or records through an SDI interface.
Built-in connectivity links to the online Hive Studio platform automatically.

Powerful Zoom
Capture a head-and-shoulders shot of your subject from up to 90' away with 12x optical zoom, and even closer with 16x digital zoom, making it ideal for medium or large spaces.
It features a maximum 72.5° wide field of view.

Applications
The Studio 4K fits right into a Move SE or Move 4K multi-camera setup, enhancing your production capabilities.
Its high-quality construction and discreet profile makes it a great choice for streaming meetings, worship services, courtrooms, sports, and security applications.

Camera & Lens
Image Sensor & Lens: 1/2.8" CMOS, 8MP (8.4M effective pixels)
Digital Zoom: 16x
Resolution and Frame Rate:
- HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
- SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
Optical Lens Focal Length (Zoom): 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
Optical Lens Field of View, Horizontal & Vertical: 12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
Display Field of View: 12x: 80.2°
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30x ~ 1/10000s
Presets: 255 Presets
Presets Accuracy: 0.1°
Image Flip: Supported
Image Mirror: Supported
Image Freeze: Supported

Connections
HD Video Output:
- 1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX2 enabled
- 1x HDMI: Version 2.0
- 1x USB: 3.0 Type C
- 1x 3G-SDI: BNC type, 300mVP-p, 75O, Along to SMPTE 424M
Audio Interface:
- 1x 3.5mm Line level input
- 1x 3.5mm Line level outpu
Video Formats:
USB:
- YUY2: Max resolution 1920x1080p @ 30fps
- MJPEG: Max resolution 3840x2160p @ 30fps
- H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps
RTSP/NDI® HX2 only:
- H.265: Max resolution 3840x2160p @ 60fps
Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX2 only)
UVC Version Supported: UVC 1.1 ~ 1.5
Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX2, SRT, Multicast, etc.
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption: Max 2A
Power Consumption: Max 18W

General
Maerial: Aluminum, Plastic
Working Environment: Indoor
Humidity Range: 10% ~ 80%
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)
Dimensions (L x W x H): 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight: 1.5 lbs | 0.68kg

1x Studio 4K Camera with 12x Optical Zoom (Gray)
1x Power Supply
1x IR Remote Control
2x AA Battery (Remote)
1x USB-C to USB-A Cable
1x Camera Lens Cap
