CDL12P
Presonus
PreSonus ® CDL12 is the result of years of research and development, combining the best features of point source and line array technology in an exclusive design.
Based on the constant directivity two-way speaker system design, the CDL12 radiates a highly focused pattern with consistent SPL throughout the frequency response range.
The result is clear, articulate speech intelligibility and natural music reproduction.

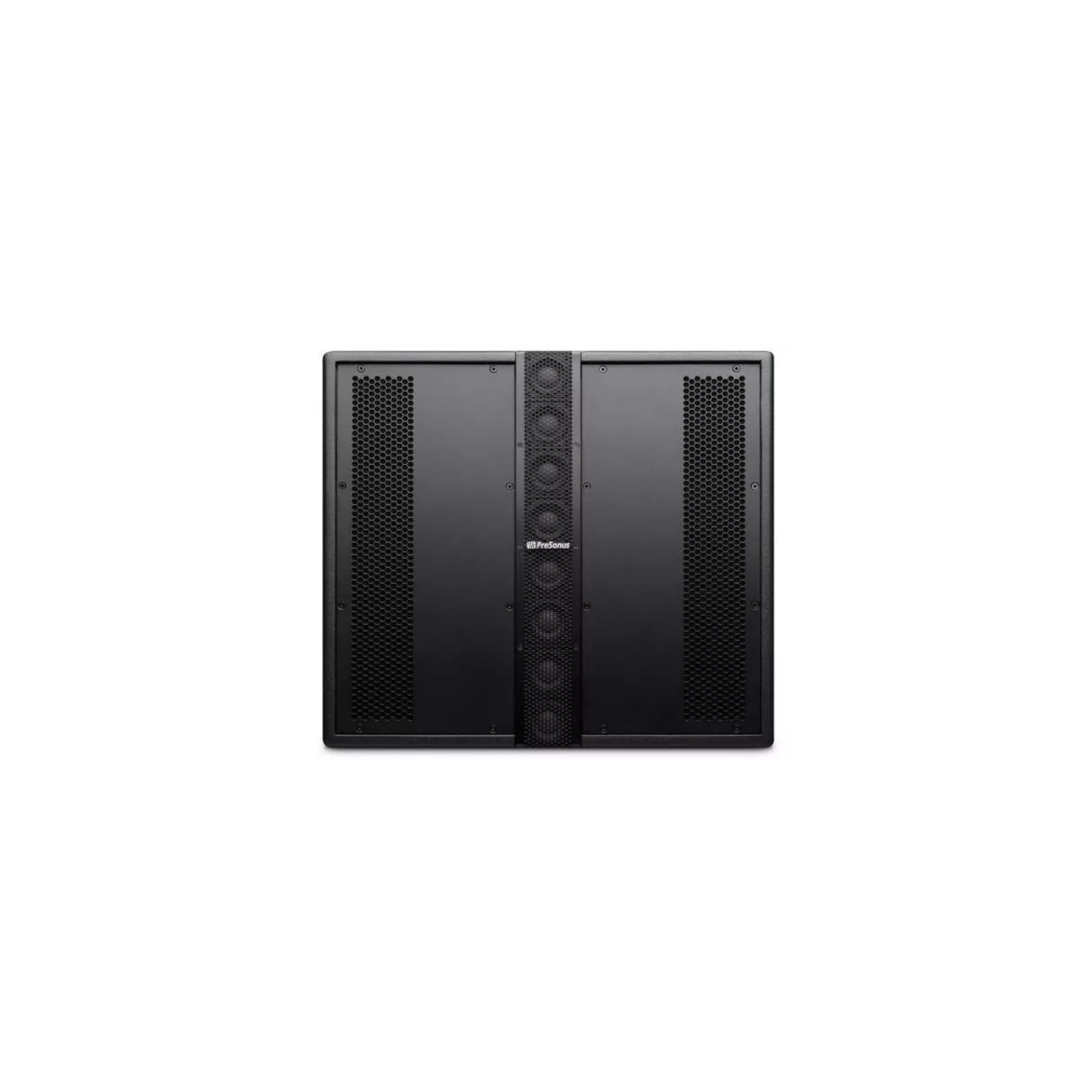

Each CDL12 consists of eight 2-inch drivers aligned in a circular arc segmented high-frequency array centered in front of a 12-inch woofer.
The low-frequency driver output travels from the same acoustic axis as the high-frequency array so that the pattern always radiates from the center.
The CDL12 can be used singly on a tripod speaker stand or as part of an acoustically coupled vertical array with up to six loudspeakers.
For this reason, the CDL12 avoids near-field anomalies that can interfere with the sound quality of a traditional line array.
This makes the CDL12 ideal for a wider range of venue sizes, creating an immediate and consistent far-field response.
Configuration: Active 2-way
Frequency Response: (-3dB) 48Hz - 18kHz
Frequency Response: (-10dB) 42Hz - 19kHz
Nominal Coverage: (-6dB) 120° x 20°
Maximum Peak SPL: 131dB
Crossover Frequency: 420Hz
LF transducer: 12" (2.5" voice coil)
HF Transducer: 8 x 2" (1" voice coil)
Amplifier: Class D
Total Output Power: 2000W Peak, 1000W Program (500W RMS)
LF Power: 1000W Peak, 500W Program (250W RMS)
HF Power: 1000W Peak, 500W Program (250W RMS)
Nominal THD: <0.05% (20Hz - 20kHz)
Dynamic Range: 119dB (A-weighted)

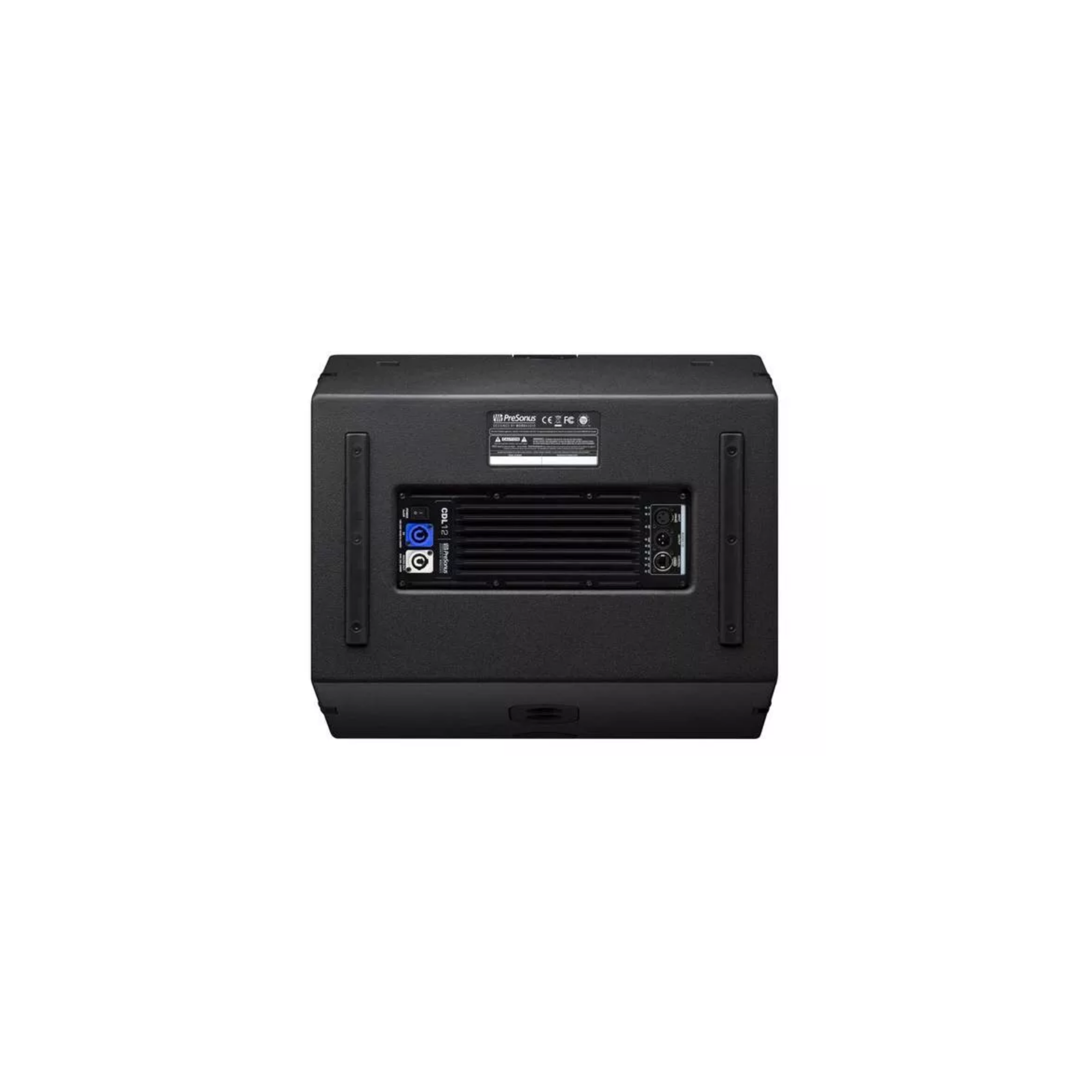

Grid connection: powerCON ™ Inside and out
Types of input connectors 1 XLR
Line input impedance 40kO
Maximum Input: +4 dBu
Output Connector: Direct Line Out (XLR)
Dante® networking (audio and control), control (only) via Locking Ethernet
Dimensions: 73mm x 529mm x 444.5mm
Weight: 29.5kg
