D3V White
Adam Audio
₦ 790,910.38 VAT excl.

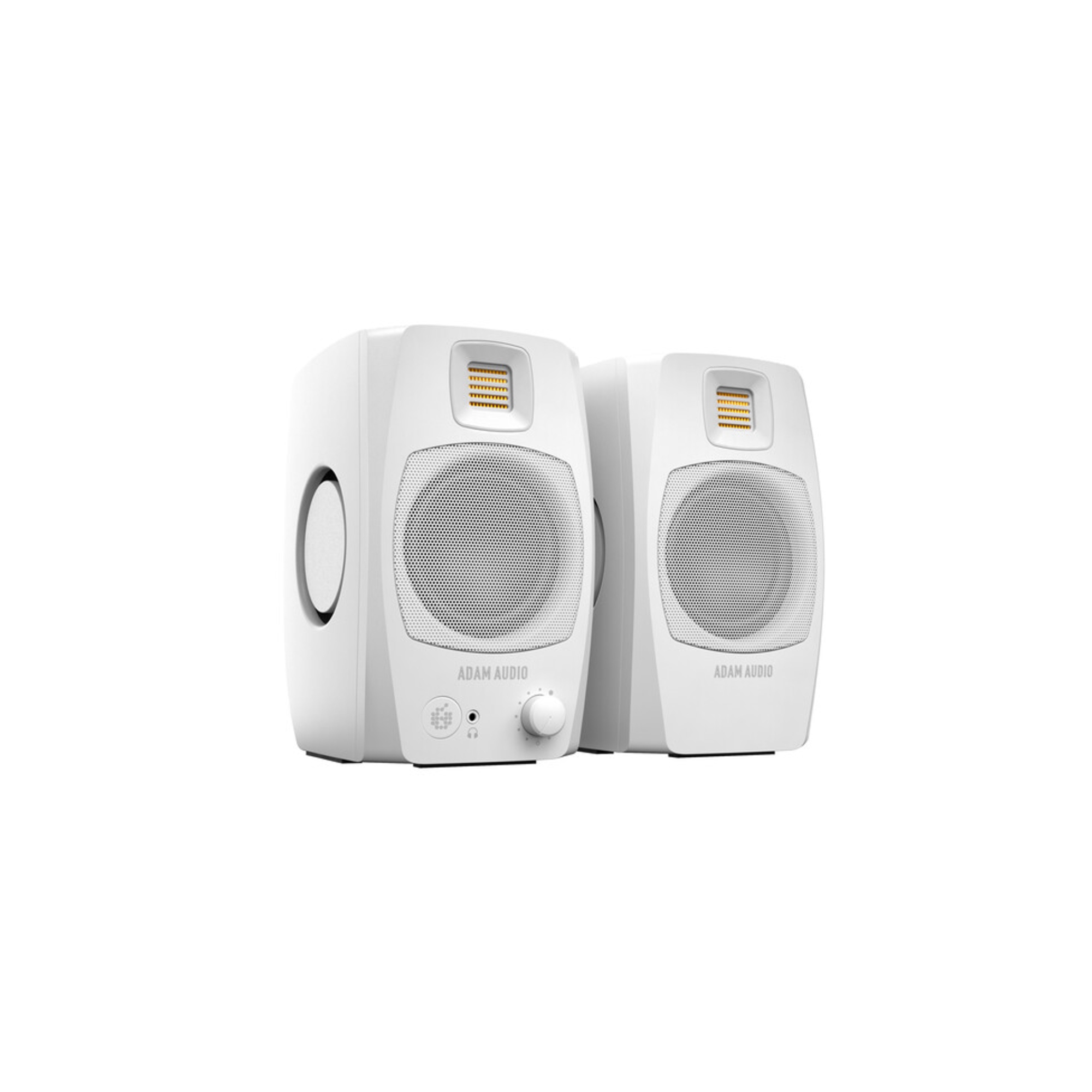

The D3V is a fully active desktop monitoring system that stays true to ADAM Audio's industrial design heritage and features the iconic AMT tweeters.
Each pair features 3.5" aluminum woofers and a ferrite magnet system, driven by an astonishing 240 W total system amplification.
Dual-sided 3.5" passive radiators bolster bass frequencies and allow the D3V to extend down to 45 Hz.
Equipped with a USB-C input and two balanced TRS sockets, D3V offers high-quality digital and analogue connections.
Streamlined controls include a multi-function volume knob, intuitive room compensation switches and a multi-color status indicator.
The D3V comes complete with detachable monitor stands as well as in-built threaded mic stand mounting points (3/8") for perfect positioning in any environment.
Available in black or white editions, the D3V's finish can be chosen to match your taste and compliment your environment.
ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology.
Here you can explore the technology of the D3V.
- D-ART 1.5" Hand-Folded Tweeter: The D3V utilizes a 1.5" D-ART tweeter so that customers can enjoy precise and unfatiguing high frequency reproduction.
- USB-C & Balanced Analog Inputs: The D3V offers a direct plug'n'play USB-C connection to computers, mobiles, and tablets. Traditional ¼" TRS inputs are also included.
- DSP Room Adaption: The D3V features DSP-powered 3-way switches to address common acoustical issues arising from speaker placement.
- 3.5" Woofers & Dual-Sided Passive Radiators: Partnering with the D-ART system, the D3V utilizes 3.5" woofers, a ferrite magnet system and passive radiators for the low frequencies.
- One Button Control: The D3V's multi-function volume control allows users to quickly access the common functions that make life that little bit easier…
- Monitor Stands & Mounting Options: Detachable feet are included as standard, plus users will find a 3/8" mic stand mounting point on the underside.
Drivers per Monitor
___________________________
Tweeter: 1x 1.5" / 38.1 mm Ribbon
Woofer: 1x 3.5" / 8.9 cm Aluminum Cone | Voice Coil: 1" / 25 mm
Passive Radiator: 2x 3.5" / 88.9 mm
Amplifiers:
- HF: 2 x 30 W RMS / 40 W Peak
- LF: 2 x 70 W RMS / 80 W Pea
Performance
___________________________
Frequency Range: 48 Hz to 22.6 kHz (-3 dB) | 45 Hz to 23.2 kHz (-6 dB)
Maximum Sound Pressure Level (SPL): 96 dB (Peak) | 92 dB (Continuous)
Maximum Input Level: +9 dBu
Analog Input Sensitivity/Gain: 0 dBu
Protections and Limiting: Peak Limiter, Thermal Limiting
Speaker Sensitivity: 88 dB
Signal Processing
___________________________
EQ:
- LF Tilt: 0 to -6 dB
- Low-Mid Notch/Peak: 0 to -6 dB
- Mid Notch/Peak: 0 to -4 dB
- HF Tilt: 0 to -3 dB
Filters: No
Parametric EQ: No
Crossover Frequency: 4 kHz
Maximum Sampling Rate: 48 kHz / 24-Bit
Connectivity
___________________________
Audio I/O: 1x 1/4" TRS Balanced Speaker Input
Digital Audio I/O: No
Network I/O: No
USB: 1x USB-C
Wireless: No
Mobile App Compatible: No
Power
___________________________
AC Input Power: 100 to 240 VAC, 50/60 Hz
Power Consumption: 60 W (Maximum)
Physical
___________________________
Color: Black
Monitor Orientation: Vertical
Enclosure Material: ABS
Fan-Cooled: No
Mounting Points: 1x 3/8"-16 Female (Bottom Panel)
Dimensions (W x H x D): 9.5 x 7.9 x 4.5" / 24.1 x 20.1 x 11.4 cm (Each)
Weight: 4.0 lb / 1.8 kg (Each)
3V Active Desktop Monitoring System (White) - Pair
2x D3V Angled Stand
6x D3V Desktop Pad
1x Loudspeaker Link Cable (6.6'')
1x USB-C to USB-C Cable (3.3)
1x USB-C to USB-A Adapter
1x PSU and Mains Power Cable
