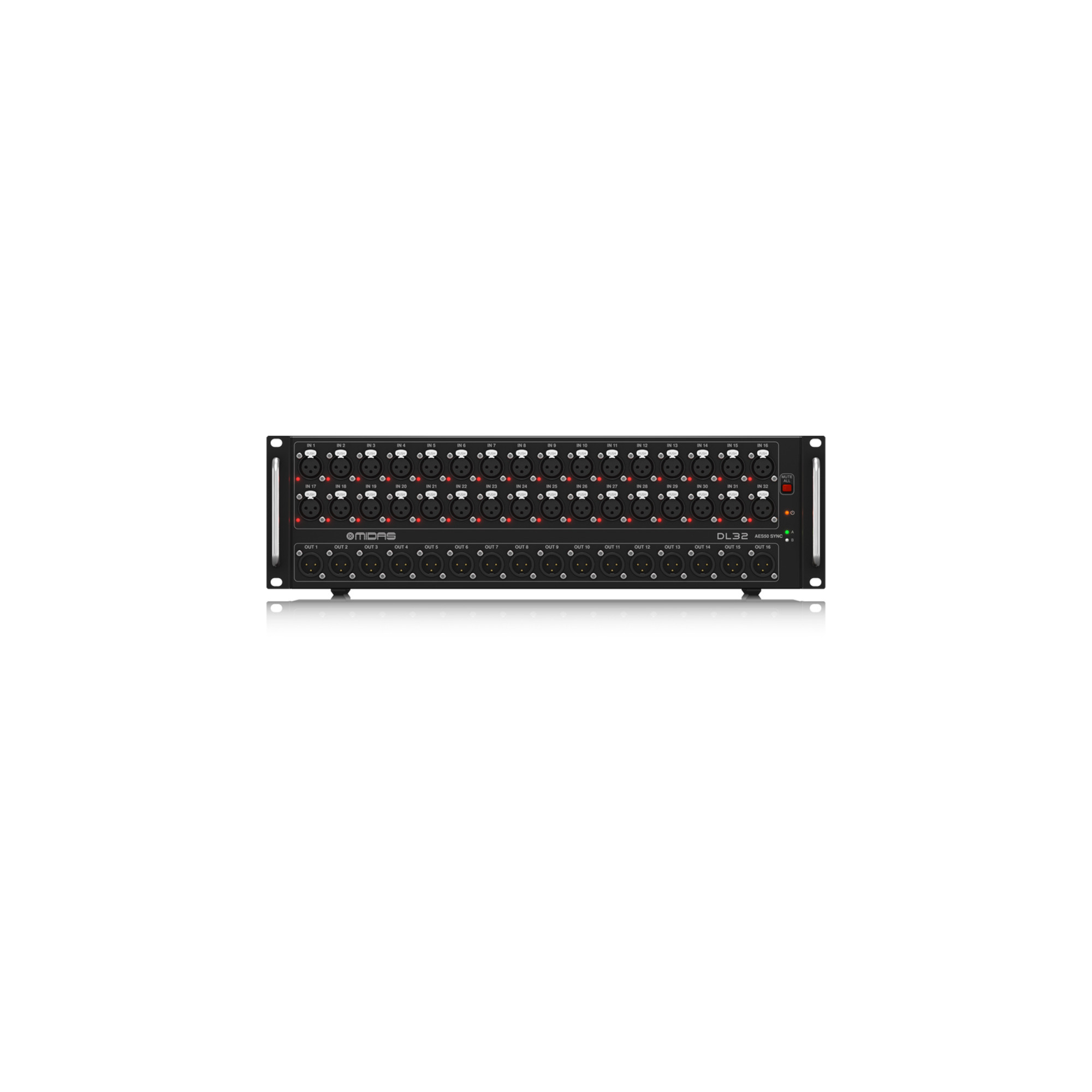

DL32

32 Input, 16 Output Stage Box with 32 MIDAS Microphone Preamplifiers, ULTRANET and ADAT Interfaces

32 award-winning MIDAS PRO microphone preamplifiers with switchable 48 V phantom power
16 electronically balanced low impedance line level outputs
ULTRANET personal monitoring system connectivity for in-ear applications
Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability
Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required
Automatic AES50 stage-split mode when connected between MIDAS M32 Series FOH and monitor consoles
Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
Mute All function for quietly patching any inputs on stage
MIDI In/Out for bidirectional communication between MIDAS M32 Series console and on-stage MIDI devices
Features Neutrik etherCON* AES50 and ULTRANET network ports
Rugged 3U rackmount chassis for durability in portable applications
Auto-ranging universal switch-mode power supply
Designed and engineered in the U.K.
