KY-PZ400NBE

Name: KY-PZ400NBE
Brand: JVC
SKU: KY-PZ400NBE
Price: 2208.61 EUR
Availability: OutOfStock

JVC

EAN: 4975769021305

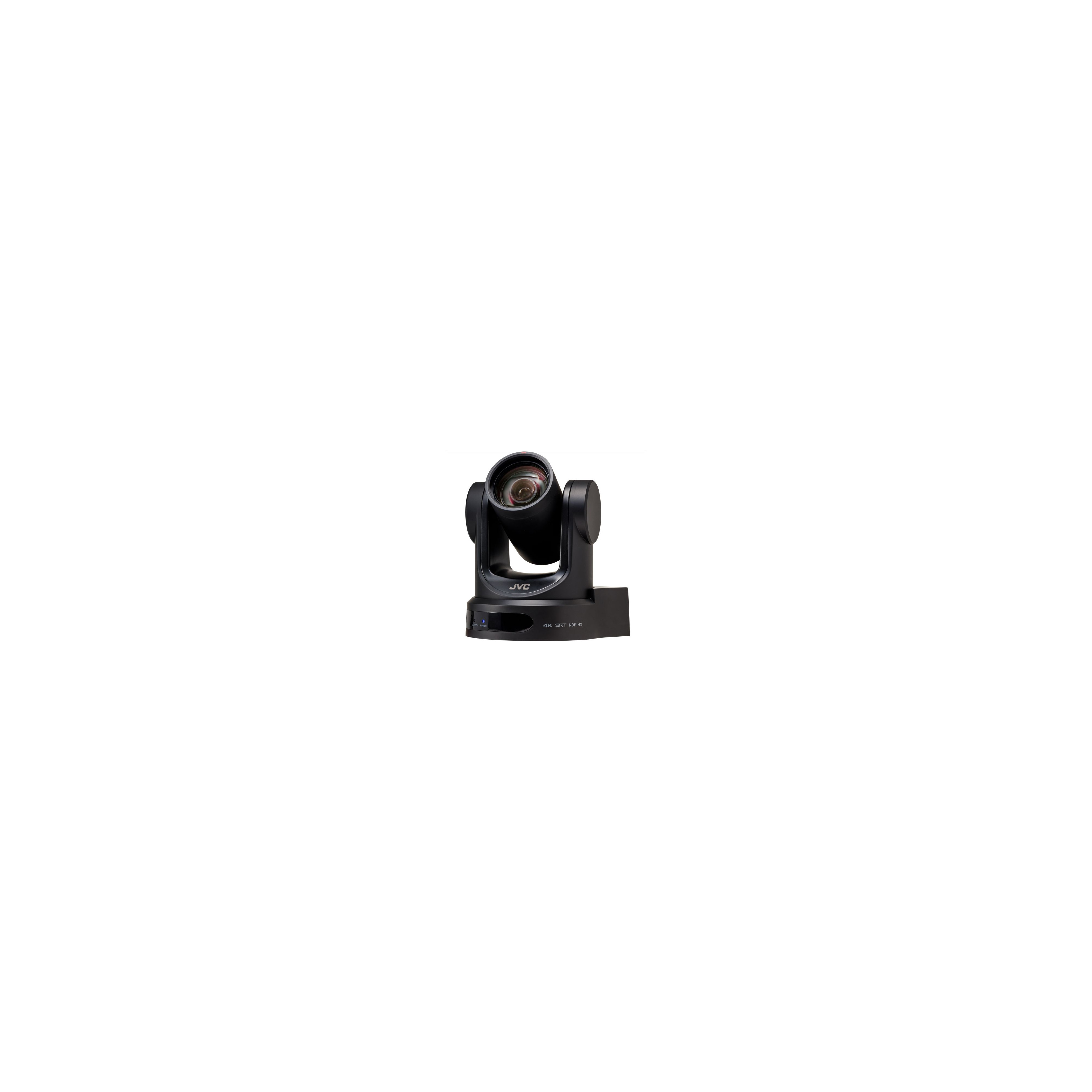

KY-PZ400NBE JVC 4K - IP PTZ camera with NDI HX and SRT (black color)

go to the technical sheet

€ 2.208,61

€ 2.054,52 VAT excl.

Available in 14 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

KY-PZ400NBE JVC 4K - IP PTZ camera with NDI HX and SRT (black color).

JVC's first 4K pan, tilt and zoom video production camera, the KY-PZ400 offers NDI HX, SRT and supports POE for a true "one wire solution". Ideal for studio or field use, this 4K PTZ model enables reliable remote IP production for education, corporate, live, and sporting applications.

Features:

- 255 preset and position memories
- Large 71 ° optical zoom lens with 12x zoom ratio (4.4mm ~ 52.8mm, F1.8 ~ F2.6)
- Streaming protocols: NDI | HX, SRT, RTSP, RTMP, RTMPS
- Powerful encoding engine supports H.265, H.264 & MJPEG
- Simultaneous high (4K) and low resolution encoding with main and sub stream
- LAN connector supports Power over Ethernet (POE)
- Compatible with JVC RM-LP100 controller using JVC or API protocol
- 3G-SDI and HDMI 2.0 (4K) digital outputs
- IP communication protocols RS232, RS485 and JVC
- Scope of delivery: IR remote control, mounting bracket, power adapter and RS232 cable
- 1 / 2.5 "CMOS sensor (8.51 million pixels)
- NDI HX
Ulteriori informazioni su questo testo di origine
Per avere ulteriori informazioni sulla traduzione è necessario il testo di origine
Invia commenti
Riquadri laterali

PTZ cameras Stands - Hardware - Tools Tripods - Components Tripods - Kits

ON-AIR

ST500 Wall Mount B

€ 83,07 VAT included

Available 3 unit in 4 Days

-2.5%

Cartoni

APTZ001

-2.5%

€637,18 € 621,25 VAT included

Available 1 unit in 4 Days

-2.5%

Cartoni

APTZ002

-2.5%

€127,71 € 124,52 VAT included

Available in 14 days

Libec

LX-ePed

€ 2.968,88 VAT included

Available in 14 days

Libec

LX-ePed Studio

€ 3.127,76 VAT included

Available in 14 days

Download

Datasheet

Download (1.68MB)

Technical specifications
Image sensor: 1 / 2.5 "CMOS
Number of sensors: 1 x
Mega Pixel: 8.51
S / N in dB: 41 x
Minimum illumination: 0.5Lux
Shutter speed: 1/30 to 1/10000

Optics specifications
Optic type: Internal
Optical zoom: 12 x
Dynamic Zoom: 16 x
Lens F number: 1.8 to 2.6
Optical ratio: from 4.4mm to 52.8mm
Autofocus: Yes

PTZ head functions
PAN angle in degrees +/-: 170 x
PAN speed with AC adapter maximum degree / sec: 100 x
PAN speed with POE + max degree / sec .: 100 x
TILT angle in degrees: -30 to 90
TILT speed with AC adapter maximum degree / sec: 69.9 x
TILT speed with POE + max degree / sec .: 69.9 x
Preset positions: 255 x

Recording formats
Encoder: H.265 / H.264 / MJPEG
Resolution 3840 x 2160: Yes, 29.97p, 25p, 23.98p
1920 x 1080 Resolution: Yes, (60p / 50p / 30p / 25p / 24p / 1080i60 / i50)
Resolution 1280 x720: Yes, 60p / 50p / 30p / 25p / 24p
Audio Channels: 2 x

IP section of the product
Main IP connection: LAN RJ45 1000Base-T with POE +
IP connection available: Ethernet
IP Live-Streaming Functionality: Yes
IP camera control functions: Yes, With RM-LP100 or Web-Browser (no app required)
Live-Streaming Bitrates: 1-60 Mbit / S
Live-Streaming Protocols: NDI HX, SRT, RTMP, RTMPS, RTSP
Single Live Streaming: Yes
Live-Streaming Multicast UDP: Yes
Inputs / Outputs Connections: HD-SDI, 3G HDSDI output
Max HD-SDI output format: 1080 / 60p, 50p
HDMI output: Yes
HDMI output format (maximum): 2160 / 30p, 25p
Audio Line Out: Yes, 1 x 3.5mm mini jack
AUX Audio Input: Yes, 1 x 3.5mm mini jack
PTZ RS-232C serial interface input / output: Yes, On 8 PIN mini DIN
Supported PTZ protocols: Serial, PelcoD, IP JVC, IP others

Power and environment specifications
DC power supply: Yes, 12 Volt or 42V, at 57V POE + on LAN
Power consumption: 12W
Operating temperature in degrees Celsius: 0 to 40
Storage temperature in degrees Celsius: -40 to 60

Mechanical information
KG weight: 1.7
Measurements (WxHxD) in mm: W 142 x H 164 x D 169
Equipment: AC / DC adapter, power cable, RS232 cable
Instructions: Yes, User manual + warranty
Remote control: Yes, IR remote control
Ceiling Mount Bracket: Yes
