Vision+ 4KN 12X - W

Name: Vision+ 4KN 12X - W
Brand: Telycam
SKU: Vision+ 4KN 12X - W
Price: 1144.75 EUR
Availability: OutOfStock

Telycam

EAN: 768461174288

Camera PTZ 4K60p 30x, Autotracking, FreeD, NDI|HX, POE+, HDMI 3G-SDI, White

go to the technical sheet

€ 1.144,75

€ 1.064,88 VAT excl.

Available in 14 days

Datasheet: Download

Not sure if this is the right product for you? Talk to a consultant

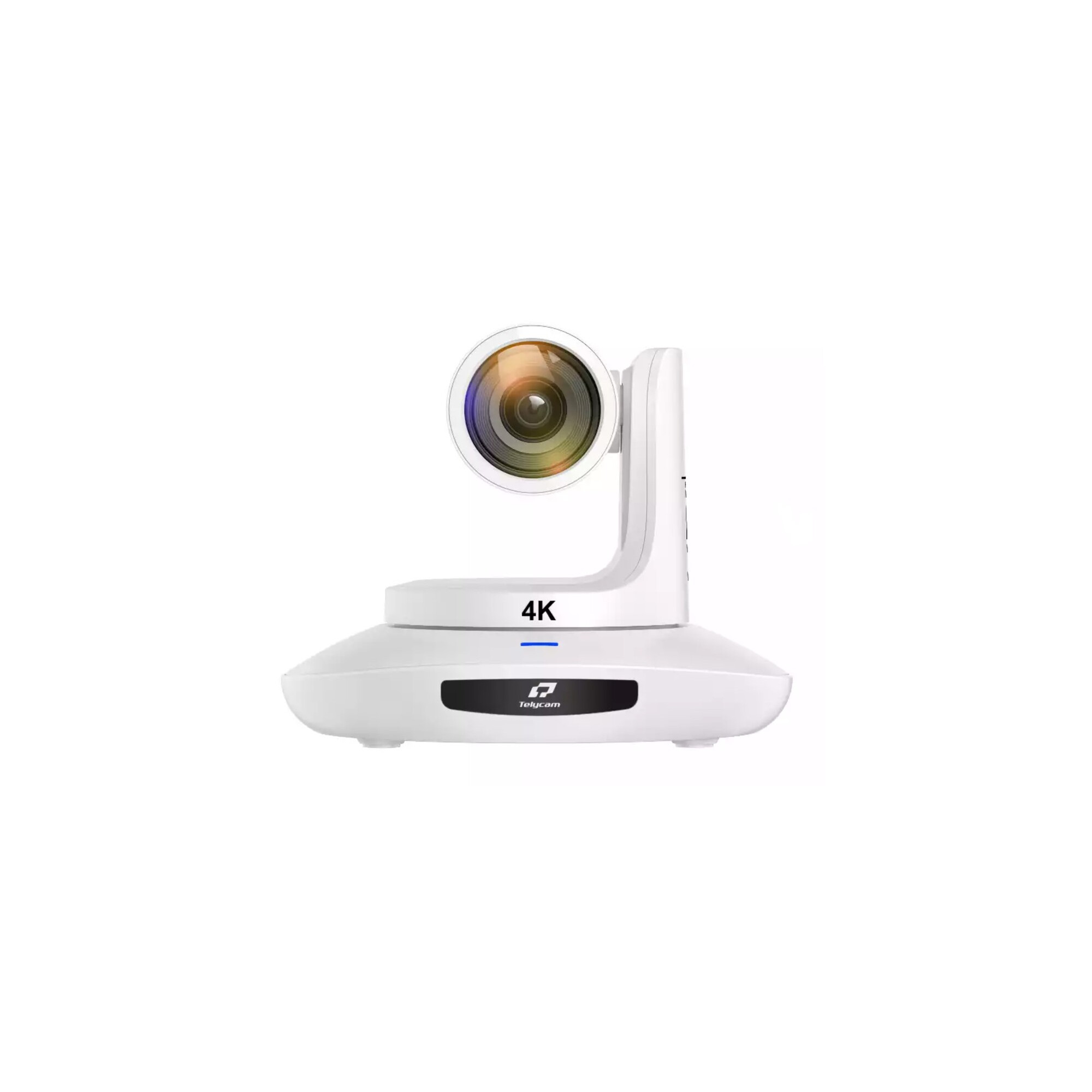

PTZ Camera 4K60p 12x, Autotracking, FreeD, NDI|HX, POE+, HDMI 3G-SDI, Color White.
The Vision+ 4KN 12X is a truly 4K60 12X PTZ camera, integrated with the latest NDI®5.5 SDK, equipped with American most advanced image processing solution, Sony 1/2.8-inch 8.4MP sensor, truly 4K 12x lens with 80-degree FOV, with Telycam's cutting-edge proprietary video camera algorithms, output 4K60 ultra HD sharp image.
It has compact, robust, and sophisticated PTZ mechanical design and accurate driven algorithms, to enable smooth and silent pan, tilt, and zoom movement. NDI®|HX, HDMI2.0, SDI and USB2.0 simultaneously output 4K UHD and Full HD resolution, ideal for professional live streaming applications.

° 4K60 UHD video resolution
° 12x optical zoom
° NDI ®|HX /HDMI2.0/3G-SDI/USB-C video interface
° Embed the Latest NDI®5.5 SDK
° Autotracking Built-in: you don't need any third-party software or device, just turn it on with one click on the WebUI, matching remote control, or Telycam's control keyboard, and you can track the target accurately and smoothly without any outside interference. You can also switch the target, set the target area, or change the target size.
° FreeD Protocol to enables precise PTZF data, empowering systems like Unreal Engine, Brainstorm, ClassX, and Vizrt's Viz Virtual Studio to accurately replicate the camera's movements.
° SRT supported
° Power over Ethernet

PTZ cameras Stands - Hardware - Tools Tripods - Components Live Video Equipment Networking

Telycam

TLC-W10

€ 43,15 VAT included

Available 11 unit in 4 Days

Euromet

PTZ-RIG

€ 146,22 VAT included

Available 27 unit in 4 Days

Telycam

V-Joy+

€ 468,02 VAT included

Available in 14 days

-2.5%

Cartoni

APTZ001

-2.5%

€637,18 € 621,25 VAT included

Available 1 unit in 4 Days

-2.5%

Cartoni

APTZ002

-2.5%

€127,71 € 124,52 VAT included

Available in 14 days

Skaarhoj

QUICK-PAD-V1-BK

€ 1.025,10 VAT included

Available in 14 days

Tp-Link

Switch8 POE+

€ 205,83 VAT included

Available in 34 days

Download

Datasheet

Download (1.37MB)

Camera
Sensor: 1/2.8 inch 8.4MP CMOS Sensor
Video Port: NDI®|HX, HDMI, 3G-SDI, USB Type-C
Audio Port: 3.5mm Line in
Network Port Speed: 1000M
Noise Reduction: 2D&3D
Minimum Illumination: 0.01 lux
White Balance: Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF,50Hz,60Hz
Image Flip: Support
Mirroring: Support
Focus: Auto/Manual
Iris: Auto/Manual
Electronic-shutter: Auto/Manual
Gamma: Support
Backlight Compensation: Support
Tally: Support

Functions
FreeD
Autotracking

Preset
Remote controller: 10; Serial port: 128; Accuracy:0.1°
Pan Rotation Angle: -170° ~+170°
Tilt Rotation Angle: -30° ~+90°
Pan Rotation Speed: 0.1°~120°/s
Tilt Rotation Speed: 0.1°~80°/s
Control Port: RS232(RS485), NDI®|HX, USB Type-C

Video formart
NDI®|HX:
Main stream:3840*2160P15~60;1920*1080P15~60;1280*720P15~60;1024*576P15~60
Sub stream:640*360P30
3G-SDI:1920*1080P60/59.94/50/30/29.97/25/24/23.98; 1920*1080I60/59.94/50;
1280*720P60/59.94/50/30/29.97/25
USB Type-:
NV12:1920*1080P5;1280*720P15;1024*576P25;800*448P30
YUYV:1920*1080P5;1280*720P15;1024*576P25;800*448P30
MJPG:3840*2160P30;1920*1080P60;1280*720P60;1024*576P60;800*448P60
H264/H265:3840*2160P30;1920*1080P60;1280*720P60;1024*576P60;800*448P60
Zoom: 12X Optical Zoom+4X Digital Zoom
Horizontal View Angle: 7.6°(Tele)~80.5°(Wide)

Lens
Focal length:3.4mm~40.3 mm
Iris:F1.8(Wide)~F3.6(Tele)
Shortest Focus Distance
Wide:1m
Tele:1.5m

Video Encoding
Type of encoding: H.264, H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps~61440Kbps
Protocol: NDI®|HX, VISCA over IP, VISCA, RTSP, RTMP, HTTP, ONVIF, TCP/UDP, PELCO-P/D

Power
POE+: Yes
Consumption in amps: 0.75A(AC adapter input)
Consumption via POE = 0.18A(POE+ Power supply)
Daisy Chain: Yes
Input Voltage: DC12V, POE+(IEEE802.3at)

General
Dimension: 220mm×190mm×173mm
Net Weight: 1.5 kg (3.3KBS)
