PT20X-4K-GY-G3

Name: PT20X-4K-GY-G3
Brand: PTZOptics
SKU: PT20X-4K-GY-G3
Price: 2289.28 EUR
Availability: OutOfStock

PTZOptics

EAN: 0840170500036

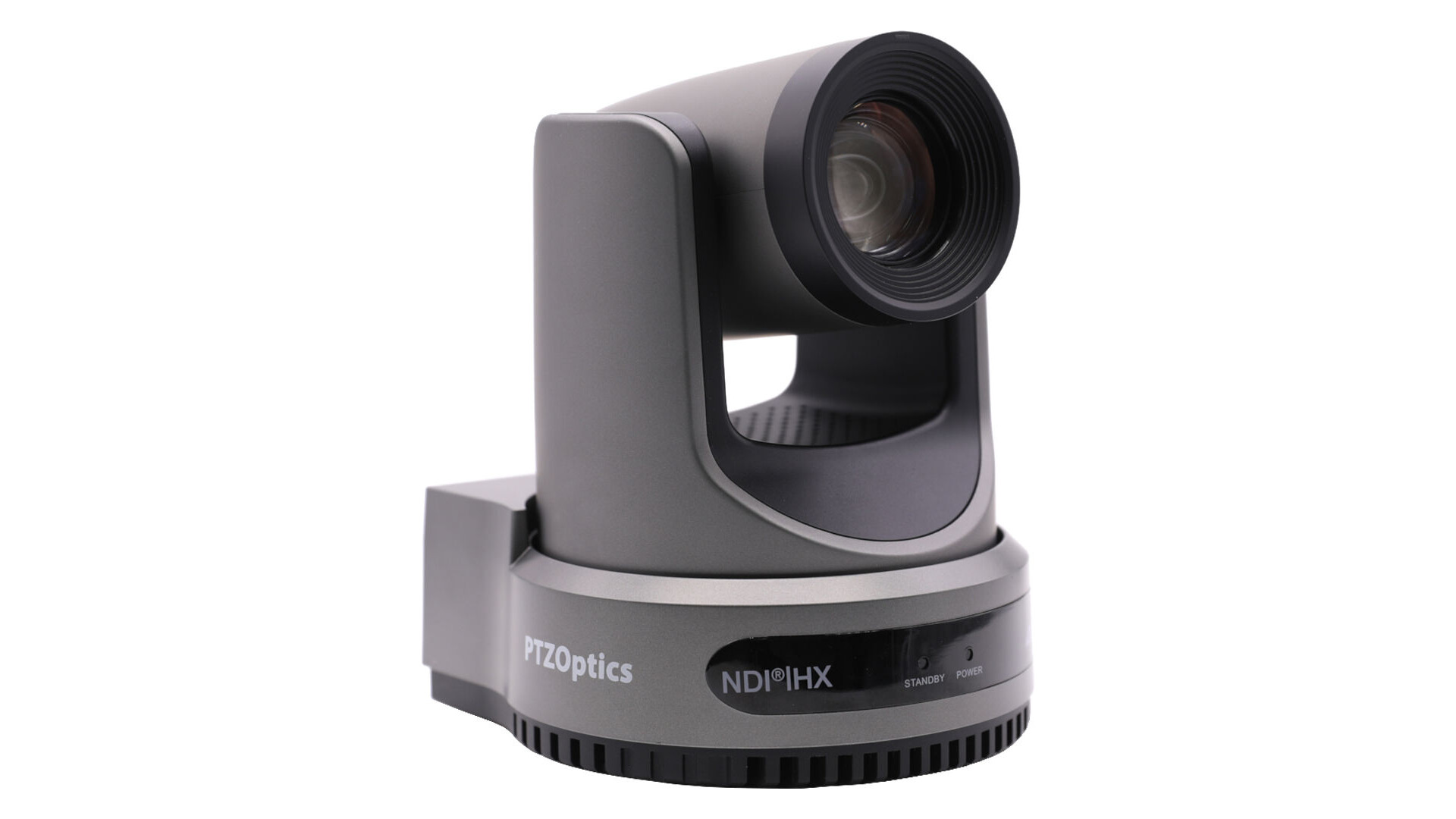

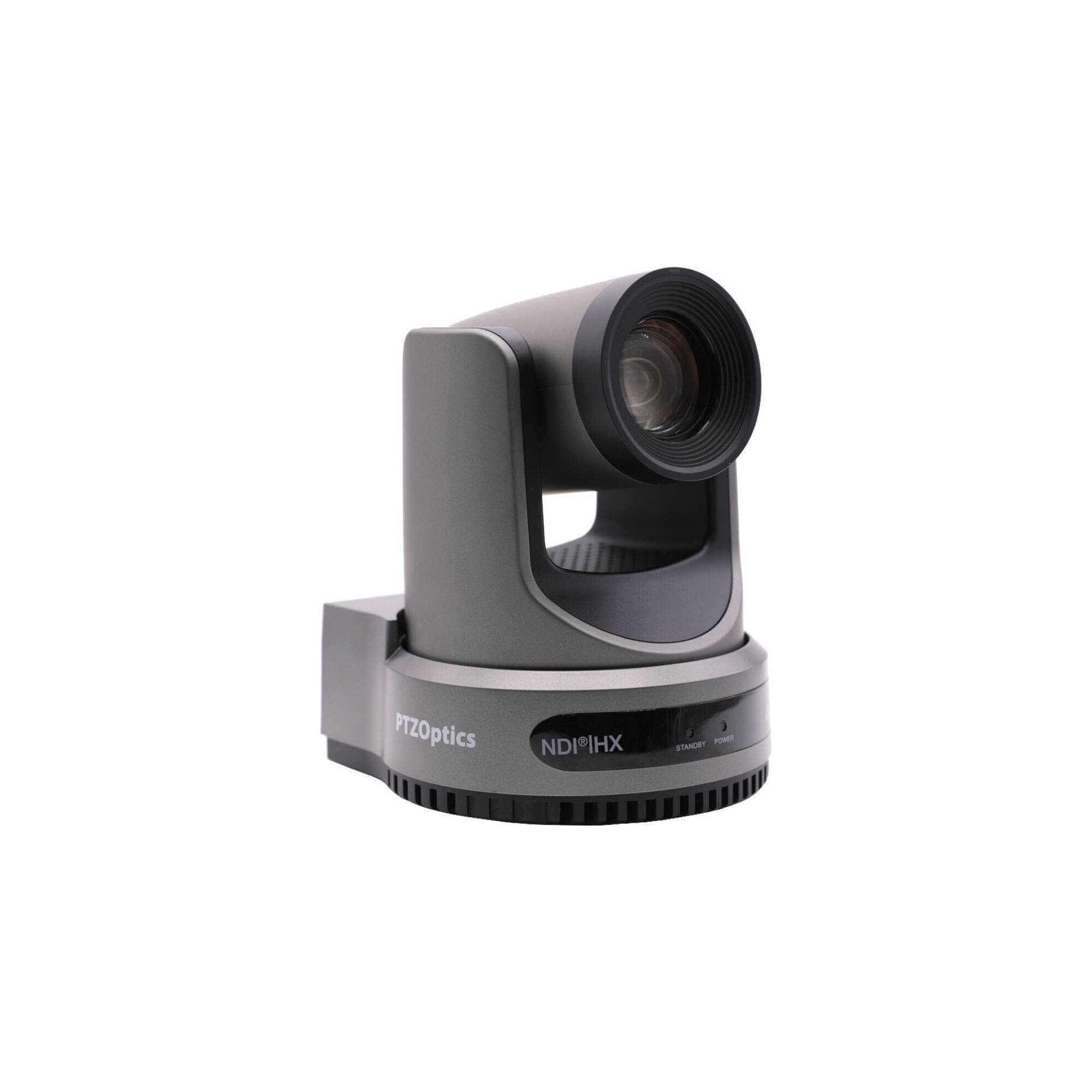

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)

go to the technical sheet

€ 2.289,28

€ 2.129,56 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)

The camera's features include a 1/1.8" 4K CMOS 8.42MP sensor for crisp imagery.
The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with up to 16x digital zoom.
With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers, or by using IR control with the included remote.
It also features a tally light, and it is photo booth capable.
The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols.

The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream, and a 3.5mm audio output.
Power is provided by the included AC adapter or via PoE+ (Power-over-Ethernet) on a supported network.

UHD 4K (3840 x 2160p) video resolutions up to 60 fps
Built-in auto-tracking capabilities
20x optical zoom lens with a 60.7° horizontal field of view
High performance in low-light scenarios with Wide Dynamic Range
3D noise reduction with the latest low-noise CMOS sensor
Serial (RS-232 / RS-485) and IP control (LAN/WAN)
H.264, H.265, and MJPEG video compression when IP streaming
USB 2.0, HDMI 2.0 / 3G-SDI, NDI|HX 3 / IP streaming (SRT, RTSP, RTMP)
PoE+ (Power over Ethernet) or 12 VDC power supply
Built-in tally light
Photo booth capable

PTZ cameras

PTZOptics

PT-JOY-G4

€ 772,66 VAT included

Available 1 unit in 4 Days

ON-AIR

ST500 Wall Mount B

€ 83,07 VAT included

Available 3 unit in 4 Days

PTZOptics

PT-CM-1-WH

€ 88,71 VAT included

Available in 24 days

PTZOptics

PT-SUPERJOY-G1

€ 1.039,07 VAT included

Available in 24 days

PTZOptics

HCM-1-BK

€ 114,10 VAT included

Available 1 unit in 4 Days

Imaging
Image Sensor: 1/1.8"-Type CMOS
Sensor Resolution: Effective: 8.42 Megapixel (3840 x 2160)
IR Cut Filter: No
Built-In ND Filter: None
Focus Control: Autofocus
Manual: Focus

Exposure Control
Shutter Type: Electronic Global Shutter
Shutter Speed: 1/30 to 1/10000 Seconds
Signal-to-Noise Ratio: 55 dB
Minimum Illumination: 0.5 Lux
Flip / Mirror Support: Image Flip, Mirror (Vertical)

Lens
Focal Length: 6.2 to 125mm
Optical Zoom Ratio: 20x
Max Digital Zoom: 16x
Field of View:
° Horizontal: 60.7 to 3.5°
° Vertical: 34.1 to 1.89°
Maximum Aperture: f/1.58 to 3.95

Video Capture
External Recording Modes:
° SDI/BNC
HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 59.94/60.00 fps
° HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 59.94/60.00 fps
Broadcast Outpu: NTSC/PAL
IP Streaming:
H.264, H.265, MJPEG, NDI|HX, RTMP, RTSP, SRT
640 x 360 to 3840 x 2160 to
320 x 240 to 720 x 480 to
IP Multi-Stream Support:
° Simultaneous
H.264, H.265, MJPEG, RTMP, RTSP: 2160p, 1080p, 720p, 480p, 360p

Control
Presets: 255
Move Speed:
° Pan: 1.7 to 100°/sec
° Tilt: 1.7 to 69.9°/sec
Movement Range: Tilt: 120° (-30 to 90°)
Tally Light: Yes
Supported Control Protocols:
IP
IR
NDI
Pelco-D
Pelco-P
RS-232
RS-485
VISCA

Interface
Video I/O:
° 1 x HDMI 2.0 Output
° 1 x BNC (3G-SDI) Output
° 1 x RJ45 (NDI) Output
° 1 x USB-A 2.0 Output
Audio I/O:
° 1 x 1/8" / 3.5 mm TRS Stereo Line Input
° 1 x 1/8" / 3.5 mm TRS Stereo Line Output
Other I/O:
° 1 x D-Sub 8-Pin (RS-232) Control Input
° 1 x D-Sub 8-Pin (RS-232) Control Output
° 1 x Block 2-Pin (RS-485) Control Input/Output
Built-In Speaker: No

Power
PoE Support: PoE+ 802.3at
Power I/O: 1 x DC (12VDC) Input
Power Consumption: Device: 12 VDC at 2 A (12 W)

Environmental
Operating Temperature: 22 to 72°F / -10 to 40°C
Storage Temperature: -40 to 140°F / -40 to 60°C

General
Material of Construction: Aluminum, Plastic
Dimensions : 6.6 x 6.5 x 5.6" / 168.4 x 164.5 x 141.5 mm
Weight: 3.24 lb / 1.47 kg

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
IR Remote Control
12 VDC Power Adapter
USB-A to USB-A Cable
RS-232 Cable
2 x AA Battery
