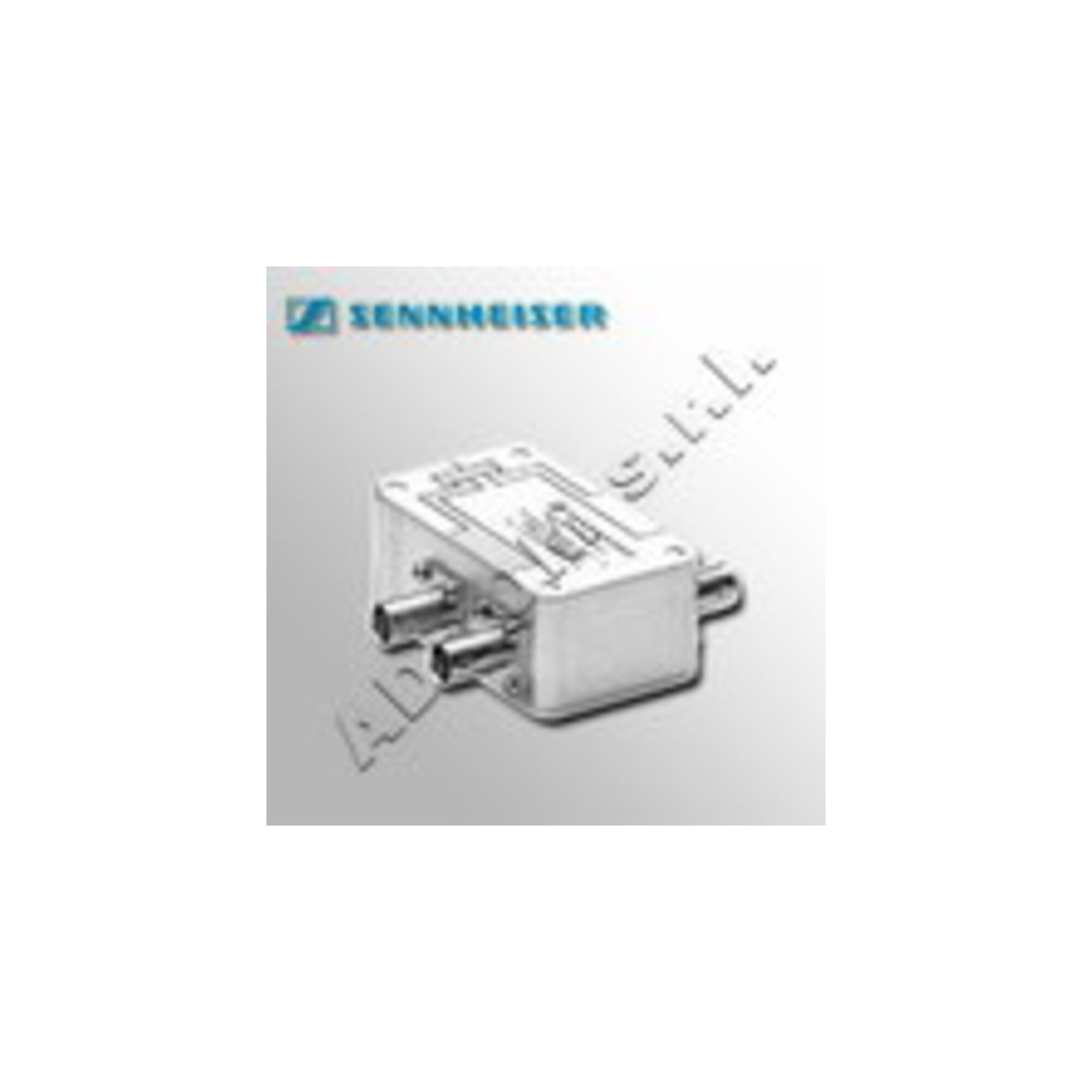

Passive antenna splitter
2 x 1 : 2 (ASP 212) or passive antenna splitter 1 x 1 : 3 (ASP 113)
and passive antenna splitter 1 x 1 : 4 (ASP 114).
DC-coupled for use with antenna boosters. Special version with powering also available for using A 12
antennas with EM 3031/32 receivers.
Frequency range 30-950 MHz
Max. current 0.3 A DC
Attenuation approx.
4 dB (ASP 212)
approx. 6 dB (ASP 113)
approx. 8 dB (ASP 114)
RF connector BNC socket
