URX-P41DK33

URX-P41DK33

Sony

4548736131903
Dual-Channel Camera-Mount Wireless Receiver (K33:566-630 MHz)
go to the technical sheet
  • -2.5%
Save 2.5%
€ 752,36

€ 699,87 VAT excl.

€ 771,66
Available 1 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

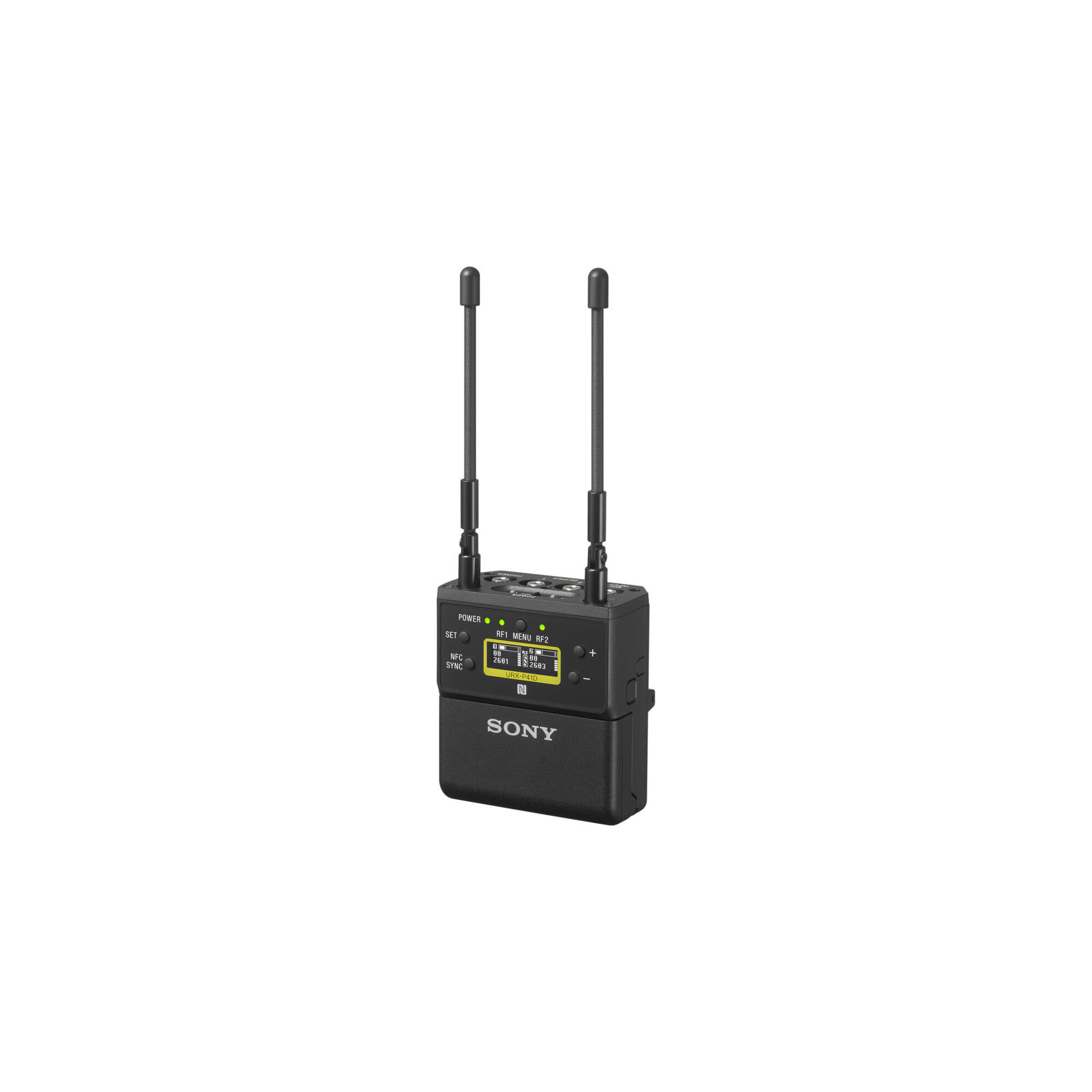

The fourth-generation Sony URX-P41D is a dual-channel, camera-mount wireless receiver that delivers uncompromising audio quality while still being easy to use and fast to set up with no menu diving. It is made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew. The receiver is packed with professional features, including one-button NFC Automatic Channel-Setting mode and Auto-Gain functions, which handle time-consuming frequency setup and mic-level adjustments for you—so you're ready to shoot two people talking simultaneously directly to your camera within seconds.
The URX-P41D offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. It features a lightweight, low-profile design for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras. Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select Sony cameras equipped with a digital Multi Interface Shoe. The URX-P41D is backward-compatible with WL-800, UWP Series, and third-generation UWP-D transmitters.
Professional Features to Speed Up Your Workflow
NFC Automatic Channel-Setting Mode
Press and hold the NFC/Sync button, and the dual receiver scans for the two cleanest RF channels (one for each transmitter). Simply hold the transmitters next to the receiver; it automatically syncs up and you're good to go!
High-Gain Mode for DSLR and Mirrorless Cameras
The High-Gain mode boosts the output level of the receiver, allowing you to turn down the input gain of your DSLR/mirrorless camera to achieve an even quieter signal.
External Mic Input for Additional Wired Microphone
There is an external mic-input connector on the receiver for plugging in an additional wired microphone. It allows for up to four-channel audio recording when using a stereo microphone.
Built-In 4-Channel Mixer
The URX-P41D offers a 4-channel mixer that enables you to control your mic levels (up to four) as well as assign output 1 or/and 2 as needed.
High-Visibility OLED Display for Indoor/Outdoor Use
The URX-P41D features an easy-to-read OLED display. The quick response of the display lets you see the operating conditions clearly and accurately in real time, even in bright sunlight.
Channel Memory Function for Fast Switching Between 4 Transmitters
The channel memory function lets you quickly switch between the groom's lav mic and the wedding guest's interview mic with the press of a button. It also allows for a fast change between up to four mics in corporate presentations or quickly swapping to back-up mics.
Reliable Reception with True Diversity and All-Band Scan
To achieve stable audio, the URX-P41D employs true-diversity technology with two antennas and two independent receiver sections within the unit. Both RF signals are compared and the stronger signal is automatically selected for output—reducing dropouts to a minimum (True diversity is available only in single-channel mode. In dual-channel mode, the receiver relies on antenna diversity).
The angle of the two antennas can be adjusted to further prevent signal dropouts.
Great for videographers traveling to different cities, the All-Band scanning function scans the entire spectrum of the receiver to give you the two best frequencies at your shooting location. The system offers a 72 MHz bandwidth with 2772 UHF frequencies.
High-Quality Sound with Digital Audio Processing
Unlike with traditional analog wireless systems, The URX-P41D supplements its proven analog UHF transmission technology with a proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that's intelligible and nuanced.
A Compact Build, Ready for the Camera
The URX-P41D features a robust, all-metal construction well suited for tough operating conditions.
Using the included shoemount adapter, the URX-P41D easily mounts on your camera, while adding minimal weight to your rig. Cables are included to connect to cameras equipped with either a 3.5mm or an XLR audio inputs.
Direct Digital Audio via SMAD-P5 MI Shoe Adapter

In the Box

Sony URX-P41D Dual-Channel Camera-Mount Wireless Receiver (UC14: 470 to 542 MHz)
Belt Clip
Shoemount Adapter
2 x XLR to Locking 3.5mm Output Cables
3.5mm to Locking 3.5mm Cable

Sony URXP41D/14 Specs
Wireless Technology Analog UHF
Number of RF Channel Frequencies 2772
Diversity True Diversity
RF Frequency Band 566-630 MHz
RF Bandwidth 72 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 330'' / 100.6 m
Max Transmitters per Band 16
Latency 0.24 to 0.35 ms
Modulation FM
SNR 96 dB
THD <0.9 %
Receiver
Receiver Type Camera-Mount
Mounting Options Belt Clip, Shoe-Mount (with Included Hardware)
Antenna 2 x 1/4 Wave External, Fixed (Top-Mount)
Number of Audio Channels 2
Audio I/O 2 x 1/8" / 3.5 mm TRS Female Balanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable)
Gain Range -12 to +12 dB (3 dB Steps)
Audio Output Level -60 to -20 dBV
Frequency Response 23 Hz to 18 kHz
USB/Lightning Connectivity 1 x USB Type-C Female (Bus Power)
Standalone Audio Interface Capable No
Power Requirements Battery, Bus Power (USB)
Battery Type 2 x AA (Not Included)
Approx. Battery Life 4.5 Hours (Alkaline)
DC Input Power 5 VDC (USB Bus Power)
Display & Indicators OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Peak, RF Level)
Housing Metal
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Dimensions 2.5 x 2.8 x 1.4" / 63 x 70 x 35 mm (without Antennas)
Weight 5.6 oz / 159 g (without Batteries)
