Sony

4548736157804
Sony Wireless Microphone with multi-interface shoe,492.1'/150m (20 Hz to 20 kHz)
go to the technical sheet
₦ 624,359.00

₦ 580,799.00 VAT excl.

Available 2 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant
Sony Wireless Microphone System with Multi Interface Shoe, 492.1' / 150 m (20 Hz to 20 kHz)

° Single-channel wireless microphone for quality digital recordings
The ECM-W3S includes a microphone-transmitter unit with a high signal-to-noise ratio and a single-channel receiver.
The transmitter and receiver process audio digitally and transmit it wirelessly, for clear voice capture and recording with reduced noise.

° High quality digital audio recording
High signal-to-noise ratio (S/N) microphone units are integrated into the microphone transmitter, for clear voice recording with reduced noise.

° High quality digital transmission
Connecting the single-channel receiver to a Sony camera that supports Multi Interface Shoe, such as a™ series interchangeable lens digital cameras or vlog cameras, allows you to record the digital audio signal output from the receiver directly from the camera body, for Quality sound recording with minimal noise.

° Noise reduction filter functions
The microphone includes a noise-cancelling filter with digital signal processing and a low-pass filter that reduces low-frequency noise.
Less noise removal is required in post-production for greater efficiency.

° Compatible with Multi Interface Shoe
You can easily attach the receiver to a Sony camera that supports Multi Interface Shoe, such as one of the a™ series interchangeable lens digital cameras or vlog cameras, without cables, allowing instant sound capture and avoiding interference with the high-speed LCD monitor. variable angle even when opened horizontally, for greater freedom and mobility when shooting.

° Microphone audio input/output
A 3.5mm mini-jack (monaural) is provided as the input terminal for the external microphone on the microphone side, while a 3.5mm mini-jack (stereo) on the receiver side serves as the terminal for the audio output.
In addition to audio capture via a compatible stereo lavalier microphone, you can also use the output to devices not equipped with the Multi Interface (MI) Shoe.

° USB digital audio output
Digital audio (48 kHz/24 bit) can be output from the receiver via USB cable to a smartphone or PC, or to a compatible device with a USB audio input for recording.

° Compact charging case
A compact charging case is included in the package, so you can continue recording without worrying about running out of battery.
The microphone-transmitter unit has a battery life of approximately 6 hours on a full charge.

° Windscreen (included)
Use the included wind shield to reduce noise when the microphone is exposed to wind or heavy breathing.
This way, you can record voice clearly and smoothly even when you are outdoors.


System
Wireless Technology: Analog/Digital Hybrid
Number of RF Channel Frequencies: 1
Included Transmitters: 1 x Clip-On with Microphone
Diversity: Non-Diversity
RF Channel Scanning: Auto-Scan
Max Operating Range: 492.1'' / 150 m
Max Transmitters per Band: 1
Built-In Recorder: No
Timecode Support: No
Mobile App Compatible: No
*As of September, 2023: Check with manufacturer for the most up-to-date compatibility
Bluetooth: 5.3
Bluetooth Operating Distance: 492.1'' / 150 m

Receiver
Receiver Type: Camera-Mount
Mounting Options: Shoe-Mount (with Included Hardware)
Antenna: Internal
Number of Audio Channels: 2
Audio I/O:
- 1 x 1/8" / 3.5 mm TRS Unbalanced Output
- 1 x Intelligent Hot Shoe Output
Frequency Response: 20 Hz to 20 kHz
Network I/O: None
USB/Lightning Connectivity: USB-C Female
Power Requirements: Battery
Battery Type: 1 x Built-In Rechargeable
Display & Indicators: LED
Operating Temperature: 32 to 104°F / 0 to 40°C
Dimensions: 1.3 x 1.1 x 2" / 32 x 29 x 50 mm
Weight: 0.9 oz / 25 g

Transmitter
Transmitter Type: Clip-On with Microphone
RF Output Power: Not Specified by Manufacturer
Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Input
Auto-Level Control: Yes
Frequency Response: 20 Hz to 20 kHz
Sync Method: Bluetooth
Antenna: Internal
Power Requirements: Battery
Battery Type: 1 x Built-In Rechargeable
Approx. Battery Life: 6 Hour
USB/Lightning I/O: None
Display & Indicators: LED
Operating Temperature: 32 to 104°F / 0 to 40°C
Dimensions: 1 x 2.1 x 0.8" / 25 x 53.5 x 20.5 mm
Weight: 0.6 oz / 17 g

Microphone
Microphone Type: Integrated
Sound Field: Mono
Polar Pattern: Omnidirectional
Frequency Range: 20 Hz to 20 kHz
Maximum SPL: 120 dB SPL
Sensitivity: -20 dBFS at 1 kHz
Operating Temperature: 32 to 104°F / 0 to 40°C

Charging Case
Battery Chemistry: Lithium-Ion
Capacity: Not Specified by Manufacturer
Charging Interface: USB-C
Dimensions: 2.7 x 2.6 x 1.6" / 68.5 x 65.5 x 41.5 mm
Weight: 3.2 oz / 90 g

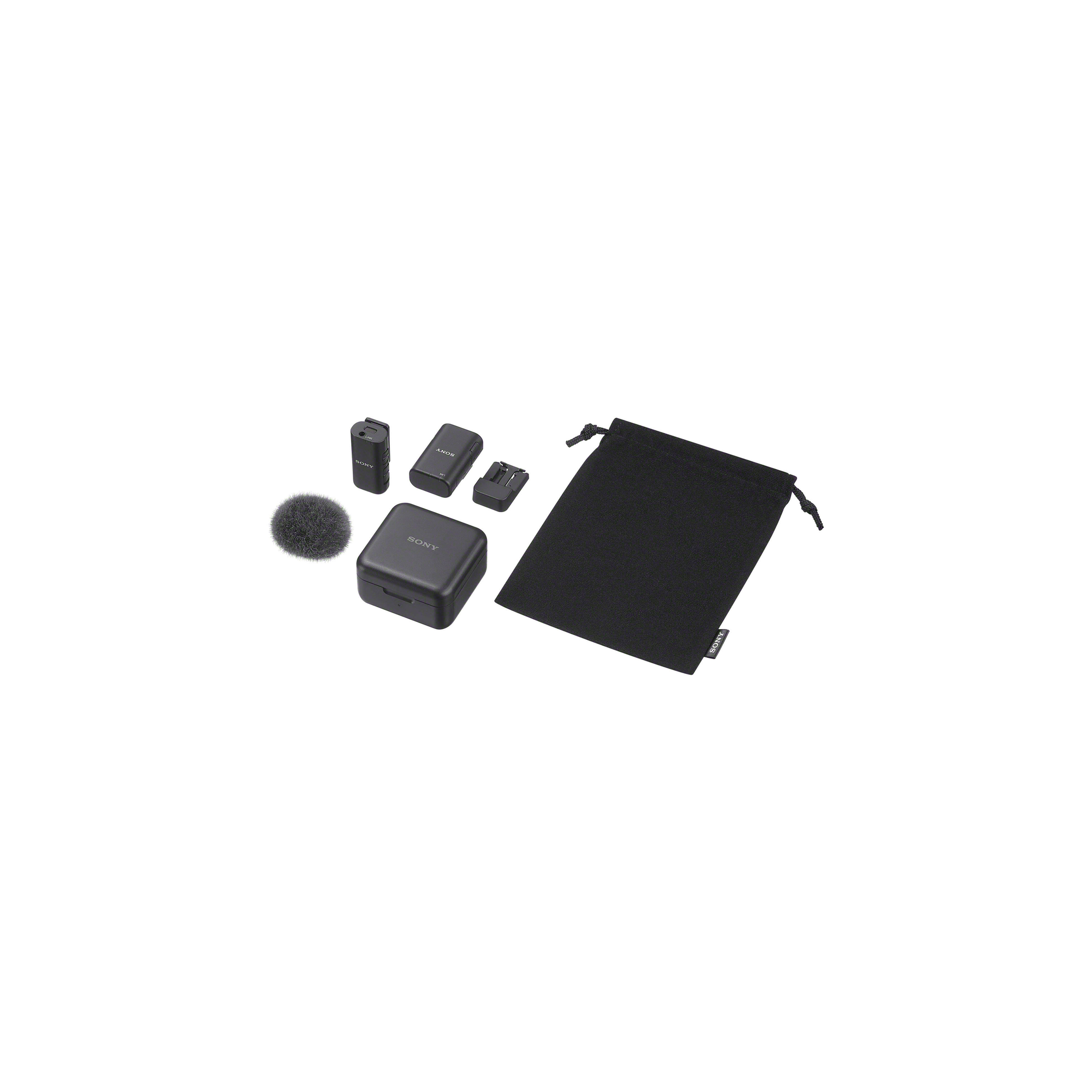

1x Microphone
1x Receiver
1x Windshield
1x Protective holder for the connector
1x Case and charging case
