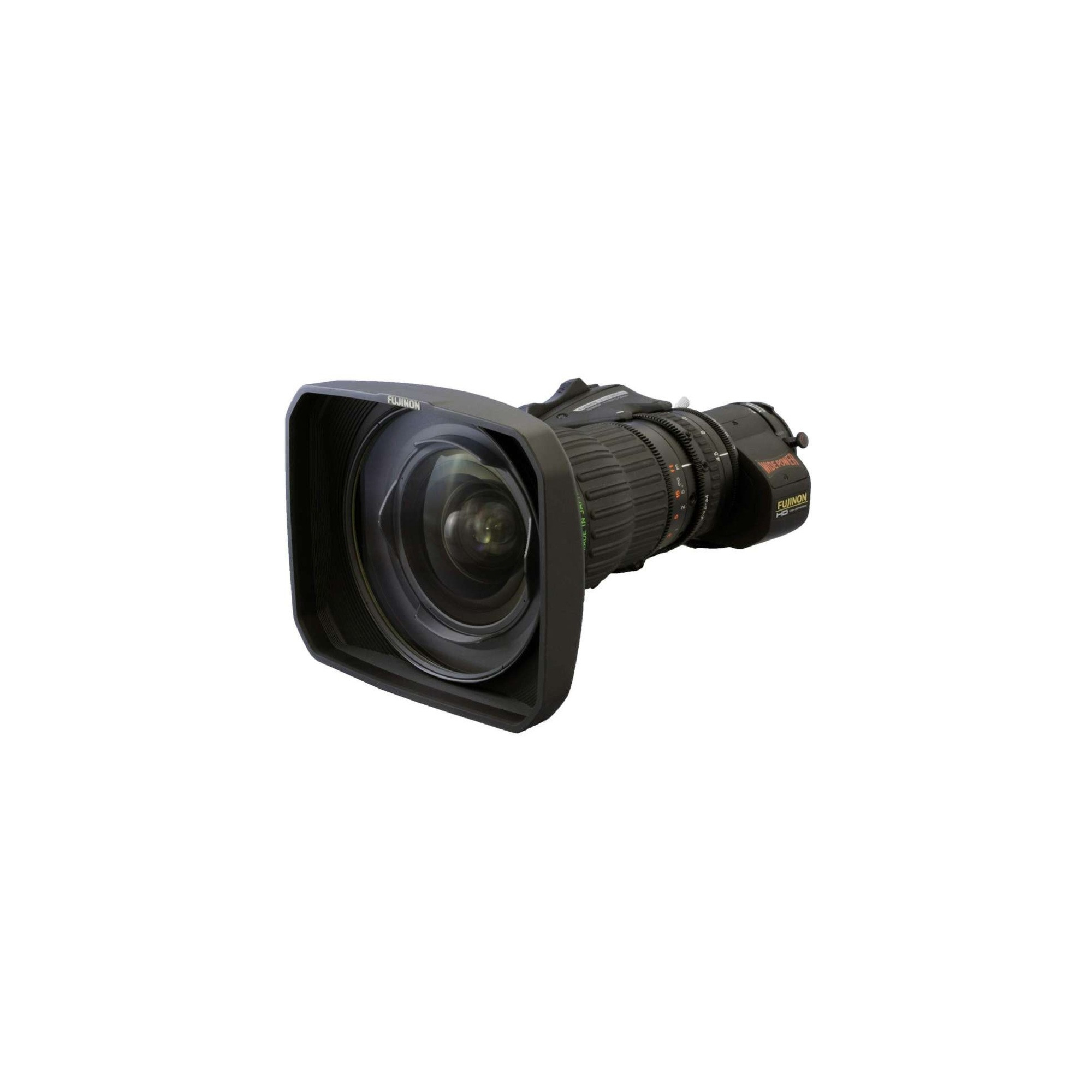

ZA12x4.5BERD-S10

The ZA12x4.5BERD-S10 with Servo for Focus and Zoom is a 4.5-54mm lens, designed to provide 2/3" cameras with an ultra wide to telephoto angle-of-view. The lens has a zoom ratio of 12x, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 4.5-41mm and stops down to f/2.4 at 54mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.

Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.

Specifications
==========================
Sensor Compatibility : 2/3" (16:9)
Built mount: B4
Focal Length : 4.5 to 54mm
Built-In Extender : 2x
Zoom Ratio: 12x
Angle of View 16:9
° Wide: 93.63 x 61.83° (H x V)
° Tele: 10.15 x 5.72° (H x V)
Maximum Aperture : f/1.8 to 2.4 (T0 to 2.9)
Filter Thread : M127 x 0.75 mm
Minimum Focus Distance From: 1.93'' / 0.59 m
Minimum Object Distance : 0.98'' / 0.3 m
Dimensions : 3.7 x 9.3" / 95.0 x 237.5 mm (diameter x L) (without lens hood)
Weight : 4.2 lb / 1.9 kg (without lens hood)
