Zoom lens 2/3" HD Broadcast - 12x - - Inner Focus, QuickZoom and Zoom Limit
go to the technical sheet
€ 51.126,81

€ 47.559,82 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

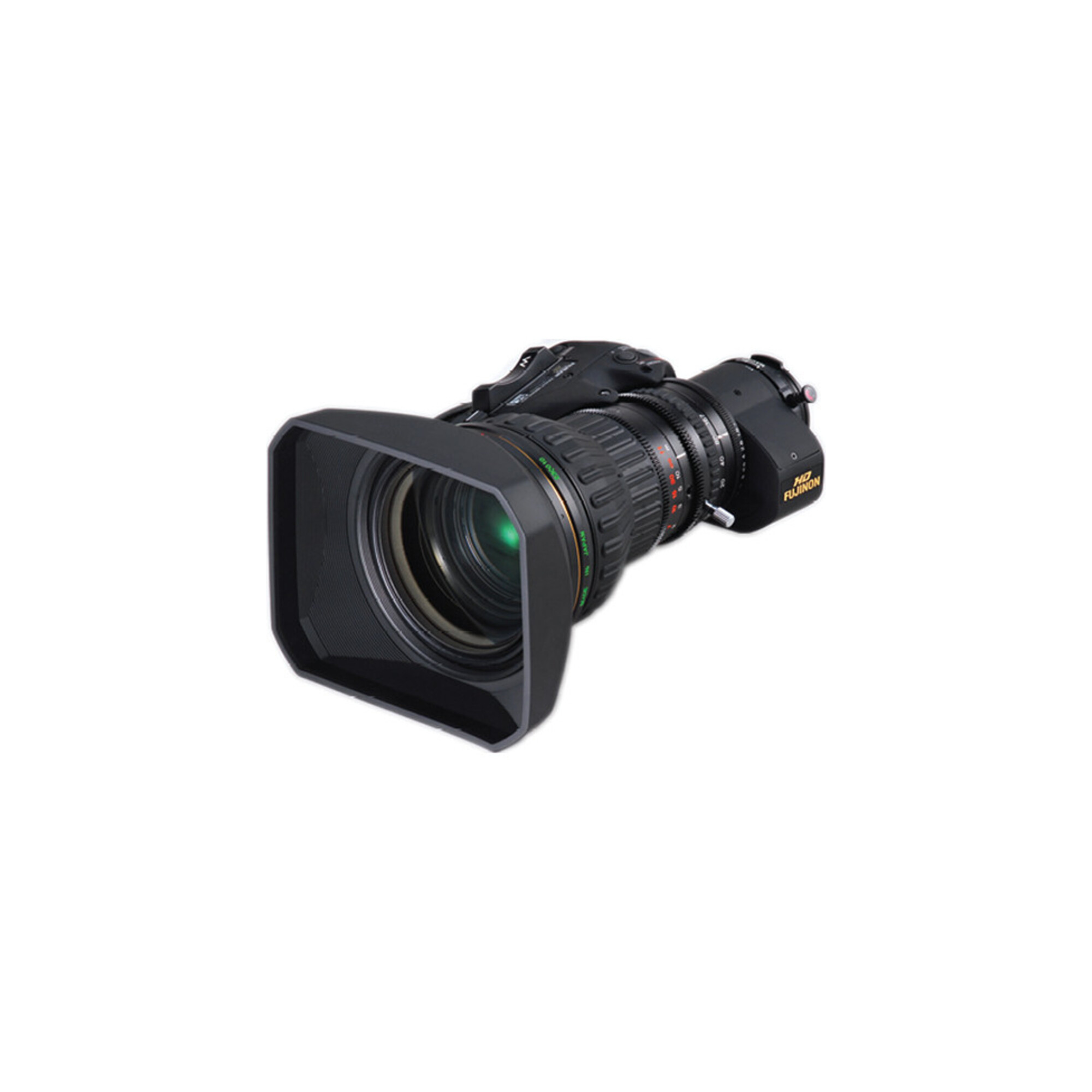

The ZA12x4.5BRD-S6 with Servo for Focus and Zoom is a 4.5-54mm lens, designed to provide 2/3" cameras with an ultra wide to telephoto angle-of-view. The lens has a zoom ratio of 12x. The maximum aperture is a fast f/1.8 at 4.5-41mm and stops down to f/2.4 at 54mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.

4.5-54mm wide to telephoto 12x zoom lens for 2/3" cameras

Fast f/1.8 max aperture at 4.5-41mm and f/2.4 at 54mm

Digital servo for focus and zoom and full studio control via RS-232

Innerfocus, QuickZoom and Zoom Limit

Focused Intelligent Network Diagnosis

Format 2.3" sensors
Focal Length 4.5 - 54 mm
Zoom Ratio 12x
Extender N/A
Maximum Aperture 4.5 - 41 mm: f/1.8 (T2.0)
54 mm: f/2.4 (T2.9)
M.O.D. From Image Plane 1.93'' (0.59 m)
M.O.D. from Front of Lens 0.98'' (0.3 m)
Object Dimensions at M.O.D. (16:9) 4.5 mm: 29.8 x 16.73" (757 x 425 mm)
54 mm: 2.32 x 1.3" (59 x 33 mm)
Angular Field of View (16:9) 4.5 mm: 93° 38'' x 61° 50''
54 mm: 10° 09'' x 5° 43''
Filter Thread M127 x 0.75
Note: filter attaches to the lens hood
Dimensions 3.74 x 9.35" (95 x 237.5 mm)
Note: without lens hood
Weight 4.19 lb (1.9 kg)
Note: without lens hood
Packaging Info
Package Weight 8.15 lb
Box Dimensions (LxWxH) 15.2 x 12.0 x 10.7"
