FFC10-C
TELECFE
Band-pass resonant cavity filter 10KW 87.5÷108 MHz
go to the technical sheet
Manufacturer: go to website

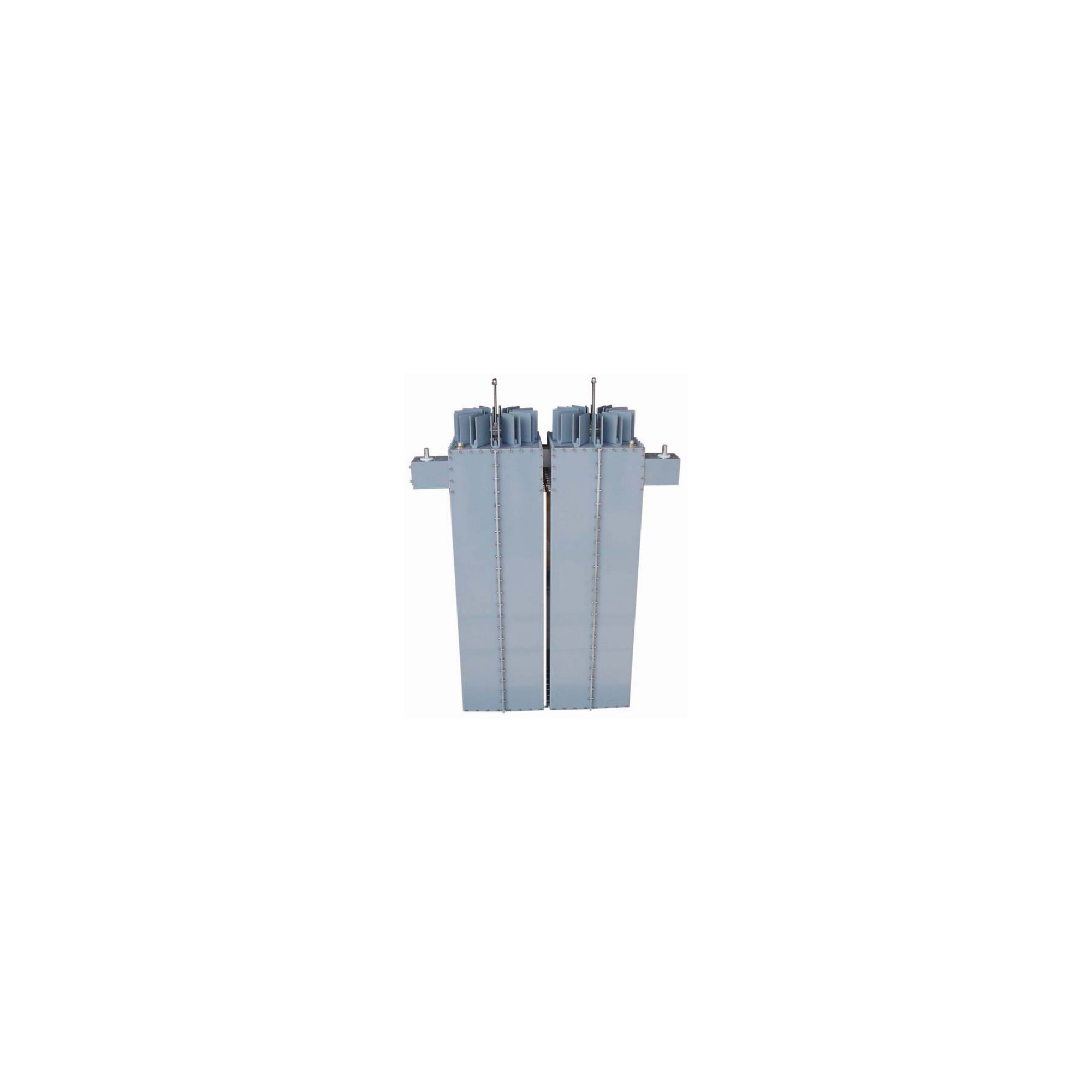

Band-pass resonant cavity filter 10KW 87.5÷108 MHz able to isolate the transmission system in order to eliminate spurious emissions. Connectors 1+5/8” (option) 3+1/8".
Features
° Distortion - Free Transmission
° Standard configuration of 2 cavities
° Special configuration 3 and 4 cavities
° Low loss, high isolation
° Forced Air Cooling
Features
° Distortion - Free Transmission
° Standard configuration of 2 cavities
° Special configuration 3 and 4 cavities
° Low loss, high isolation
° Forced Air Cooling
TYPICAL SPECIFICATIONS
Impedance : 50 ohm
Frequency Range : 87.5-108 MHz
VSWR ± 150 KHz : 1.1:1 max
Insertion Loss : 0.15 dB
Return Loss ± 150 KHz : -26 dB
Rejection per customer’s requirements - (Typical ± 1MHz it’s even to –14dB)
Connectors : 1+5/8” Input – Output (Option 3+1/8” )
Max Power : 10 KW
Working Temperature : -20°C ÷ +50°C
Colour : Enamel Gray Ral 7001
Materials : Aluminium, Brass, Copper, PTFE, Stainless Steel,
Silvering : (min 12µm thickness)
Dimensions : 1400(Max size)×700×335 mm (55.1(Max size)×27.5×13.2 inch) (H×L×W)
Net Weight : 46 Kg (double cavity)
1x Band-pass cavity filter 10KW 87.5÷108 MHz
