FFC08I

TYPICAL SPECIFICATIONS
Model FFC08I-FFC2I-FFC2I/78
Impedance : 50 Ohm
Frequency Range : 87.5-108 MHz
VSWR : ±150 KHz 1.1:1 max
Insertion Loss at 0f : 0.28 dB Max
Return Loss : ±150Khz = -26 dB
Rejection per customer’s requirements : (Typical ± 1MHz it’s even to –14dB)
Connectors : FFC08I - N Input-Output FFC2I - 7/16” Input-Output FFC2I/78 - 7/8” EIA Input-Output
Max Power : 2KW (FFC2I-FFC2I/78) 800 Watts (FFCI08)
Working Temperature : - 20°C ÷ +50°C
Colour : Enamel gray ral 7001
Materials Aluminium, Brass, Copper, PTFE, Stainless Steel, Silvering (min 12µm thickness)
Dimensions : 1300(Max size)×410×235 mm (51.2(Max size)×16.1×9.2 inch) (H×L×W)
Weight : 20 Kg (double cavity)

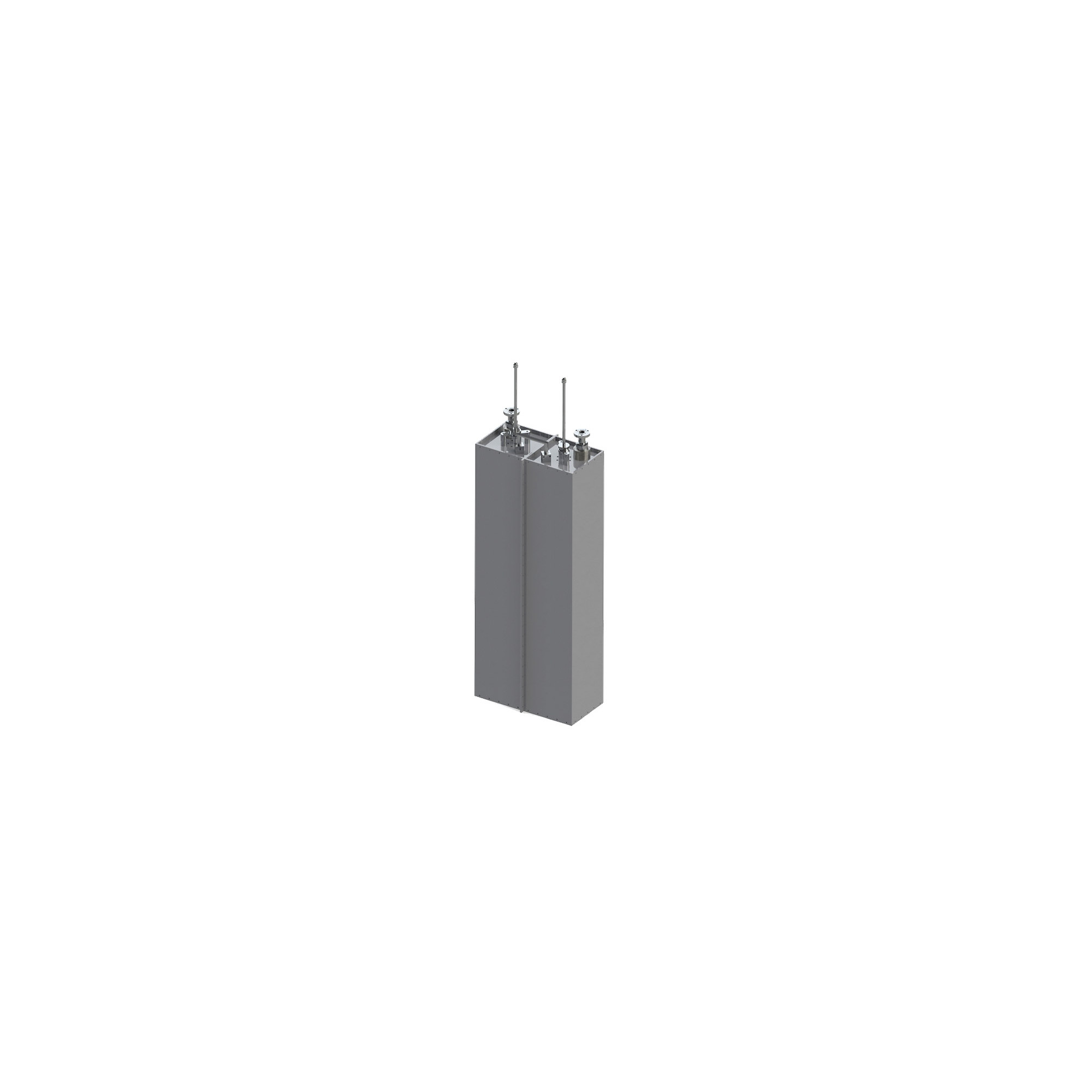

1x Band-pass cavity filter 2KW 87.5÷108 MHz
