FFC30

TYPICAL SPECIFICATIONS

Impedance : 50 ohm
Frequency Range : 87.5-108 MHz
VSWR : 150 KHz : 1.1:1 max

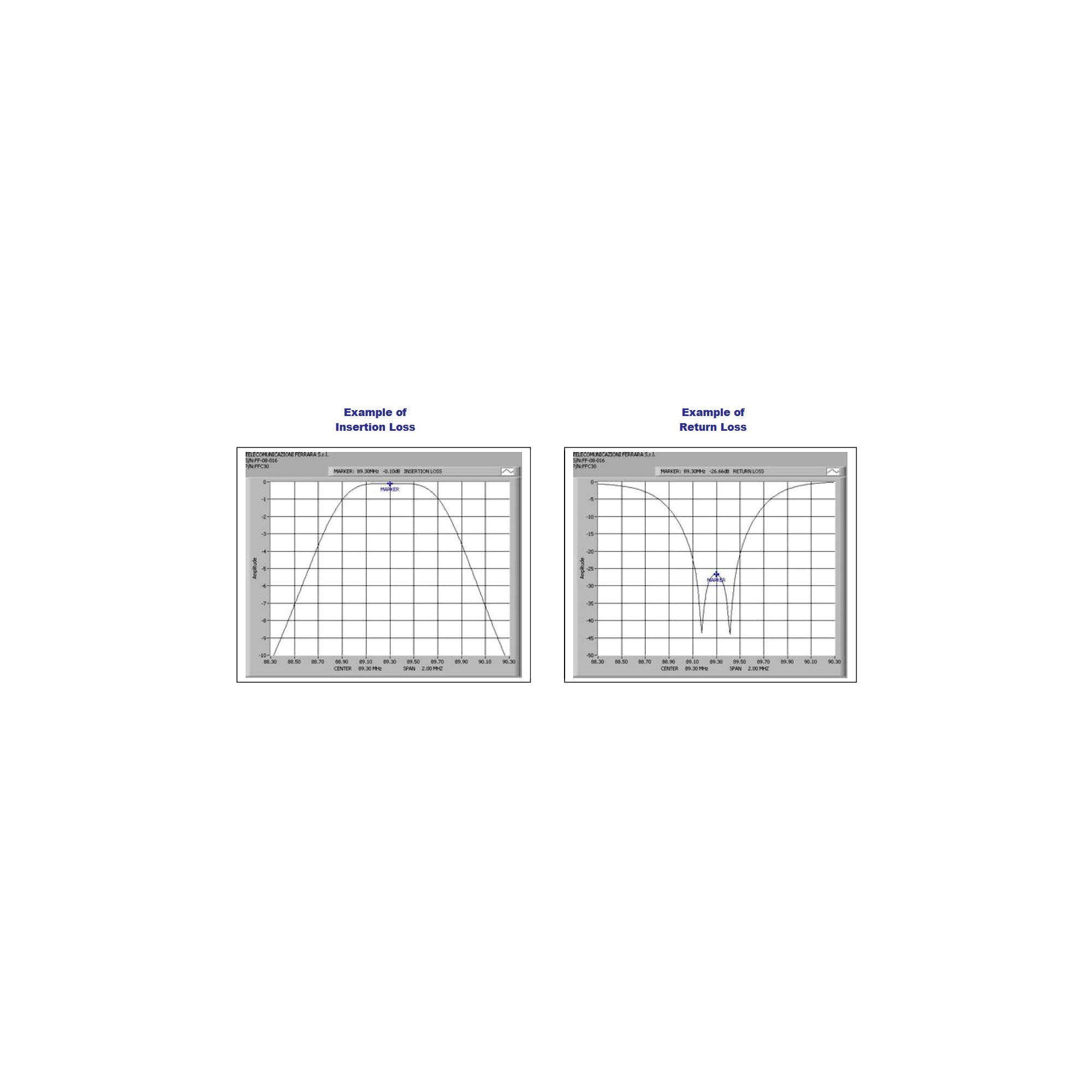

Insertion Loss : <= 0.1 dB
Return Loss 150 KHz : < -26 dB
Rejection per customer’s requirements : (Typical <1MHz it''s even to -14dB)
Connectors : 3+1/8" Input - Output
Max Power : 35 KW
Working Temperature : -20°C - +50°C
Colour Enamel Gray Ral 7001
Materials Aluminium, Brass, Copper, PTFE, Stainless Steel,
Silvering (min. 12um thickness)
Dimensions 1500(Max size) 1150x500 mm (59.0(Max size) 45.3 x 19.7 inch) (H x L x W)
Net Weight : 58 Kg (double cavity)

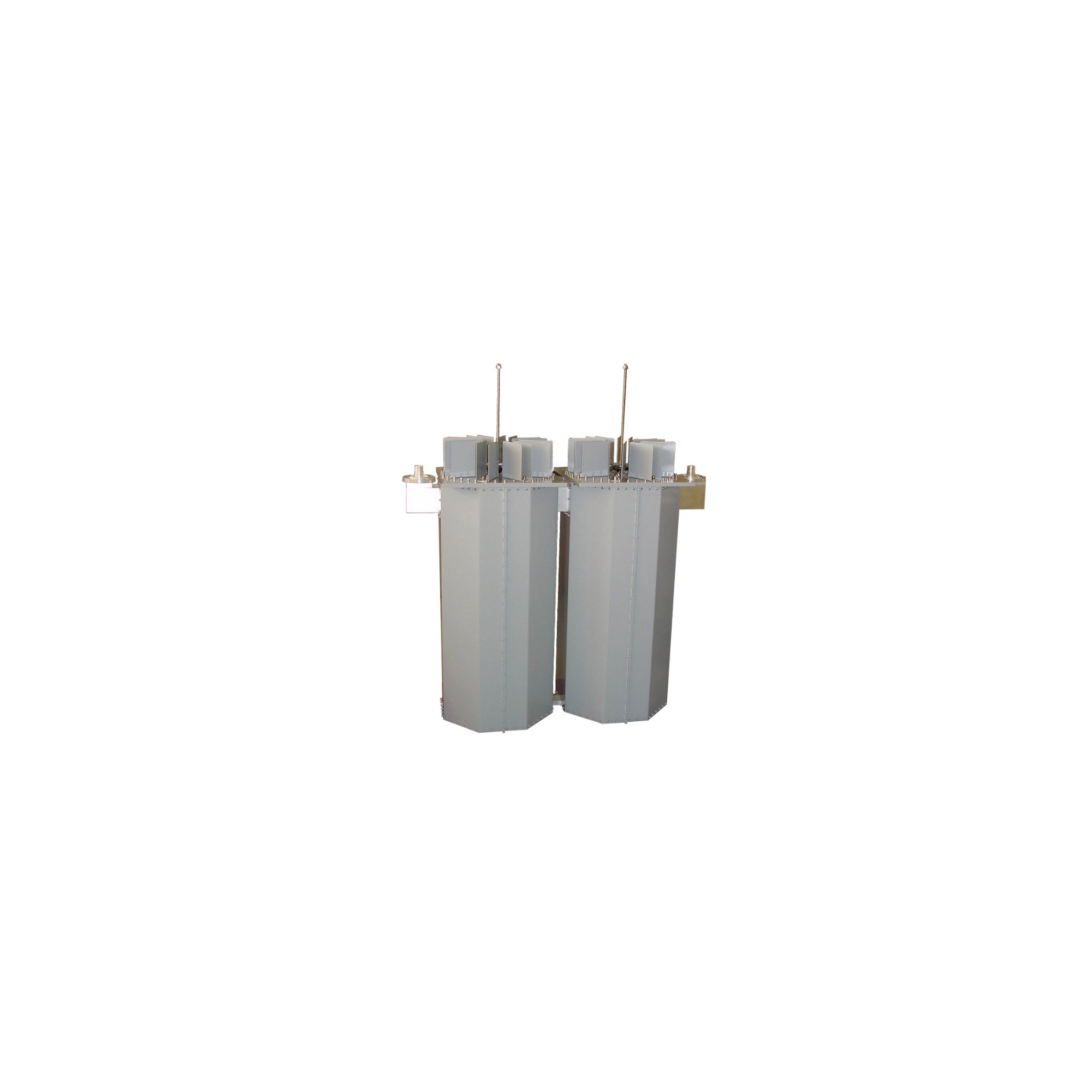

1x Band-pass cavity filter 35KW 87.5÷108 MHz
