AW-UB10E

Name: AW-UB10E
Brand: Panasonic
SKU: AW-UB10E
Price: 3600963 NGN
Availability: InStock

Panasonic

4K camera with 3G-SDI OUT interface, HDMI Type A, LAN terminal, 4/3" CMOS

go to the technical sheet

₦ 3,600,963.00

₦ 3,349,733.20 VAT excl.

Available 2 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

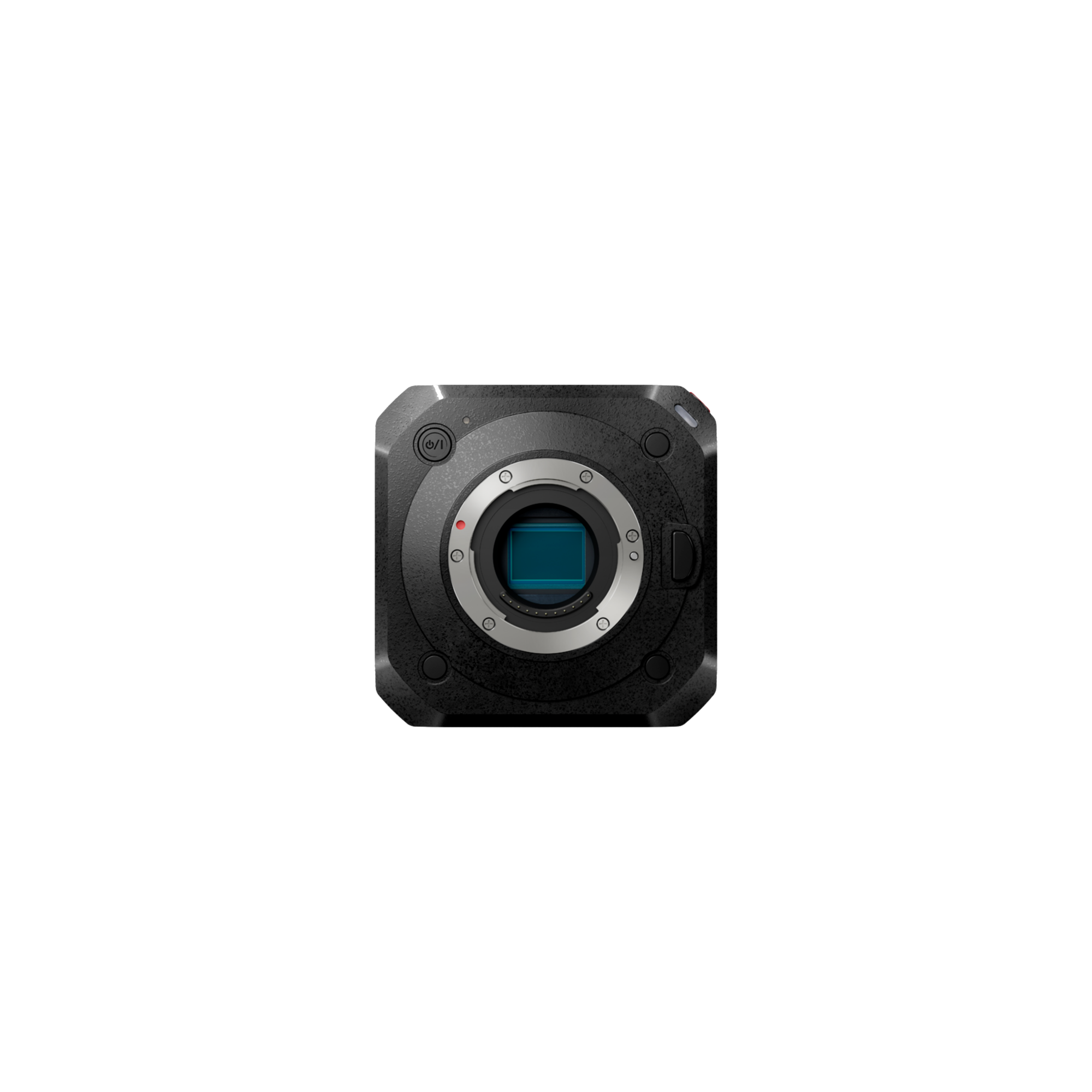

Panasonic 4K camera with 3G-SDI OUT interface, HDMI Type A, LAN terminal, 4/3" CMOS

Box-style camera AW-UB10 is based on LUMIX digital interchangeable lens camera technology and equipped with a host of new functions designed to streamline video production workflows.
The UB10 is the 4K multi-purpose camera supporting all common IP control protocols used in Panasonic's remote camera systems.
The box-style 4K multi-purpose cameras can support rich, versatile image capture and are incredibly easy to operate in the field, enabling more creative video production.
The UB10 features a 10.2-million pixel full-frame sensor.
It feature real-time recognition autofocus technology, enabling the cameras to automatically identify the subject and keep them in focus.
UB10 camera features the 3G-SDI OUT, HDMI Type A, LAN terminal, TC IN/OUT, GENLOCK IN, and USB Type-C input/output interfaces.
The LAN terminal is Power of Ethernet (PoE+) compatible, with video transmission, control, and power delivered via a single cable - further reducing complexity and clutter.
The camera is ideal for a variety of applications from corporate to broadcasting and live entertainment.

Type: Interchangeable lens digital camera
Lens mount: Micro four-thirds mount
Recording media: SD Memory Card, SDHC Memory Card,and SDXC Memory Card for dual-slot recording Slots 1 and 2 compatible with UHS-I/UHS-II UHS Speed Class 3 and UHS-II Video Speed Class 90
Image Sensor: Four-thirds MOS sensor (Total approx. 11.90 megapixels, primary color filter)
Effective pixels: Approx. 10.30 megapixels
Latitude: V-Log L: 13 stops
Video format: MP4: H.264/MPEG-4 AVC and H.265/HEVC | MOV: H.264/MPEG-4 AVC and H.265/HEVC
Photo style: PTZ camera (UE160), Standard, Vivid, Natural, Flat, Landscape, Portrait, Cine-like D2, Cine-like V2, 709-like, V-LOG, 2100-like (HLG) and My Photo Style 1-10
Timecode display: ON / OFF supported
HDMI timecode output: ON / OFF supported
SDI timecode output: ON / OFF supported
Genlock input: ON / OFF
Power supply:
- When using Lithium-ion battery pack: 7.28 V
- When using included AC adapter: 12 V/3 A
- When using PoE+ compatible hub: IEEE802.3at compliant
Supported protocols: RTP / RTSP
Dimensions: Approx. 93.0 mm x 93.0 mm x 78.0 mm (3-21/32 inches x 3-21/32 inches x 3-5/64 inches)
Weight: Approx. 545 g (1.20 lb) (body only, without lens cap)
