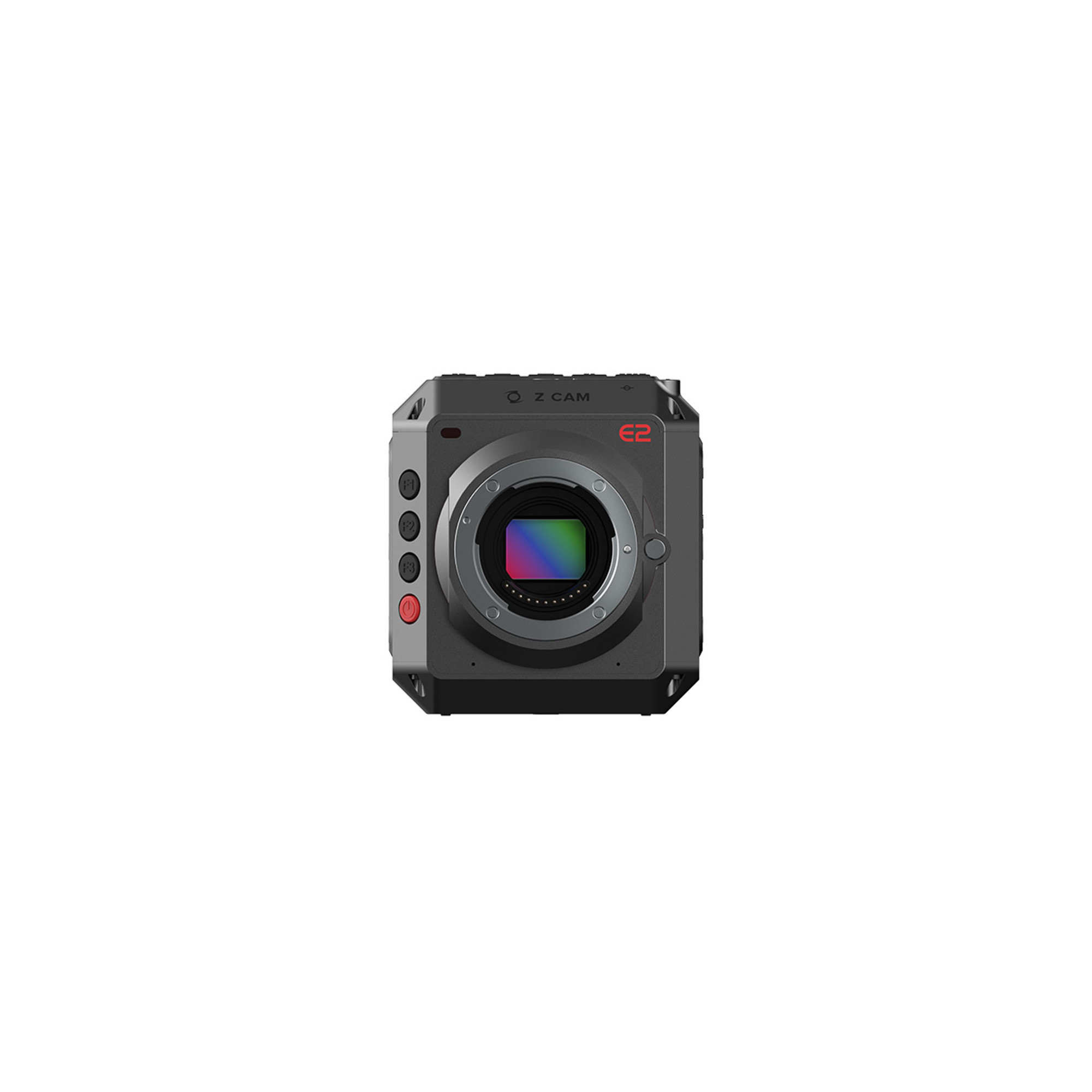

Z-CAM E2
Z-CAM E2
Previous keyboard_arrow_left
Next keyboard_arrow_right
Z-CAM E2
Z-CAM E2

Z-CAM E2

Z Cam

6970130770064
Professional 4K Cinematic Camera DCI and UHD 4K up to 120 fps
go to the technical sheet
₦ 4,046,621.00

₦ 3,764,299.00 VAT excl.

Available in 14 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant
Professional 4K Cinematic Camera DCI and UHD 4K up to 120 fps

DCI and UHD 4K up to 120 fps
Multicamera Synchronization
10-Bit Color Recording, Supports ProRes
4/3" WDR CMOS Sensor
13-Stop Dynamic Range (16 WDR Enabled)
Gigabit Ethernet for Data, Control
Live Streaming via Ethernet
iOS App for Control & Live Preview
Accepts Optional L-Series Batteries
AC Power Adapter Included


The Z CAM E2 Professional 4K Cinematic Camera shoots DCI and UHD 4K at up to 120 fps, as well as HD up to 240 fps, and records to a Cfast 2.0 card (not included). An optional cable enables syncing two E2 cameras together, and the system supports syncing up to 100 cameras. The camera features a 4/3" sensor with 10-bit color support and nominal 13 stops of dynamic range with 16 stops when set to WDR. The camera supports recording in ProRes 422 in 10-bit, as well as H.265 and H.264 codecs for efficient compressing of your image.

An included Gigabit connector provides data transfer and control of the camera, and you can also use an available iOS app to control the camera and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers from an L-series battery (not included) or via the included AC adapter.




4K Capture and Recording

Unburdened by a recording time limit, you can record DCI/UHD 4K at up to 120 fps or 1080p at up to 240 fps, for up to the limit of your recording media's capacity
Triple native ISO 80 / 160 / 800
13 stops of dynamic range using Zlog, and 16 stops of dynamic range in WDR mode
Built in multi-frame noise reduction technology to produce clean footage
H.265 (10-bit color) internal recording on Cfast 2.0 card
10-bit ProRes recording in 422 HQ, 422, 422 LT, and 422 Proxy is supported
Video output through HDMI 2.0 is supported (up to DCI 4K @ 60 fps, 10-bit color, YUV 422)
Full metal housing for efficient heat dissipation

Interfaces and Expandability

USB Type-C port for live view and control via iOS device with Z Camera app installed
The USB Type-C port can also be used for external SSD recording
Ethernet port for live view, control, and file transfer to browser or computer running Z CAM software
HTTP API and SDK are also available
COM (RS232) port supports UART protocol
LANC port for remote control including power on/off
Pixel-level multicamera sync can be achieved for up to 100 devices—requires optional cable(s)

iOS App
Z Camera is a mobile application for camera live preview and control through Wi-Fi/USB cable connection. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview. It can be downloaded from the Apple App Store.

Camera Body

Made from aluminum for strength and heat dissipation
Nine threaded mounting holes around the outside chassis
Sensor plane marking for accurate distance measurements
Powers from included AC/DC adapter or optional L-series batteries
Active MFT mount

H-FS45150EKA
Panasonic

H-FS45150EKA

₦ 430,590.00 VAT included
Available 2 unit in 4 Days
H-PS14042E-K
Panasonic

H-PS14042E-K

₦ 654,351.00 VAT included
Available in 14 days
H-HS043E-K
Panasonic

H-HS043E-K

₦ 656,985.00 VAT included
Available in 24 days
SY10VT
Samyang

SY10VT

₦ 937,184.00 VAT included
Available in 11 days
SY13VT
Samyang

SY13VT

₦ 1,079,138.00 VAT included
Available in 11 days
SY12VT
Samyang

SY12VT

₦ 798,025.00 VAT included
Available in 11 days
SY75VT
Samyang

SY75VT

₦ 639,301.00 VAT included
Available in 11 days
H-FS35100E-K
Panasonic

H-FS35100E-K

₦ 618,823.00 VAT included
Available 1 unit in 4 Days
H-PS45175E-K
Panasonic

H-PS45175E-K

₦ 772,709.00 VAT included
Available 2 unit in 4 Days
XEEN SYX35T
Samyang

XEEN SYX35T

₦ 3,301,539.00 VAT included
Available in 11 days
SY15VT
Samyang

SY15VT

₦ 994,643.00 VAT included
Available in 11 days
H-ES045E
Panasonic

H-ES045E

₦ 1,305,963.00 VAT included
Available 2 unit in 4 Days
H-H025E-K
Panasonic

H-H025E-K

₦ 336,474.00 VAT included
Available 1 unit in 4 Days
H-X2550E
Panasonic

H-X2550E

₦ 3,258,216.00 VAT included
Available in 14 days
H-FSA100300E
Panasonic

H-FSA100300E

₦ 1,103,540.00 VAT included
Available in 14 days
SY50VT
Samyang

SY50VT

₦ 1,035,708.00 VAT included
Available in 11 days
H-HS030E
Panasonic

H-HS030E

₦ 578,833.00 VAT included
Available in 14 days
H-NS043E
Panasonic

H-NS043E

₦ 2,595,963.00 VAT included
Available 1 unit in 4 Days
H-X1025E
Panasonic

H-X1025E

₦ 3,258,216.00 VAT included
Available in 14 days
H-F007014E
Panasonic

H-F007014E

₦ 1,642,491.00 VAT included
Available in 14 days
H-FS12060E
Panasonic

H-FS12060E

₦ 745,726.00 VAT included
Available 2 unit in 4 Days
H-E08018E
Panasonic

H-E08018E

₦ 1,992,350.00 VAT included
Available 1 unit in 4 Days
H-ES35100E
Panasonic

H-ES35100E

₦ 2,027,879.00 VAT included
Available in 14 days
H-X012E
Panasonic

H-X012E

₦ 2,272,818.00 VAT included
Available in 14 days
SY21VT
Samyang

SY21VT

₦ 771,365.00 VAT included
Available in 11 days
XEEN SYX13T
Samyang

XEEN SYX13T

₦ 3,248,273.00 VAT included
Available in 11 days
SLR-2595MFT
SLR Magic

SLR-2595MFT

₦ 927,670.00 VAT included
Available in 11 days
XEEN SYX14T
Samyang

XEEN SYX14T

₦ 3,301,539.00 VAT included
Available in 11 days
SLR-MP12MFT
SLR Magic

SLR-MP12MFT

₦ 923,209.00 VAT included
Available in 19 days
XEEN SYX50T
Samyang

XEEN SYX50T

₦ 3,248,273.00 VAT included
Available in 11 days
SLR-3595MFT
SLR Magic

SLR-3595MFT

₦ 1,832,766.00 VAT included
Available 1 unit in 4 Days
XEEN SYX16T
Samyang

XEEN SYX16T

₦ 3,248,273.00 VAT included
Available in 11 days
SLR-1021MFT
SLR Magic

SLR-1021MFT

₦ 794,746.00 VAT included
Available in 19 days
SLR-3517MFT
SLR Magic

SLR-3517MFT

₦ 181,351.00 VAT included
Available in 11 days
XEEN SYX85T
Samyang

XEEN SYX85T

₦ 3,301,539.00 VAT included
Available in 11 days
SLR-5095MFT
SLR Magic

SLR-5095MFT

₦ 1,208,353.00 VAT included
Available 1 unit in 4 Days
XEEN SYX20T
Samyang

XEEN SYX20T

₦ 3,288,209.00 VAT included
Available in 11 days
LP36893-PWW
Lowepro

LP36893-PWW

₦ 136,900.00 VAT included
Available in 24 days
MB MA3-BP-GM
Manfrotto

MB MA3-BP-GM

₦ 238,380.00 VAT included
Available in 14 days
MB PL2-BP-FX-L
Manfrotto

MB PL2-BP-FX-L

₦ 497,401.00 VAT included
Available in 14 days
MB PL2-BP-BL-M
Manfrotto

MB PL2-BP-BL-M

₦ 303,848.00 VAT included
Available 1 unit in 4 Days
MB MA3-BP-A
Manfrotto

MB MA3-BP-A

₦ 174,686.00 VAT included
Available 1 unit in 4 Days
MB MA3-BP-H
Manfrotto

MB MA3-BP-H

₦ 256,440.00 VAT included
Available 2 unit in 4 Days
MB MA3-BP-BF
Manfrotto

MB MA3-BP-BF

₦ 218,761.00 VAT included
Available in 14 days
MB PL2-BP-BL-S
Manfrotto

MB PL2-BP-BL-S

₦ 272,780.00 VAT included
Available in 14 days
MB PL2-BP-ML-M
Manfrotto

MB PL2-BP-ML-M

₦ 618,930.00 VAT included
Available 1 unit in 4 Days
MB MA3-BP-FM
Manfrotto

MB MA3-BP-FM

₦ 354,104.00 VAT included
Available in 14 days
MB MA3-BP-T
Manfrotto

MB MA3-BP-T

₦ 245,851.00 VAT included
Available 1 unit in 4 Days
MB MA3-BP-C
Manfrotto

MB MA3-BP-C

₦ 183,985.00 VAT included
Available 2 unit in 4 Days
MB PL2-BP-FL-M
Manfrotto

MB PL2-BP-FL-M

₦ 325,993.00 VAT included
Available 2 unit in 4 Days
MB MA3-SB-XS
Manfrotto

MB MA3-SB-XS

₦ 45,525.00 VAT included
Available in 14 days
MB MA3-H-L
Manfrotto

MB MA3-H-L

₦ 74,819.00 VAT included
Available in 14 days
MB MA3-M-M
Manfrotto

MB MA3-M-M

₦ 174,418.00 VAT included
Available in 14 days
MB MA3-SB-M
Manfrotto

MB MA3-SB-M

₦ 75,840.00 VAT included
Available in 14 days
MB MA3-H-M
Manfrotto

MB MA3-H-M

₦ 67,724.00 VAT included
Available in 14 days
MB MA3-SB-L
Manfrotto

MB MA3-SB-L

₦ 90,998.00 VAT included
Available 1 unit in 4 Days
MB MA3-SB-S
Manfrotto

MB MA3-SB-S

₦ 61,328.00 VAT included
Available in 14 days
MB MA3-H-S
Manfrotto

MB MA3-H-S

₦ 61,865.00 VAT included
Available in 14 days
MBPL-m43-BT1
Metabones

MBPL-m43-BT1

₦ 917,458.00 VAT included
Available in 14 days
TA-ABP-G
Tilta

TA-ABP-G

₦ 94,868.00 VAT included
Available in 24 days
LB-SF65C
Swit

LB-SF65C

₦ 178,879.00 VAT included
Available 3 unit in 4 Days
SR 3323
SmallRig

SR 3323

₦ 204,894.00 VAT included
Available in 14 days
OEYE-RED EVF
Portkeys

OEYE-RED EVF

₦ 2,826,335.00 VAT included
Available 2 unit in 4 Days
SF-G2M
Sony

SF-G2M

₦ 243,755.00 VAT included
Available 2 unit in 4 Days
Crane 4
Zhiyun-Tech

Crane 4

₦ 1,291,289.00 VAT included
Available in 14 days
Crane 4Combo
Zhiyun-Tech

Crane 4Combo

₦ 1,462,536.00 VAT included
Available in 14 days

Image Sensor
Image Sensor Size 17.3 x 13.00 mm (4/3")
Sensor Type CMOS
Effective Sensor Resolution 10.28 MP
Shutter Type Rolling Shutter
ISO 160 to 25,600 (Native)
80 to 12,800 (Expanded)
Camera
Lens Mount Micro Four Thirds
Built-In ND Filter None
Built-In Microphone Type Stereo
Recording Media 1 x CFast 2.0 Card Slot

Internal Recording
Recording Modes ProRes 422HQ 4:2:2 10-Bit:
4096 x 2160p up to 30 fps
3840 x 2160p up to 30 fps
3696 x 2772 up to 30 fps
1920 x 1080 up to 100 fps
ProRes 422 4:2:2 10-Bit:
4096 x 2160p up to 48 fps
3840 x 2160p up to 60 fps
3696 x 2772 up to 48 fps
1920 x 1080 up to 120 fps
ProRes 422LT 4:2:2 10-Bit:
4096 x 2160p up to 60 fps
3840 x 2160p up to 60 fps
3696 x 2772 up to 60 fps
1920 x 1080 up to 120 fps
ProRes 422 Proxy 4:2:2:
4096 x 2160p up to 60 fps
3840 x 2160 up to 60 fps
3696 x 2772 up to 60 fps
1920 x 1080 up to 120 fps
H.265 10-Bit:
4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)
3840 x 2160p up to 24/25/29.97/50/59.94/120 fps (230 Mb/s)
2696 x 2772p at 23.98/24/29.97/50/59.94 fps (230 Mb/s)
1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s)
H.264 8-Bit:
4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)
3840 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)
3696 x 2772p at 23.98/24/25/29.97/50/59.94 fps (230 Mb/s)
1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s)

Interfaces
Video Connectors 1 x HDMI (HDMI 2.0) Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Output
1 x 5-Pin LEMO Mic Level Input
Other I/O 1 x USB Type-C
1 x 10-Pin LEMO Sync
1 x 9-Pin D-Sub RS-232
1 x 2.5 mm LANC Control
1 x RJ45 LAN
Wireless Interfaces 2.4 GHz Wi-Fi
Power
Battery Type Sony L-Series
Power Connectors 1 x 4-Pin LEMO (12 VDC at5 A) Input
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Accessory Mount 8 x 1/4"-20 Female
Tripod Mounting Thread 1/4"-20 Female
Material of Construction Aluminum
Dimensions 3.59 x 3.91 x 3.51" / 91.2 x 99.2 x 89.1 mm (Without Protrusions)
Weight 1.7 lb / 757 g
Packaging Info
Package Weight 4.95 lb
Box Dimensions (LxWxH) 9.7 x 9.0 x 4.5"
