BarnMini - 06

Name: BarnMini - 06
Brand: Africa Broadcast Store Ltd
SKU: BarnMini - 06
Price: 526421 NGN
Availability: OutOfStock

Optical Changeover Switch (OCS) 1x2, GPI controlled, incl. PSU

go to the technical sheet

₦ 526,421.00

₦ 489,694.25 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

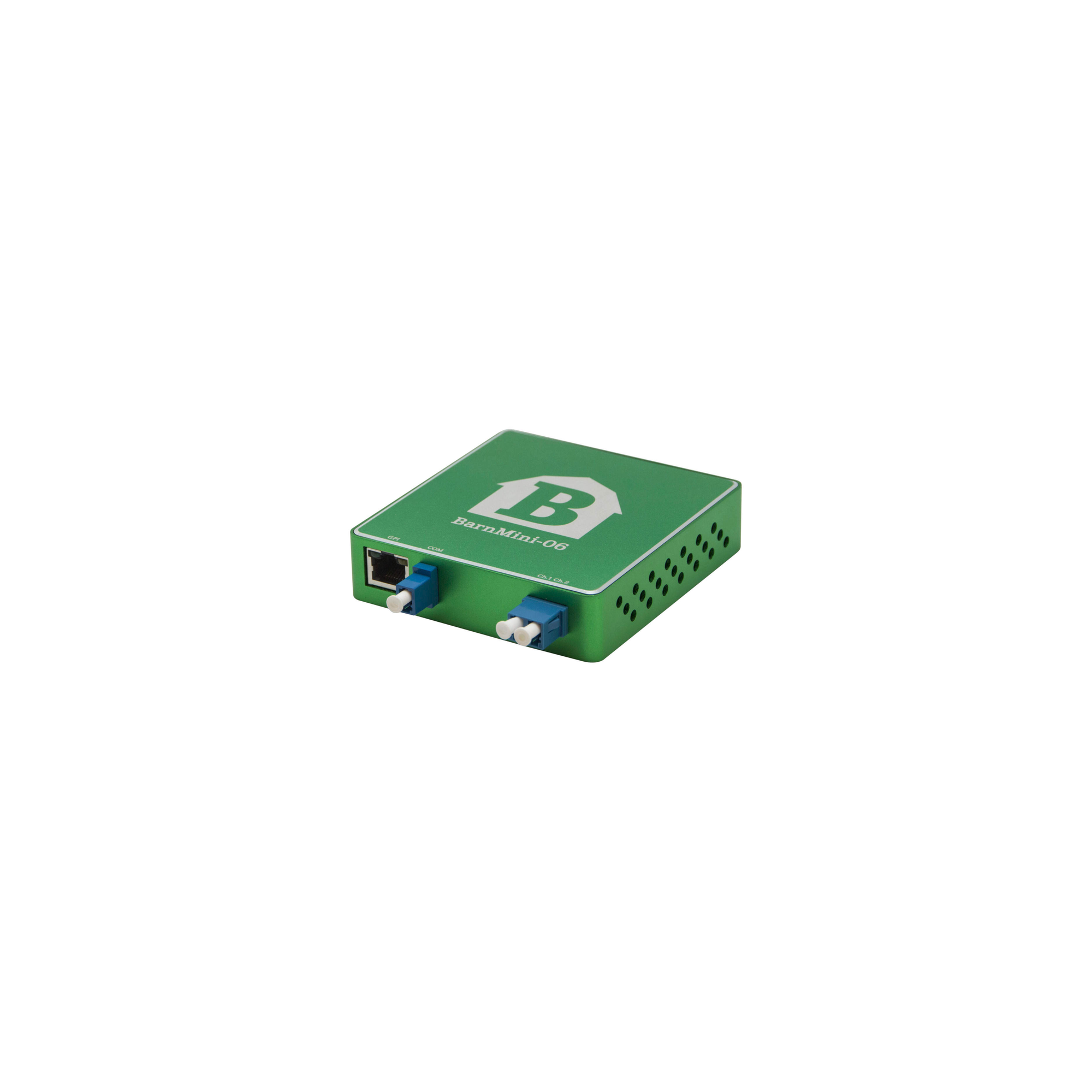

Barnfind Optical Changeover Switch (OCS) 1x2, GPI controlled, incl. PSU

The BarnMini series are made of robust materials in an elegant design.
BarnMini-06 is an optical changeover switch that is controlled by a GPO signal.
BarnMini-05, BTF1-41 or 3rd party products may be used to control the switch.

Optical ports:
- LC/PC connectors
- Operating Wavelength 850-1620nm
- Fiber type: Single Mode
- Insertion Loss <1,2dB
- Wavelength dependant loss <0,3dB
- Polarisation dependant loss 0,05dB
- Crosstalk >35dB
- Return loss >35dB
Optical switch:
- Switching time <10ms (typically 4ms)
- Max. switching cycles 10.000
GPI port: RJ45 connector with 4x GPI wired parallel, non latching
Power supply: 12-24V DC, power supply included
Physical size:
- 92mm x 98mm x 22mm
- 200g
