EZ-HSV+

Name: EZ-HSV+
Brand: Lumantek
SKU: EZ-HSV+
Price: 271.04 EUR
Availability: InStock

Lumantek

HDMI to 3G/HD/SD-SDI Converter with LCD Display + Scaler

go to the technical sheet

€ 271,04

€ 252,13 VAT excl.

Available 3 unit in 4 Days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

HDMI to 3G/HD/SD-SDI Converter with LCD Display + Scaler

Converts HDMI to Two SDI
Analog Audio Stereo Input
Adjustable 480i to 1080p Resolution
6-Position DIP Switch

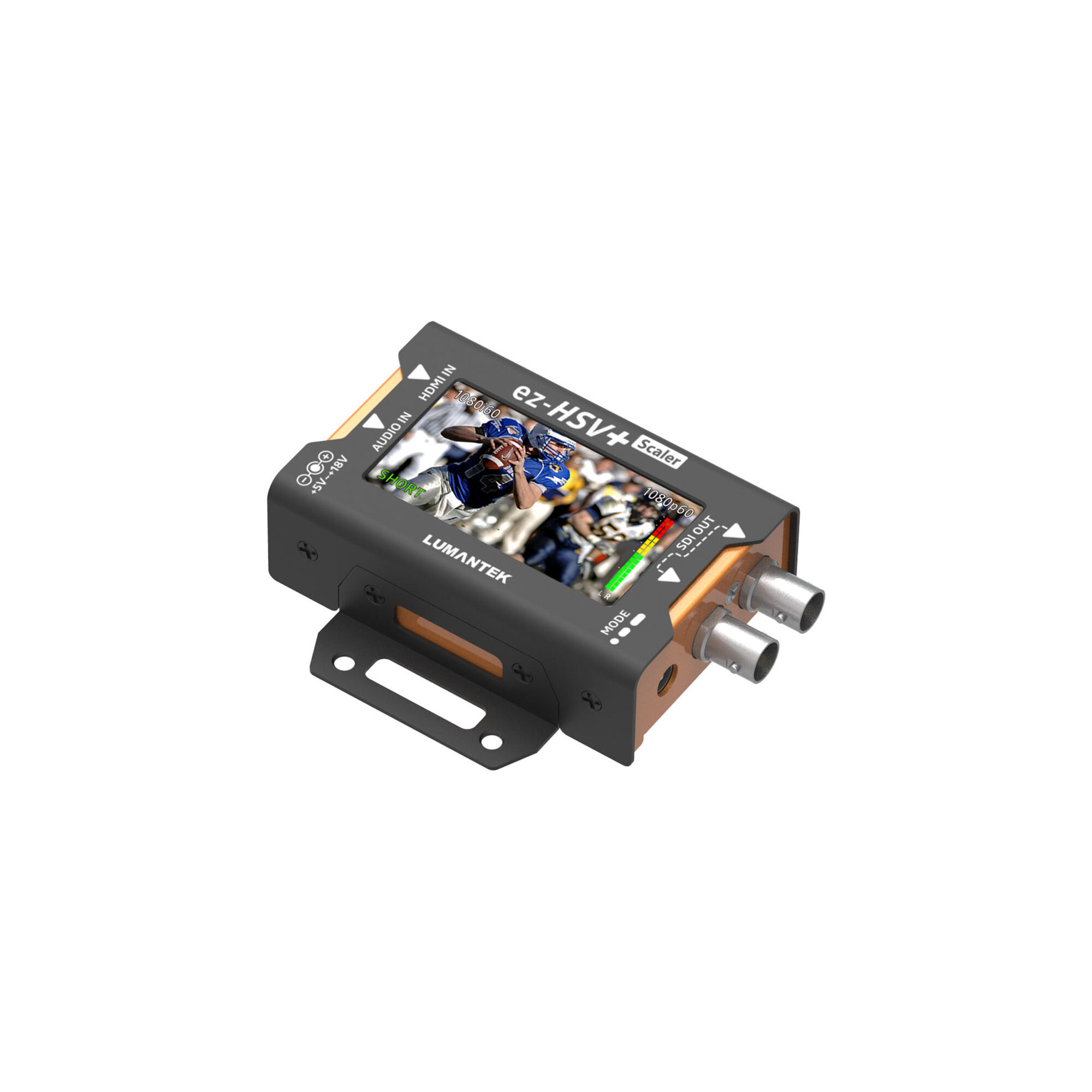

The EZ-HSV+ HDMI to SDI Converter with Display and Scaler from Lumantek features an HDMI input and two SDI outputs. It has an external analog stereo audio input which can be embedded into the video. The converter allows you to display the video in its 2.7" TFT LCD screen. The screen displays the input audio level along with input / output resolutions. You can adjust the resolution from 480i to 1080p via the DIP switch. The 6-position DIP switch allows you control Mode setting, including output video resolution and ratio and audio input settings. The MODE switch provides LCD backlight brightness control and screen rotation adjustment, and enables you to turn the screen on or off.

Cables & Connectors

Teradek

Bolt D-TapLemo Cable

€ 128,83 VAT included

Available in 14 days

Download

Datasheet

Download (846.35KB)

Data Input
Analog Audio Input Stereo Jack x 1
HDMI Video Input SD/ HD/ 3G (HDMI Type A) x 1
Video Formats
- 720x480i59.94/60
- 720x576i50
- 1280x720p50/59.94/60
- 1920x1080i50/59.94/60
- 1920x1080p23.94/24/25/29.97/30
- 1920x1080p50/59.94/60
Data Output
SDI Video Output SD/HD/3G-SDI (BNC 75Ohm) x1
Video Formats - 720x480i59.94 (DIP SW : 1111)
- 720x576i50 (DIP SW : 0111)
- 1280x720p50 (DIP SW : 1011)
- 1280x720p59.94 (DIP SW : 0011)
- 1280x720p60 (DIP SW : 1101)
- 1920x1080i50 (DIP SW : 0101)
- 1920x1080i59.94 (DIP SW : 1001)
- 1920x1080i60 (DIP SW : 0001)
- 1920x1080p23.98 (DIP SW : 1110)
- 1920x1080p24 (DIP SW : 0110)
- 1920x1080p25 (DIP SW : 1010)
- 1920x1080p29.97 (DIP SW : 0010)
- 1920x1080p30 (DIP SW : 1100)
- 1920x1080p50 (DIP SW : 0100)
- 1920x1080p59.94 (DIP SW : 1000)
- 1920x1080p60 (DIP SW : 0000)

Connections
Power DC Power Input (OD: 5.5mm, ID:2.1mm) x1
DIP Switch (6 Pole) x1 Video In/Out Resolution, Video Output Ratio, Audio (INT. Or EXT.)
MODE (Push Switch) x 1 LCD ON/OFF, Menu Selection
Display
2.7 inch TFT LCD

Input Video Display, In/Output Video Resolution Display, Input Audio Level Meter Display
Electrical
Power Input DC + 5V to + 18V
Power Consumption 4W (max.)
Operation Temperature

0-45°
Physical
Dimension 86.3x57.2x26.6 mm (include connector)
Weight 0.3 kg (0.66 lbs)
