DARK16O
Glensound
DARK16O16 Analogue Outputs From DANTE/ AES67 Networks
go to the technical sheet
€ 2.927,35
€ 2.723,12 VAT excl.

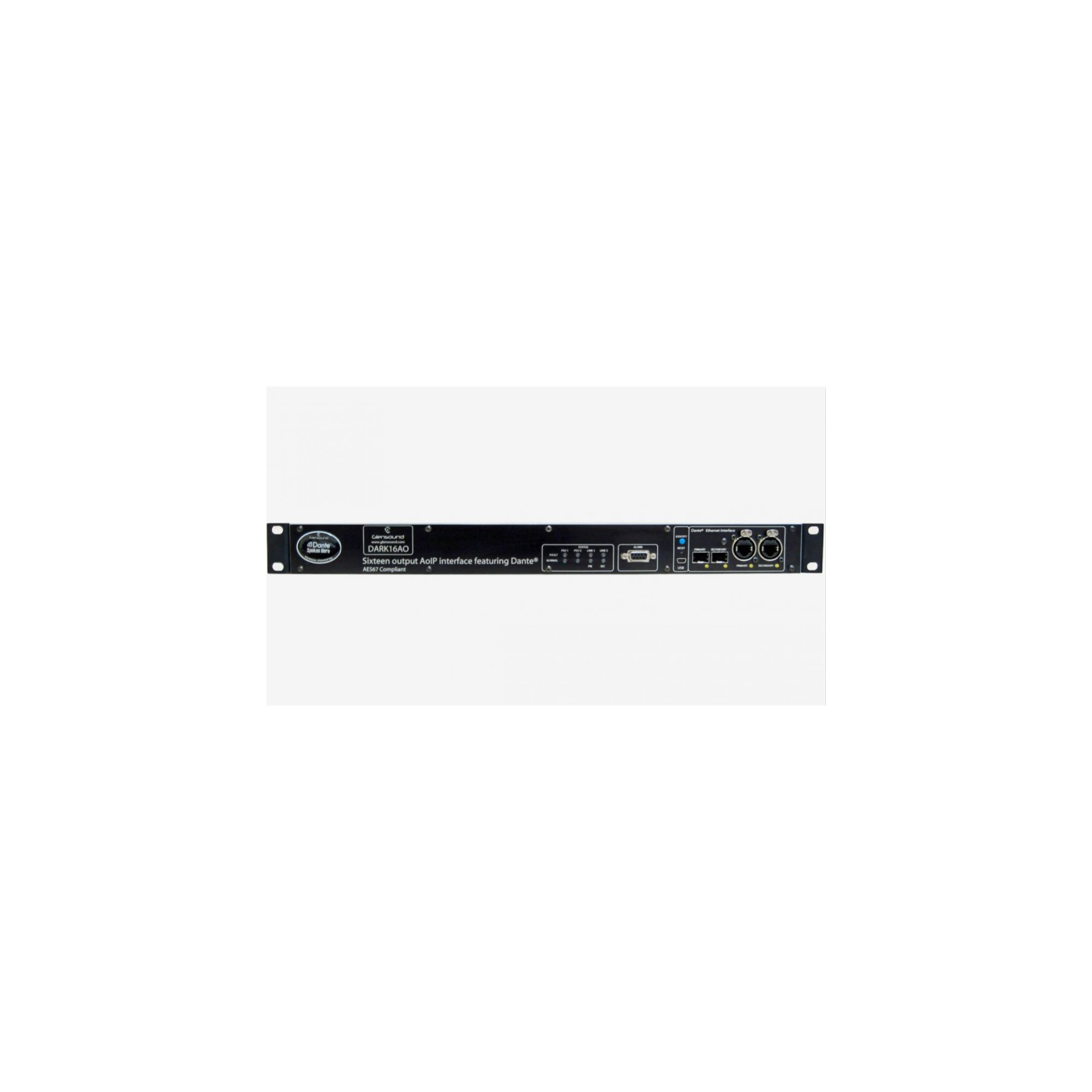

The DARK16O is a versatile break out box for receiving analogue audio from a network utilising the Dante and AES67 audio over IP (AoIP) protocols.
In total there are 16 channels of audio being received from the AoIP network and converted via low noise DACs (Digital to Analogue Converters) to balanced analogue outputs.
For ease of cabling audio outputs are presented as balanced circuits on Neutrik XLRs.
Being designed for resilient broadcast applications the DARK16O features both redundant power supplies and redundant Dante network links with link status GPOs (general purpose outputs (solid state relays)). Both primary and secondary network links are provided with both magnetic (copper RJ45) and fibre (SFP) interface connections. The Dante system itself provides a completely transparent redundant link system which means that if the DARK16O lost its primary link circuit, the secondary link would automatically take over with no loss of audio.
The primary and secondary network interfaces are routed internally via a network switch. It is possible to set this switch to work as a traditional network switch instead of the default redundant mode. This means that there would be just one link to the Dante/ AES67 network and the other connections of the switch could have other Dante or network devices connected to them. As with all Dante devices, once set up, DARK16O units can be directly connected with each other with no external network hardware.
In total there are 16 channels of audio being received from the AoIP network and converted via low noise DACs (Digital to Analogue Converters) to balanced analogue outputs.
For ease of cabling audio outputs are presented as balanced circuits on Neutrik XLRs.
Being designed for resilient broadcast applications the DARK16O features both redundant power supplies and redundant Dante network links with link status GPOs (general purpose outputs (solid state relays)). Both primary and secondary network links are provided with both magnetic (copper RJ45) and fibre (SFP) interface connections. The Dante system itself provides a completely transparent redundant link system which means that if the DARK16O lost its primary link circuit, the secondary link would automatically take over with no loss of audio.
The primary and secondary network interfaces are routed internally via a network switch. It is possible to set this switch to work as a traditional network switch instead of the default redundant mode. This means that there would be just one link to the Dante/ AES67 network and the other connections of the switch could have other Dante or network devices connected to them. As with all Dante devices, once set up, DARK16O units can be directly connected with each other with no external network hardware.
Pro Convert Audio DX
€ 519,44
VAT included
Available in 14 days
Analogue Audio
Maximum Input Level: +18dB
Maximum Output Level: +18dBu
Input Impedance: >20k Ohm
Output Impedance: =Distortion: 0.0013% @ 100Hz
0.0022%@1kHz
0.00094% @ 10kHz
Reference to +8dBu output
Noise: -93dB@line up A weighted RMS
Dynamic Range: 111dB
Input And Output Type: Electronically balanced (can be wired unbalanced)
Digital AES3 Audio
Frequency Response: flat to 22kHz
Maximum Input And Output Level: 0dBFs = +18dBU (other to special order)
Input And Output Impedance: 110 ohm
THD+N: 0.00018% relative
Noise: >-123dB (residual) A weighted RMS
Inputs And Outputs: transformer balanced
Dynamic Range: >141dB
Input Frequency: 16-192kHz (sample rate converted to meet Dante network frequency)
Output Frequency: 44.1, 48, 88.2, 96, 192kHz (output matched to Word Clock or Dante network)
Word Clock
Frequency: 44.1 - 192kHz
Impedance: 75 Ohms
Type: BNC
Network
Dante Sample Frequency: 44.1 - 192kHz
AES67 Sample Frequency: 48kHz
Resolution: 24 Bits
AES67 Streams: Max 8 audio channels per stream
Full Scale: FS = +18dBu (other to special order)
Power
Connections: 2 x mains inputs filtered IEC, 100 to 240 VAC 47-63Hz
AC Consumption: 18 watts@230VAC
Internal Mains Fuse: 20mm 1A anti surge.
Physical
Audio Connectors: 25 way D connectors wired to AES59
Alarm Connector: 9 way D socket
Alarm Type: solid state relay
Size: 1RU 19" 300mm deep excluding connectors
Nett Weight: 3.3kg
Shipping Carton: Rugged export quality cardboard 610x420x130mm LxDxH
Shipping Weight: 4.8kg
Environmental
Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing
Misc
Audio Connectors: 25 Way D connectors wired to AES59
Alarm Connector: 9 Way D Socket
Alarm Type: Solid State Relay
Included Items
Handbook: Physical A4 (download available)
Mains Cable: 2 Metre IEC (UK & Europe only)
Network Cable: 2 metre Cat5 RJ45
