CQ-18T

Name: CQ-18T
Brand: Allen & Heath
SKU: CQ-18T
Price: 1753380 NGN
Availability: OutOfStock

Allen & Heath

Compact 18-Channel Digital Mixer with Touchscreen

go to the technical sheet

₦ 1,753,380.00

₦ 1,631,050.85 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

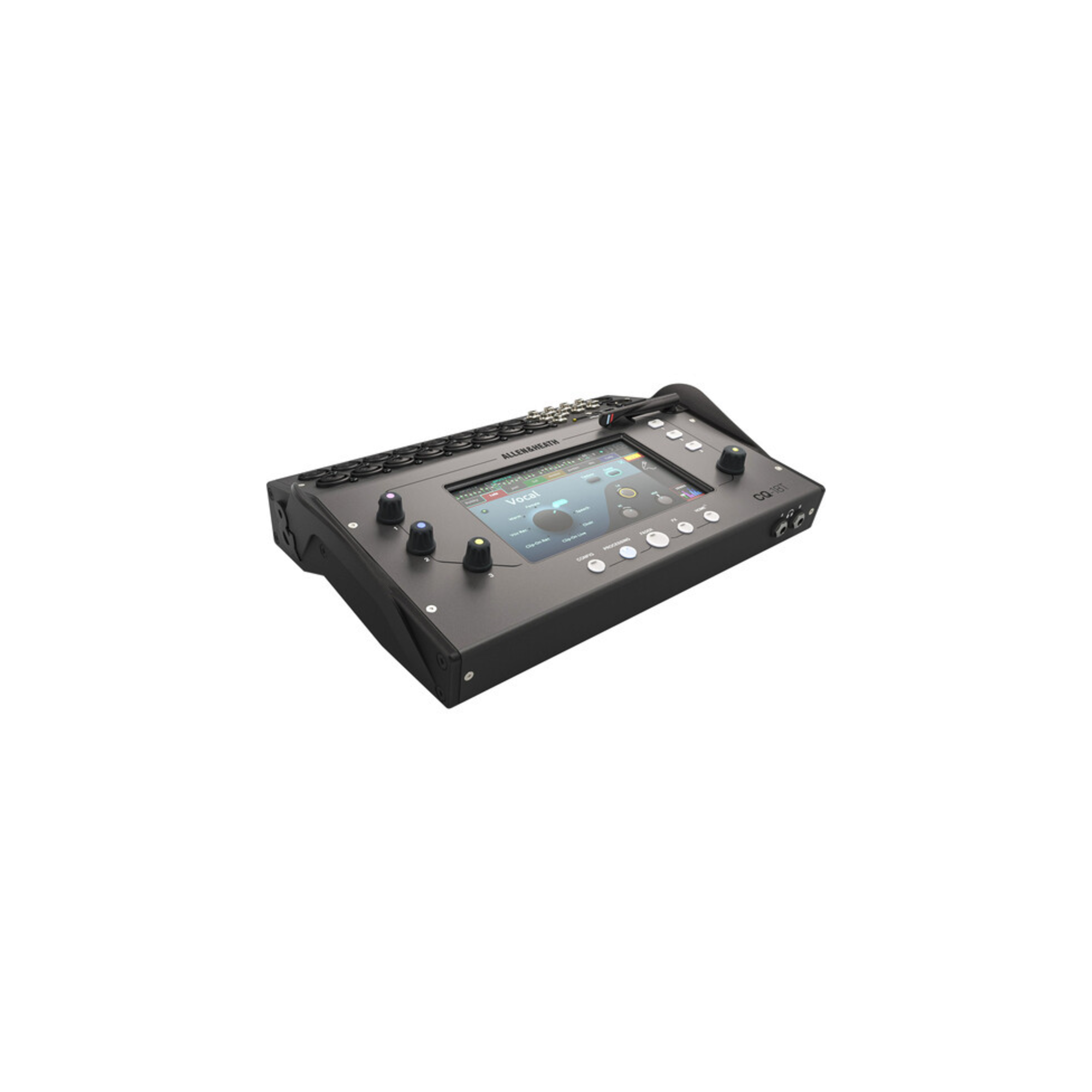

Allen & Heath CQ-18T Compact 18-Channel Digital Mixer with Touchscreen

Mix and record with the Allen & Heath CQ-18T, a compact digital mixer featuring 96 kHz FPGA processing, wireless control via built-in Wi-Fi, and SD/USB audio recording and playback, well suited for bands, producers, and AV rental houses.
Use it as a main mixer in a small venue or a sub mixer on a larger stage.
The CQ-18T mixer utilizes a 7" capacitive touchscreen interface to easily navigate and control the robust mix engine that comes complete with several assistants to help your mixes sound their best including a gain assistant, feedback assistant, FX assist engine, and Automatic Mic Mixer (AMM).
Take control of the full complement of channel strip effects like EQ, compression, and gating that's available on every channel, and set up several sub mixes for monitoring and effects. The CQ-18T features 16 mic/line XLR/combo XLR-1/4" inputs, a pair of balanced 1/4" TRS inputs, and two XLR main outputs as well as six 1/4" mix outputs.
There are also two assignable headphone outputs.
The mixer ships with a 12 VDC power supply.

Hardware Features
- 16 Mic/Line preamps, (8 XLR + 8 Combo XLR-1/4" TRS)
- Balanced stereo line input, (2 x 1/4" TRS)
- Main LR, (2 x XLR)
- 6 x Monitor Mixes, (6 x 1/4" TRS)
- 2 x Assignable headphone outputs, (2 x 1/4" TRS)
- 24 x 22 USB-B interface
- 24 x 22 SD record/playback
- Stereo USB record/playback with dedicated input channel
- Stereo Bluetooth playback with dedicated input channel
- 4 x FX Assist engines
- 3 x Custom Softkeys
- 3 x Smart Rotaries
- Dual Footswitch connection
- 7" Capacitive touchscreen with associated rotary control
- Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select

Mixer
________________________
Max I/O Capacity: 18x Input / 6x Output
Number of Analog Input Channels: 18
Number of Mic Preamps: No
Number of Analog Output Channels: 6
Mix Routing:
- 1x Stereo Main LRC
- 6x Mono Bus
Groups: No
Presets: No
Display: 7" Touchscreen (Backlit)
Faders & Level Adjustment: No

Signal Processing
________________________
Input Polarity: Normal/Reverse
Dynamic Processing: Compressor, Gate
Solo/Mute: Solo, Mute per Input Channel, Bus, Master
Built-In Effects: 4x Stereo Effect (Type Unspecified)
Automatic Mic Mixing: Yes

Digital Audio
________________________
Sample Rates: 96 kHz

Connectivity
________________________
Analog Inputs:
- 8x XLR 3-Pin Balanced Mic/Line Input
- 8x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
- 2x 1/4" TRS Balanced Line Input (1 Stereo Pair)
Analog Outputs:
- 2x XLR 3-Pin Balanced Main Output (1 Stereo Pair)
- 6x 1/4" TRS Balanced/Unbalanced Mix Output
- 2x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power: +48 V
Digital I/O: 1x RJ45 (Network)
MIDI I/O: No
USB I/O:
- 1x USB-A (Audio Playback, Audio Streaming, External Memory, Service)
- 1x USB-B 2.0 (Host Connection)
USB I/O Capacity: 24x Input / 22x Output
Wireless: Wi-Fi *Built-In
Mobile App Compatible: Yes: Android & iOS
App Name: CQ-MixPad
Functionality: Access Stored Files, Adjust Settings, Remote Control
External Display I/O: No

Recording
________________________
Max Multitrack Recording: 24 Tracks
Media Support: SD

Compatibility
________________________
OS Compatibility: Android/iOS

Power
________________________
Input Power:
- 12 VDC at 4 A
- 100 to 240 VAC, 50 / 60 Hz

Physical
________________________
Rack Mountable: Yes
Rackmount Size: 6 RU (with Non-Included Hardware)
Dimensions: 13.6 x 9.5 x 3.5" / 34.6 x 24.2 x 8.8 cm
Weight: 6.6 lb / 3 kg
