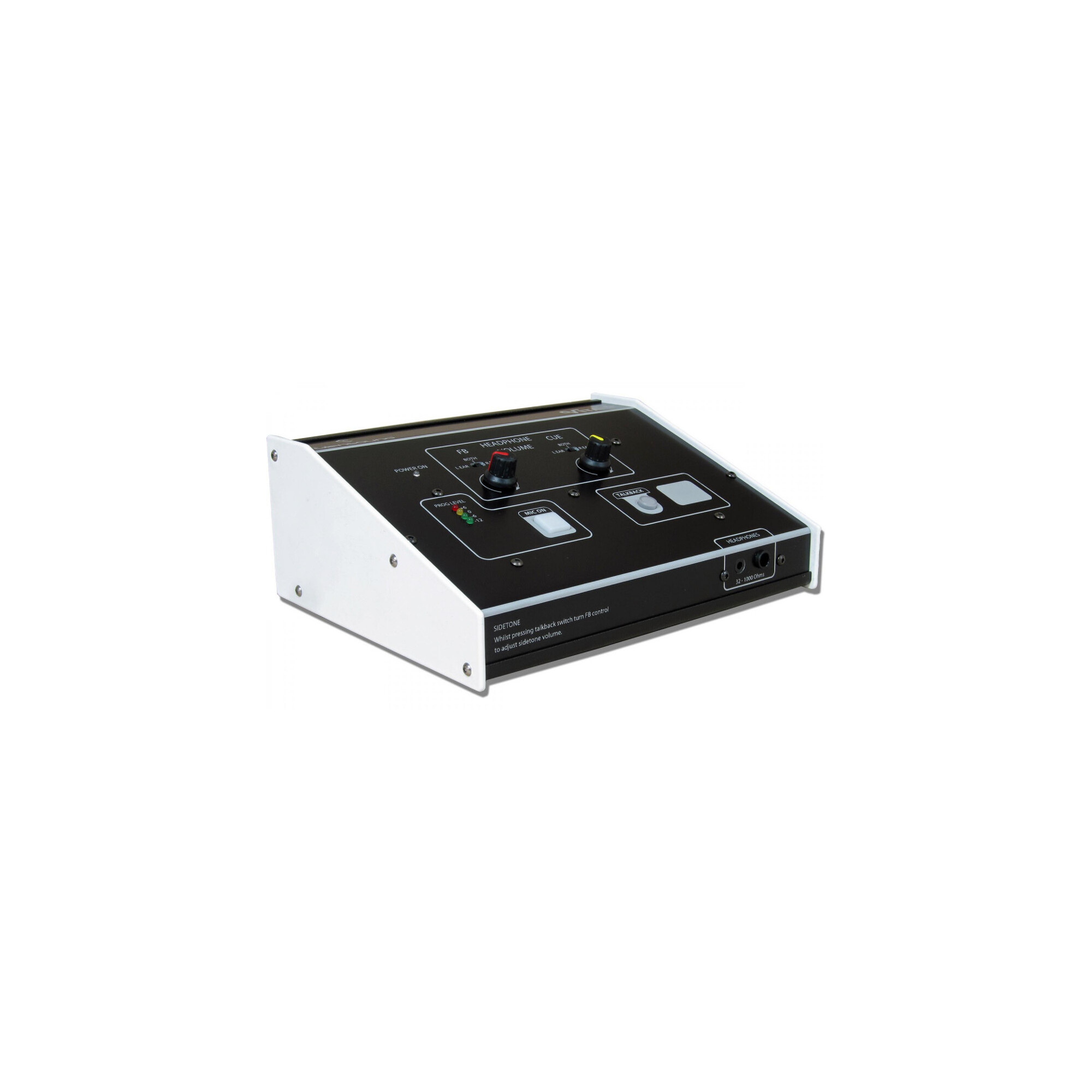

Complete commentary functionality and 4W in a desktop format
Dante AoIP network
Input is switchable from line, mic, or mic + 48v phantom power
Low noise, high headroom mic amplifier
48K 24bit A/D converter
Headphone output on 6.35mm jack socket
Two outputs: one for main programme audio, one for talk back circuit, are both on the single RJ45/CAT5 network audio connection
Independently configurable buttons for both outputs using Config+: latching, momentary or lazy
Two inputs for headphone monitoring from network audio connection, both with adjustable level
Headphone inputs have left/both/right switching
Glensound intelligent headphone amp provides correct output levels into low or high impedance headphones and can also correctly drive mono earpieces with mono jack plugs.
Powered via PoE, or internal switch mode PSU
