MTX3

Name: MTX3
Brand: Yamaha
SKU: MTX3
Price: 2566613 NGN
Availability: OutOfStock

Yamaha

EAN: 4957812512077

Programmable Matrix Mixer 26/8 + Signal processor 8 In 8 Out analog RJ45

go to the technical sheet

₦ 2,566,613.00

₦ 2,387,546.70 VAT excl.

Available in 14 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

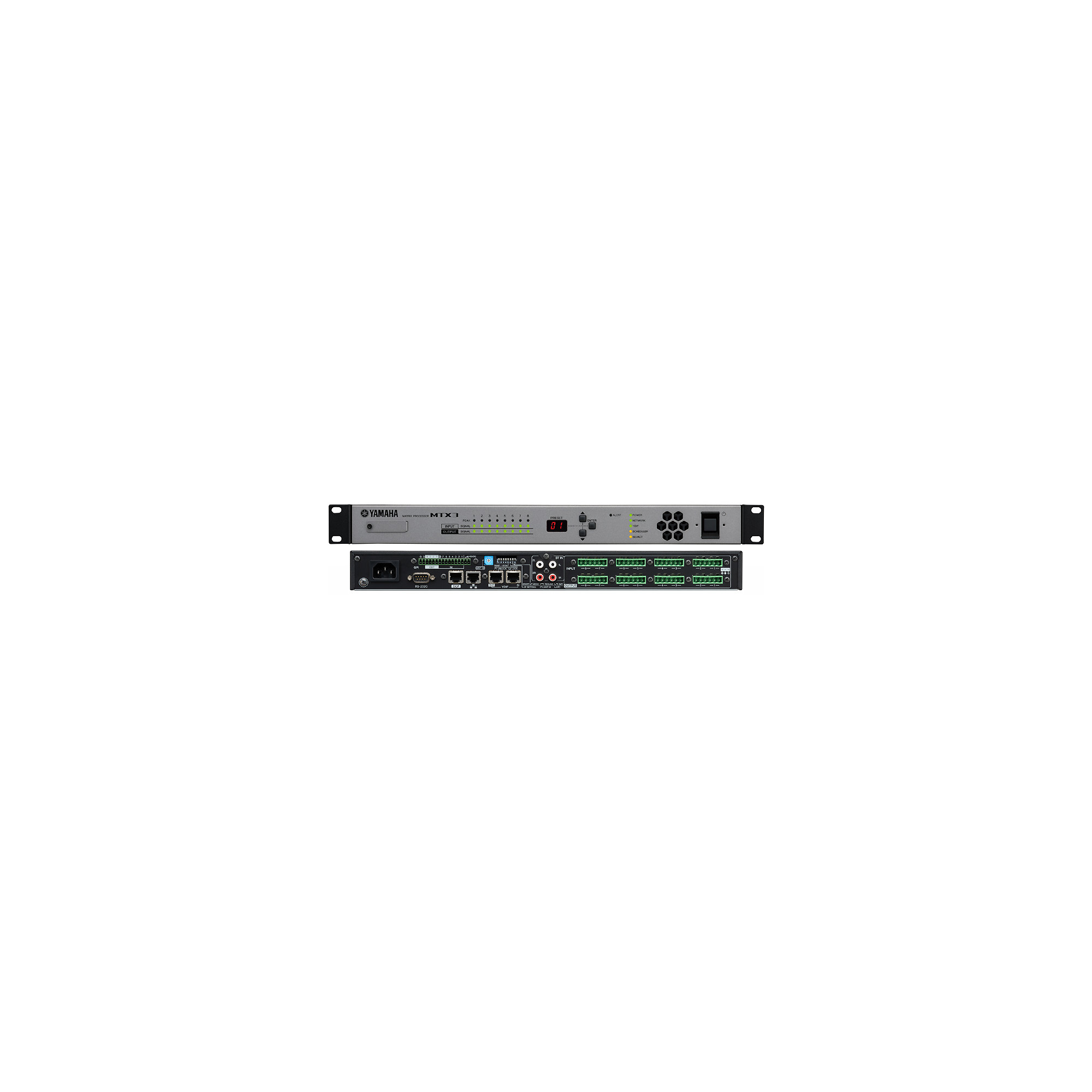

Yamaha Programmable Matrix Mixer 26/8 + Signal processor 8 In 8 Out analog RJ45
The MTX Series feature an input/output configuration that is ideal for a wide range of applications: 8 mono inputs (mic/line), 2 stereo inputs (line) and 16 digital inputs via YDIF. The output side consists of 8 line-level mono outputs and 16 digital outputs via YDIF. MTX processors also feature an SD Card Slot for playback of MP3/WAV files stored on an SD Memory Card. The Event Scheduler function allows you to play back these files as music, announcements or chimes—or even trigger external devices with a GPI output—at scheduled times, as well as recall presets stored within the MTX.

Download

Manuale

Download (5.07MB)

Specifications
=====================

Memory bank preset: 50
Mixing Capacity Mixing Channel : 8 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix - Output Busses : 8 Mono
Input Channel Functions Mono CH : 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (only available in ch 1-4) - Stereo CH: 3-band PEQ, Comp, Auto Gain Control
INPUT 1-8 : +66dB 10kohm 50-600ohm Mics & 600ohmLines -62dBu -42dBu on Euroblock
ST IN 1,2 - 10k ohm 600 ohm Lines -10dBV +10dBV RCA Pin Jack
Output Channel Functions Room Delay, Room EQ, Speaker Processor, X-Over (1way,2way), Delay, 6-band PEQ, Limiter
Internal Processing : Priority Ducking, Ambient Noise Compensator
Sampling frequency rate: 48kHz/ 44.1kHz
Signal delay : Less than 2.5ms (AD-DA @48kHz)
Total harmonic distortion : Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB)
Frequency response : 20Hz to 20kHz, +0.5dB, -1.5dB
Dynamic range : 107dB (Gain:-6dB)
Hum & noise level : (20Hz to 20kHz), Rs=150O -60dBu (Gain:+66dB), -83dBu (Gain:-6dB)
Phantom Power : +48V
Crosstalk (@1kHz): -100dB
Heat diffusion : 43kcal/h max
Power requirements : AC100V-240V 50Hz/60Hz
Power consumption : 50W
Dimensions W xHxD : 480mm x 44mm 4 362mm
Weight : 4.8kg (10.6lbs)
