MY16 AT

Name: MY16 AT
Brand: Yamaha
SKU: MY16 AT
Price: 1132518.24 NGN
Availability: OutOfStock

Yamaha

Mini YGDAI 16-Channel I/O Card, ADAT, 24-bit/48kHz, TOSLINK

go to the technical sheet

₦ 1,132,518.24

₦ 1,053,505.34 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 113,251.82

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

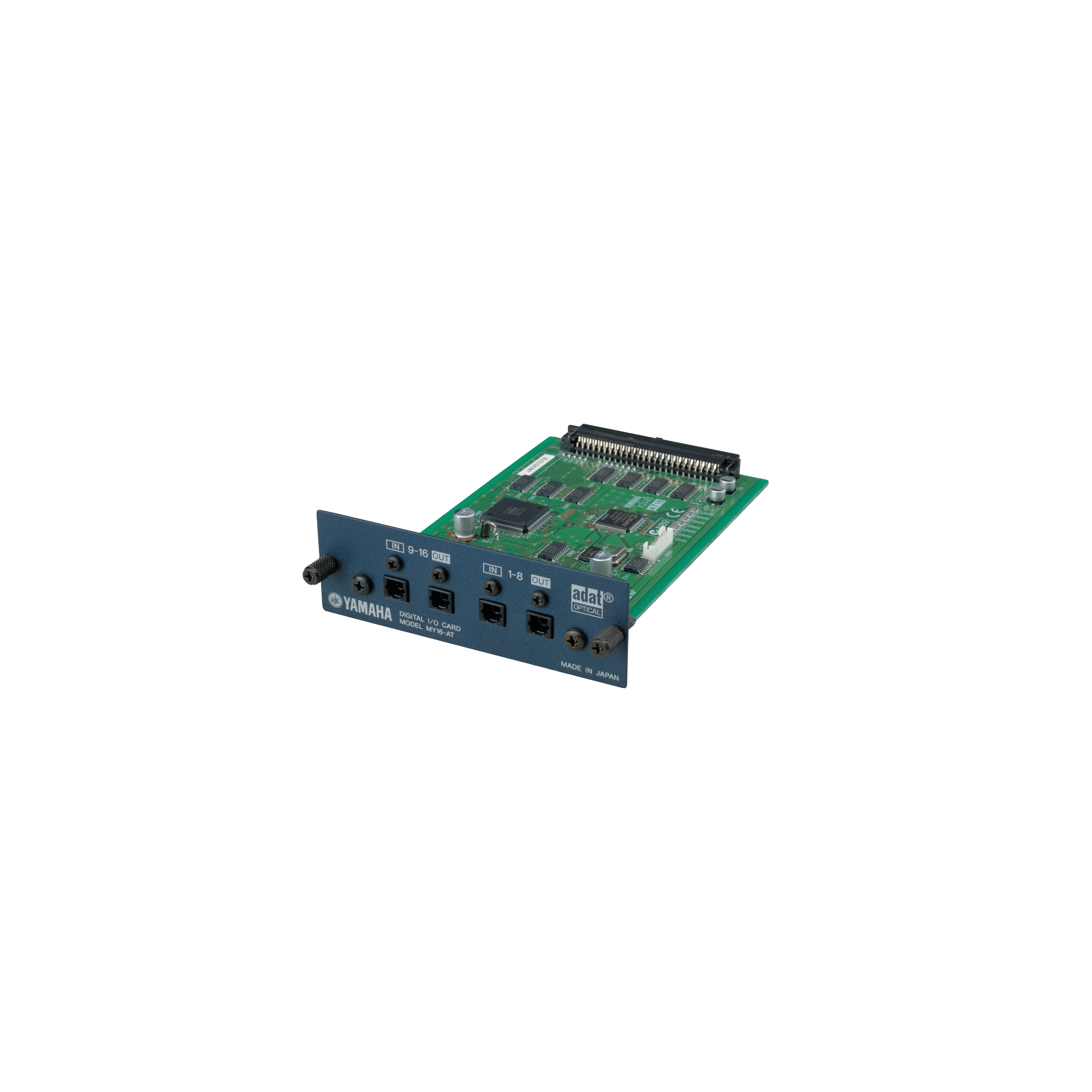

Yamaha Mini YGDAI 16-Channel I/O Card, ADAT, 24-bit/48kHz, TOSLINK

- I/O: Input x 16, Output x 16
- Format: Alesis Proprietary Multi-Channel Optical Digital Interface
- Connectors: TOS LINK x 4
- Resolution: 24-bit
- Sampling Rate: 44.1, 48kHz (88.2 - 96kHz)
- I/O per card: 16-Channel (8-Channel)
- 6 slots (DM2000): 96-Channel (48-Channel)
- 4 slots (02R96): 64-Channel* (32-Channel)
- 2 slots (DM1000): 32-Channel (16-Channel)

The MY16AT Mini-YGDAI Digital I/O can be used with the Yamaha DM2000 consoles. The 02R96, DM1000, and future digital consoles provide up to 16 simultaneous channels of ADAT (optical) I/O via a single expansion slot.
All 16 channels can be used independently at sample rates up to 48 kHz, or they can be used for a "dual-channel" connection to 96 kHz recorders, providing eight channels of I/O at either 88.2 or 96 kHz.
Although the DM2000, DM1000, and 02R96 handle 96 kHz audio as standard, most currently available digital recorders can only handle 96 kHz audio in "dual-channel" mode (using two tracks to make one).
In this configuration, the DM2000, DM1000, and 02R96 use one channel for one 96 kHz track, but double the I/O connections must be used.

Channel Count: 16IN / 16OUT
Format: ADAT
Connector: 4 x TOS LINK
Resolution: 24bit
Dimensions: 120mm x 40mm x 176mm (4.7" x 1.6" x 6.9")

1x MY16 AT
