Falcon D7

Name: Falcon D7
Brand: Axel Technology
SKU: Falcon D7
Price: 3581523 NGN
Availability: OutOfStock

Axel Technology

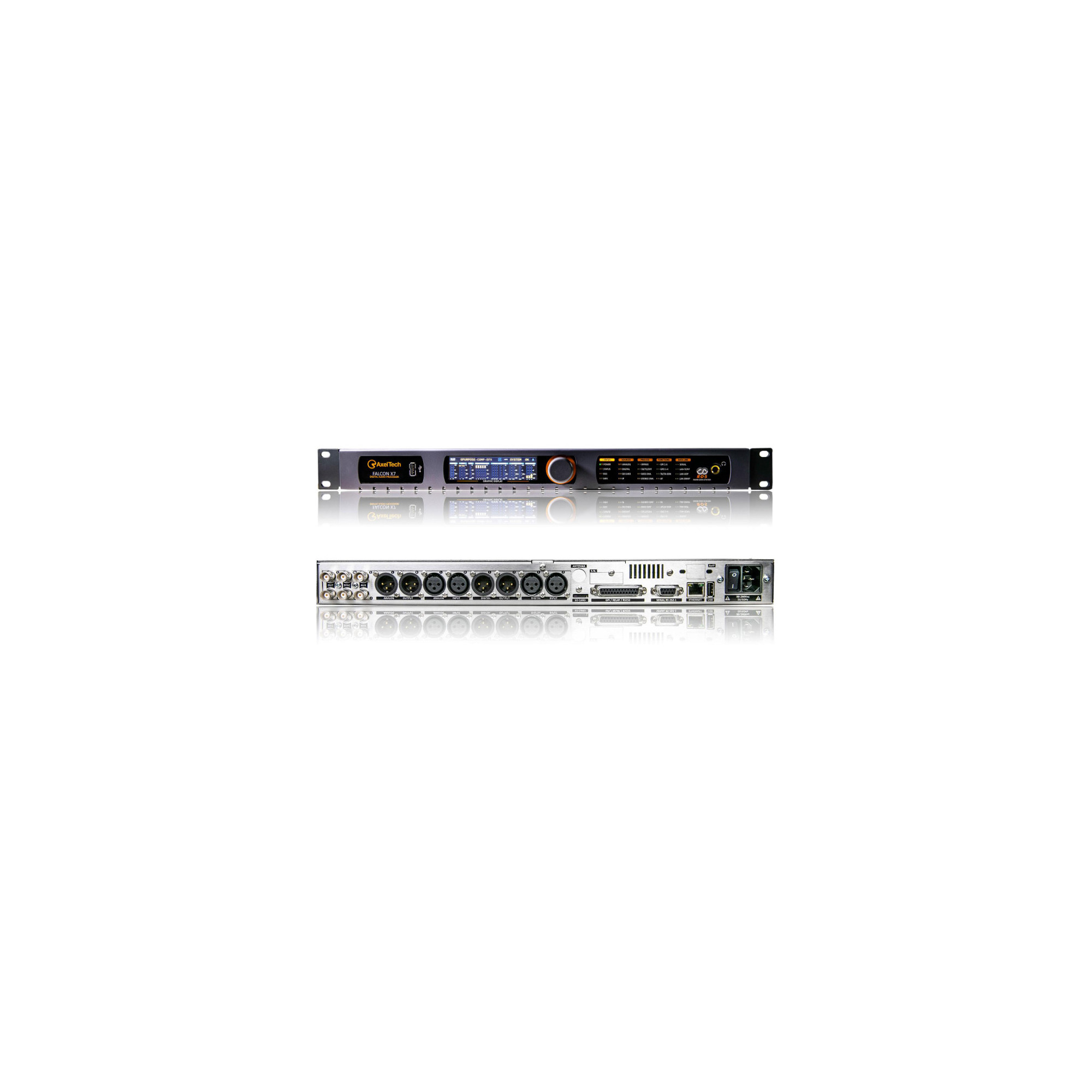

TV Audio Processor and Loudness Control

go to the technical sheet

₦ 3,581,523.00

₦ 3,331,649.00 VAT excl.

Available in 14 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

TV Audio Processor and Loudness Control full digital, stand-alone mono and stereo, controlling the TV audio loudness, dynamics and equalization to provide an always pleasing and highly intelligible TV listening. In all the TV purposes on field, all audio is applied to a single transmission audio processor that automatically controls the average modulation and the peak-to-average ratio while smoothing out transitions between program elements while a simple compression and peak limiting cannot do this effective.
Specially designed for TV, DVB-T and DVB-S and Web broadcasting, it manages the audio/video sync fine tuning and guarantees perfect audio and video sync. Fine adjustments on audio delay enable perfect audio video alignment. For tv emission it needs one embedder and one de-embedder audio.

Converters

Blackmagic

CONVMCAUDS2

₦ 486,759.00 VAT included

Available 1 unit in 4 Days

Blackmagic

CONVMCAUDS4K

₦ 722,184.00 VAT included

Available in 11 days

Blackmagic

CONVMCSAUD

₦ 473,913.00 VAT included

Available 1 unit in 4 Days

Blackmagic

CONVMCSAUD4K

₦ 722,184.00 VAT included

Available 3 unit in 4 Days

Download

Manuale

Download (22.52MB)

Main Features

COMPLETE SET OF INPUTS : Extended Changeover/Silence Detector with configurable source priorities out of 11 sources:1xAnalog, 2xAES/EBU, 2xIP, 1xAES192, 1xDante (Optional), 1xInternal Player

COMPLETE SET OF OUTPUTS : 1xAnalog, 2xAES/EBU, 2xIP, 1xAES192, 1xDante (Optional)

BUILT-IN AUDIO PLAYER : Suitable like a backup source or for test purpose.A Test Signal Generator is also available.

ADVANCED SNMP(Simple Network Management Protocol) : Allows data interchange and simplified configuration of third-party appliancesconnected in the same LAN using shared datasets MIB.

UPGRADEABLE AND RELIABLE : Internal microSD card whit OS for Disaster Recovery.Easily Upgradable via WEB or Windows application. BUILT-IN AUDIO ENCODER AND STREAMERCan manage an audio stream like an input, can generate an output audio stream. SAMPLING RATE FROM 32 kHz TO 192 kHz

WEB BASED CONTROL PANEL : The whole system can be managed through a WEB page generated by the internal web Server.The main functions can be managed through the physical panel.
