GS-CU004

Name: GS-CU004
Brand: Glensound
SKU: GS-CU004
Price: 1797829 NGN
Availability: OutOfStock

Glensound

Glensound GS-CU004 Microphone & Headphone Amp - Black

go to the technical sheet

₦ 1,797,829.00

₦ 1,672,399.00 VAT excl.

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

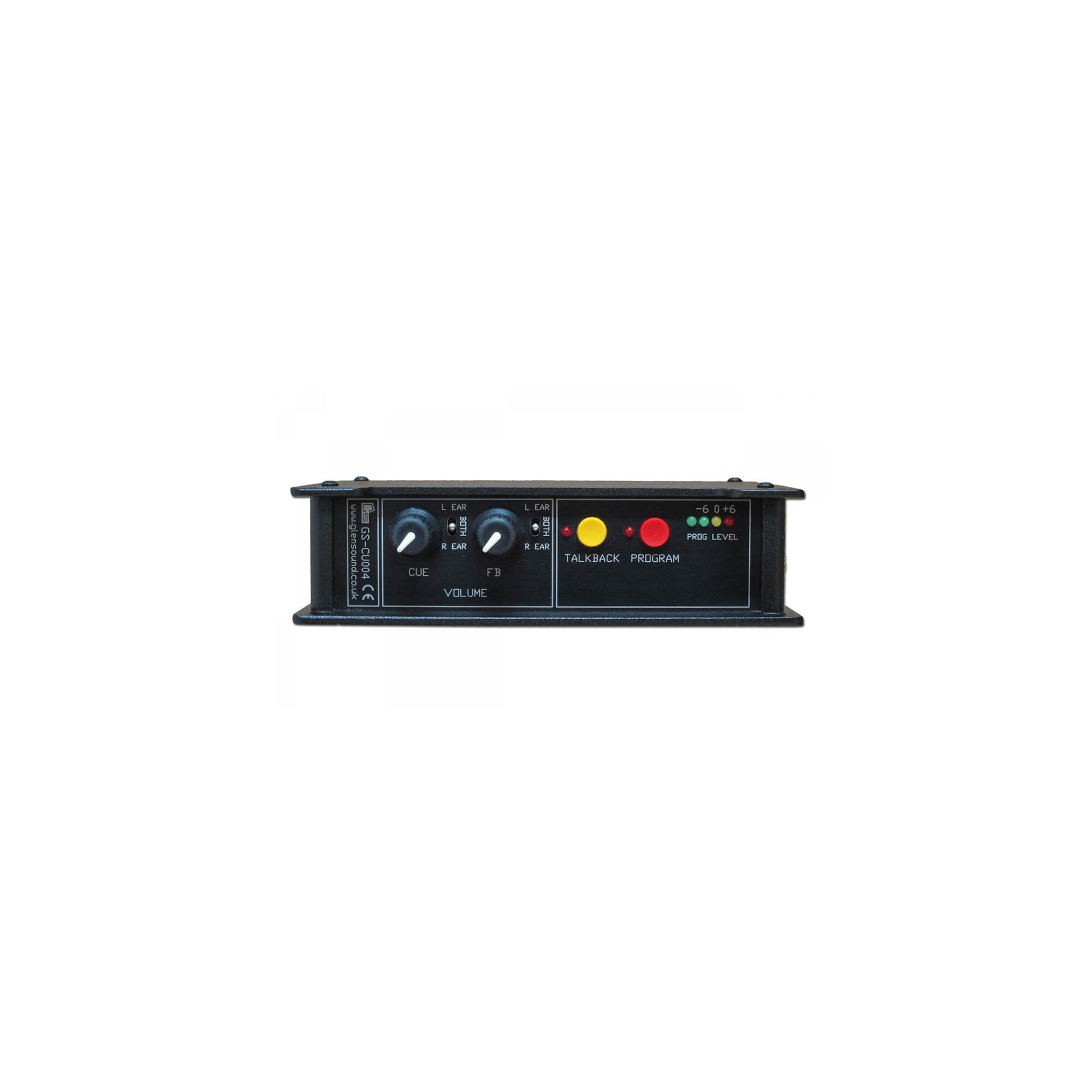

Glensound GS-CU004 Microphone & Headphone Amp - Black

° Inputs
The main input is switchable between mic, mic+12v phantom power, and line.
The input has an adjustable gain control to meet a wide range of dynamic, condenser, and ribbon microphones.
The input passes through a broadcast quality compressor/limiter circuit designed to manage the peaks of excited commentary.

° Outputs/Talkback
There are two output circuits. One is used as the main programme audio, the other as a talkback circuit.
There are separate button controls for each of these using Config+.
They can each be independently configured for latching or momentary, with the programme button also having a 'cough' feature. Both outputs are transformer balanced.

° Monitoring
There are two monitoring inputs each with independent level control.
Each of these inputs can be switched from the left ear, right ear, or both ears.
There is a 4 LED level meter from -6 to +6 dB.

° Power
Battery power is from 1 x 9v PP3, or an external DC power supply.
The GS-CU004 is often used as a remote link to the main commentary unit.
It is favoured by pitch side interviewers, and is popular in combination with wireless systems.

MIC INPUT GAIN: -44dBu to -67dBu

MIC+ PHANTOM PWR GAIN: -36dBu to -59dBu

LINE GAIN: -1dBu to -24dBu

EQUIVALENT INPUT NOISE: 119dBu (22-22KHz RMS gain @ max) Input terminated with 300 Ohms

FREQUENCY REPONSE (Mic-Line): 50Hz to 20KHz <-1dBu

PHANTOM POWER: 12 Volt Phantom power (P12L)

COMPRESSOR/LIMITER: Threshold approx Line up Compressor 3:1 ratio (approx)

THD+NOISE: < 0.25% (50Hz to 20KHz)

PPM METER: 4 x LEDS (-12,-6,0,+6 dBu with reference to prog out)

PGM & TB OUTPUT IMPEDANCE: 50 OHMS Transfomer balanced

FB & CUE INPUT IMPEDANCE: > 80K Ohms Electronically balanced

FB & CUE INPUT GAINS: -20dBu to +10dBu

HEADPHONE ROUTING FB & CUE: inputs switchable to either or both ears

HEADPHONE LEVELS: Max +18dBu with 600 Ohms *****Warning high headphone levels can be harmful to your hearing *****

OPERATOR SIDE TONE: Fixed @ -10dBu with reference to output send level

HEADPHONE CONNECTOR: A or B gauge jack

HEADPHONE IMPEDANCE: 200 to 2000 ohms

POWER:
Internal: 1 x PP3 9 volt battery
External: 12 to 20V @ < 80Ma 2.5 mm Jack (inner positive)

BATTERY LIFE:
BATTERY INDICATOR Steady blue LED indicates good battery
Flashing blue LED indicates low battery

OVERALL SIZE: 43 x 153 x 103 mm

UNIT WEIGHT: 355 Grams (including battery)
