Transmission Module for O4 Air

Name: Transmission Module for O4 Air
Brand: Dji
SKU: Transmission Module for O4 Air
Price: 320746 NGN
Availability: OutOfStock

Dji

EAN: 6941565997470

Transmission Module for O4 Air Unit Pro - DJIO41

go to the technical sheet

₦ 320,746.00

₦ 298,368.57 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

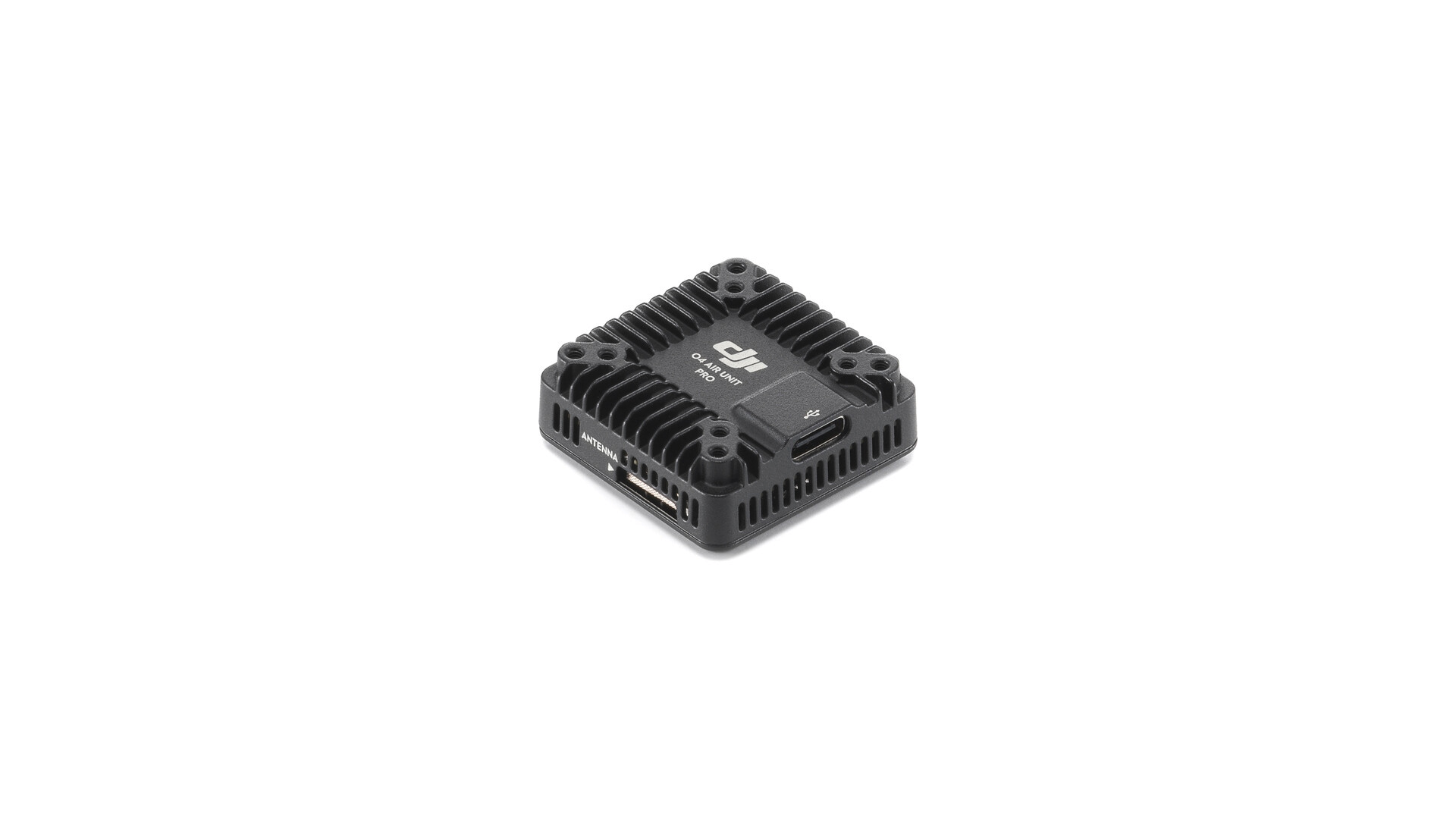

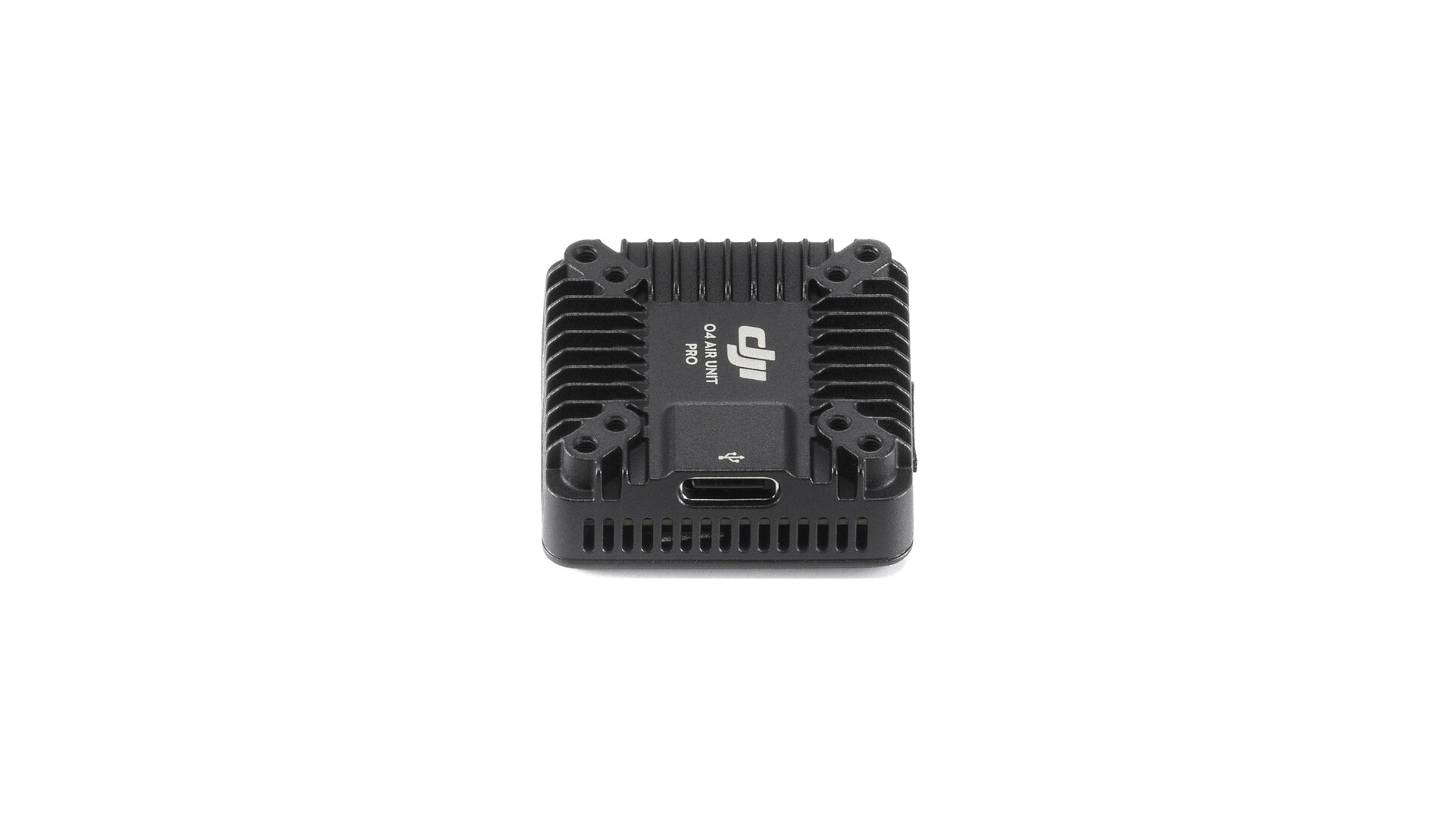

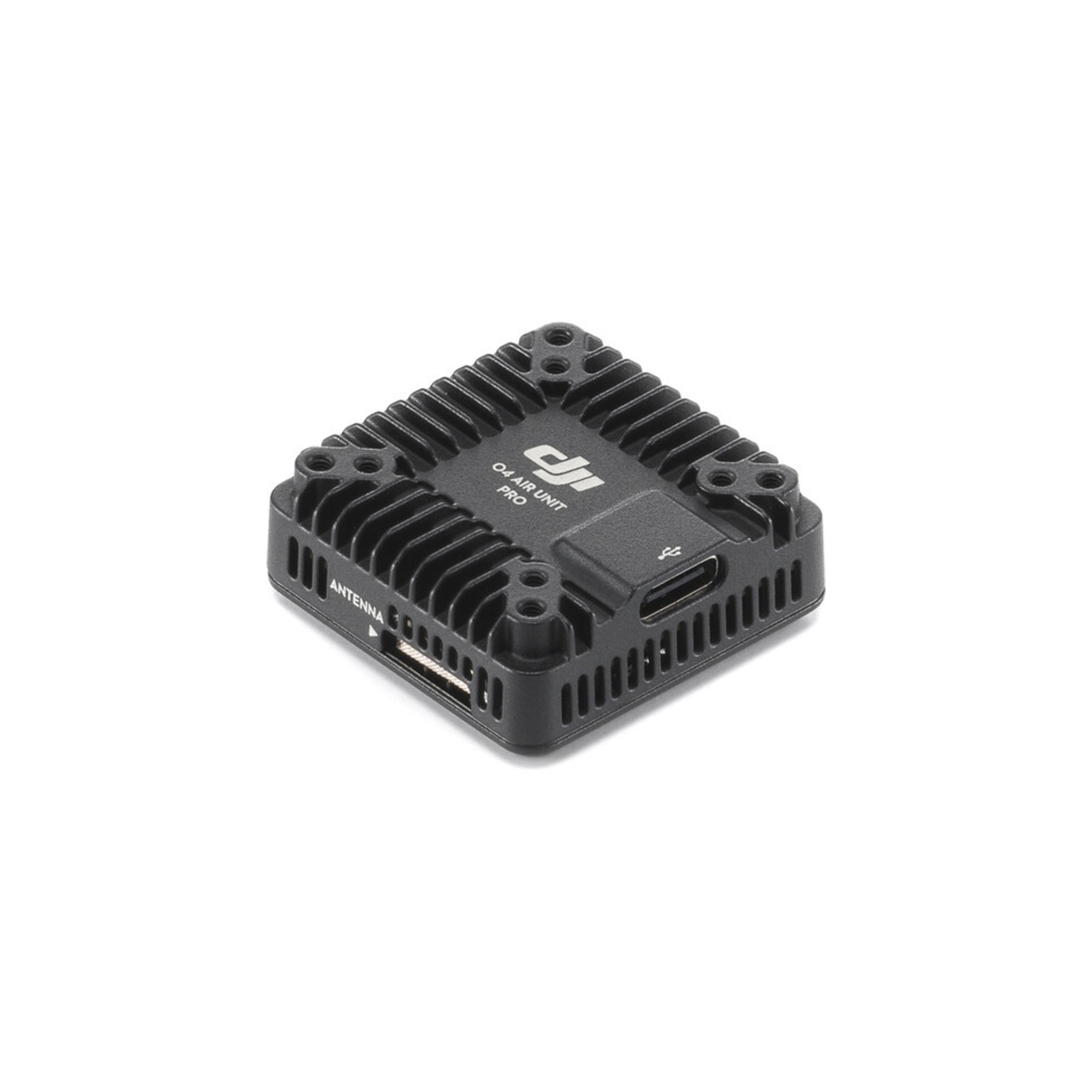

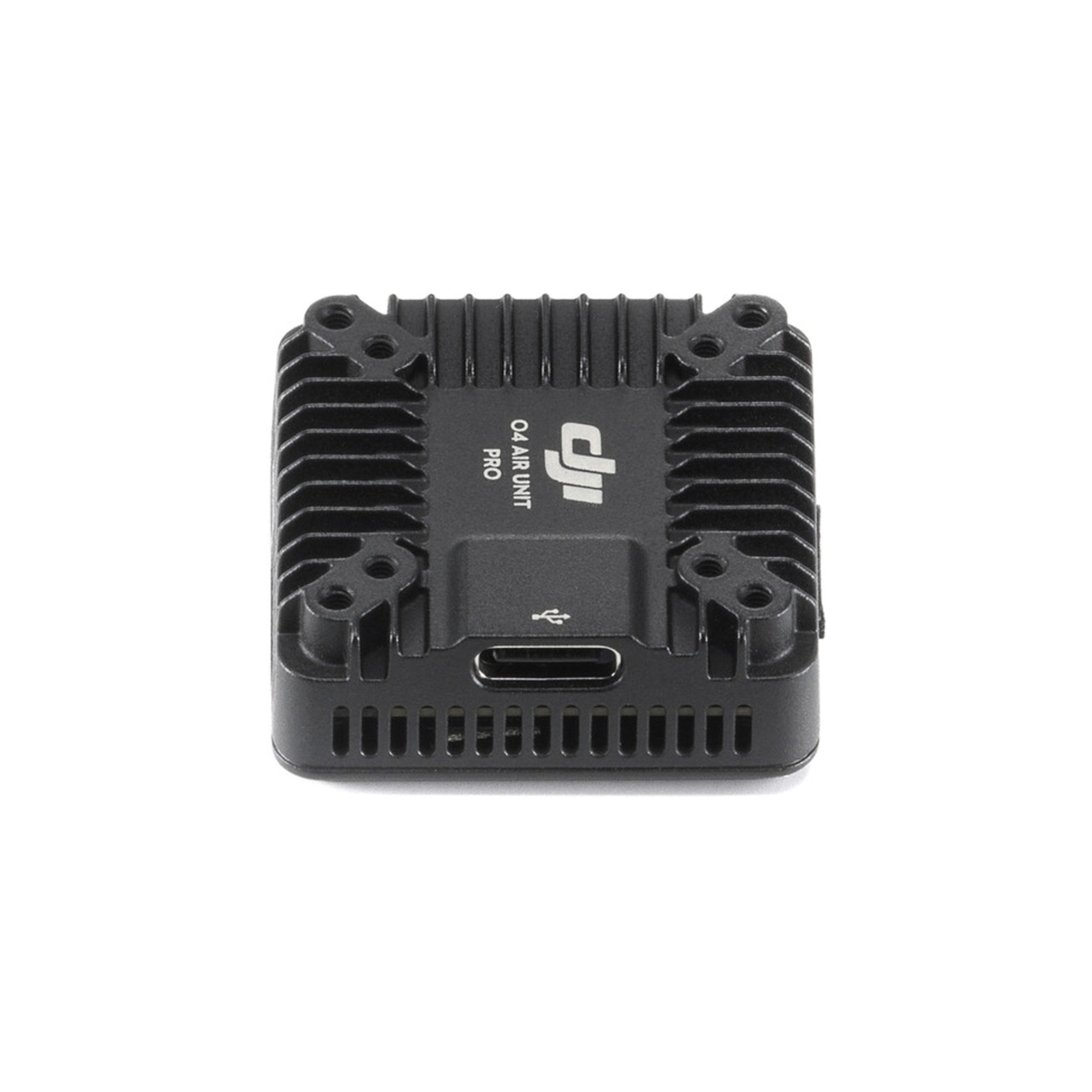

DJI Transmission Module for O4 Air Unit Pro - CP.FP.00000236.01

The Transmission Module for O4 Air Unit Pro from DJI is a replacement part for this FPV system. As a whole, the O4 Air Unit Pro lets you add FPV capabilities to non-FPV-capable drones. This transmission module is an essential component of that system, providing real-time video delivery to optional DJI Goggles from up to 9.3 miles away.
The module has enough bandwidth for video up to 1080p at 100 fps and offers a Racing Mode that will lower transmission latency down to 15 ms.
The module works in conjunction with the system's existing 2T2R antennas, and it uses an automatic multichannel frequency selection process to always utilize the best signal possible.

Wireless
Wireless: 5.8 GHz Radio/RF
Mobile App Compatible: No
Type of Transmitter:
Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85
Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE)
Transmitter Power (EIRP): 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), and <30 dBm (SRRC)
Transmission Range: With DJI Goggles 3/N3: Up to 9.3 Miles / 15 km (FCC), Up to 5 Miles / 8 km (CE/SRRC)
Live View Quality: 1080p at 30, 48, 50, 60, or 100 fps
Communication Bandwidth: 60 MHz (Max)
Antenna: 2T2R
Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels)
Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels)
Channels (FCC/SRRC/CE, 60/40 MHz): Channel 1 at 5794.5 MHz
Channels (FCC/SRRC/CE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MHz
Latency:
- With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 15 ms
- With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 19 ms
- With DJI Goggles 2 or Integra and 1080p/100: Down to 30 ms

Power
Power Source: Proprietary Interface
DC Input Power: 7.4 to 26.4 VDC

Physical
Color: Black
Operating Conditions: 14 to 104°F / -10 to 40°C
Dimensions:
- 1.3 x 1.3 x 0.5" / 33.5 x 33.5 x 13 mm (Transmission Module)
- 4.3" / 110 mm (Each Antenna)
Weight: 0.1 oz / 2.1 g (Each Antenna)
