O4 Air Unit Pro Camera Module

Name: O4 Air Unit Pro Camera Module
Brand: Dji
SKU: O4 Air Unit Pro Camera Module
Availability: OutOfStock

Dji

EAN: 6941565997487

Camera Module for O4 Air Unit Pro - DJIO40

go to the technical sheet

Available in 19 days

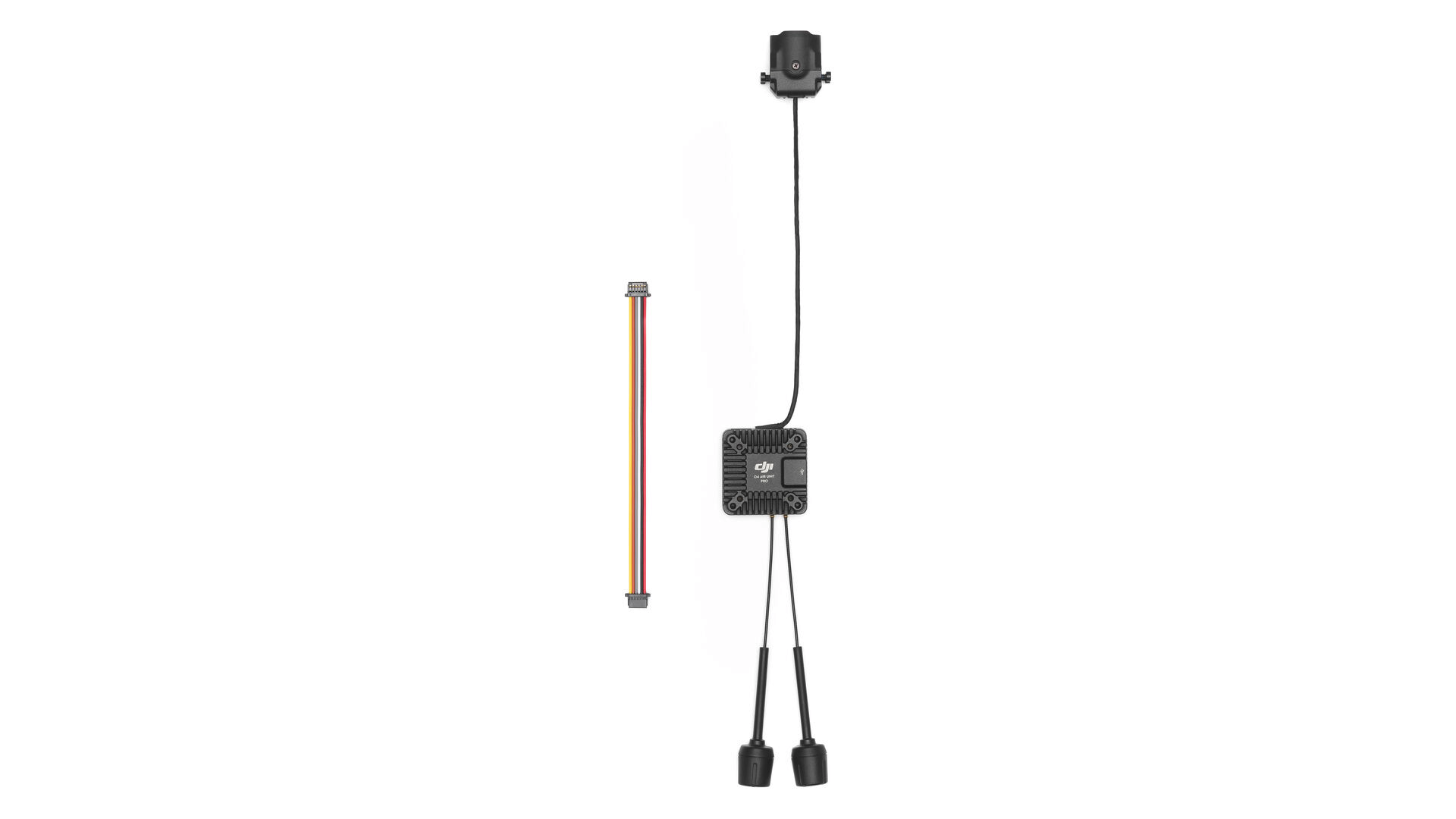

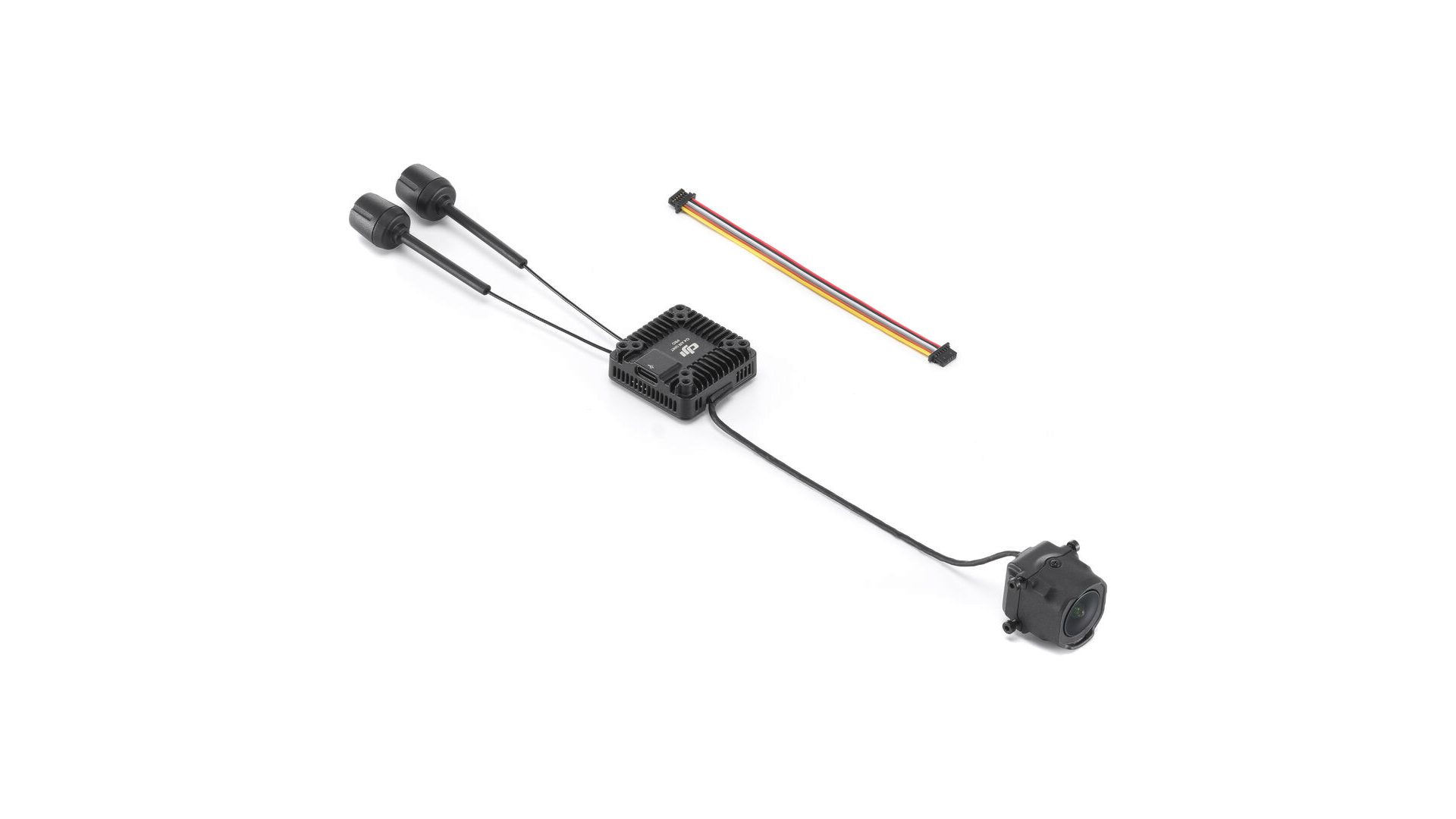

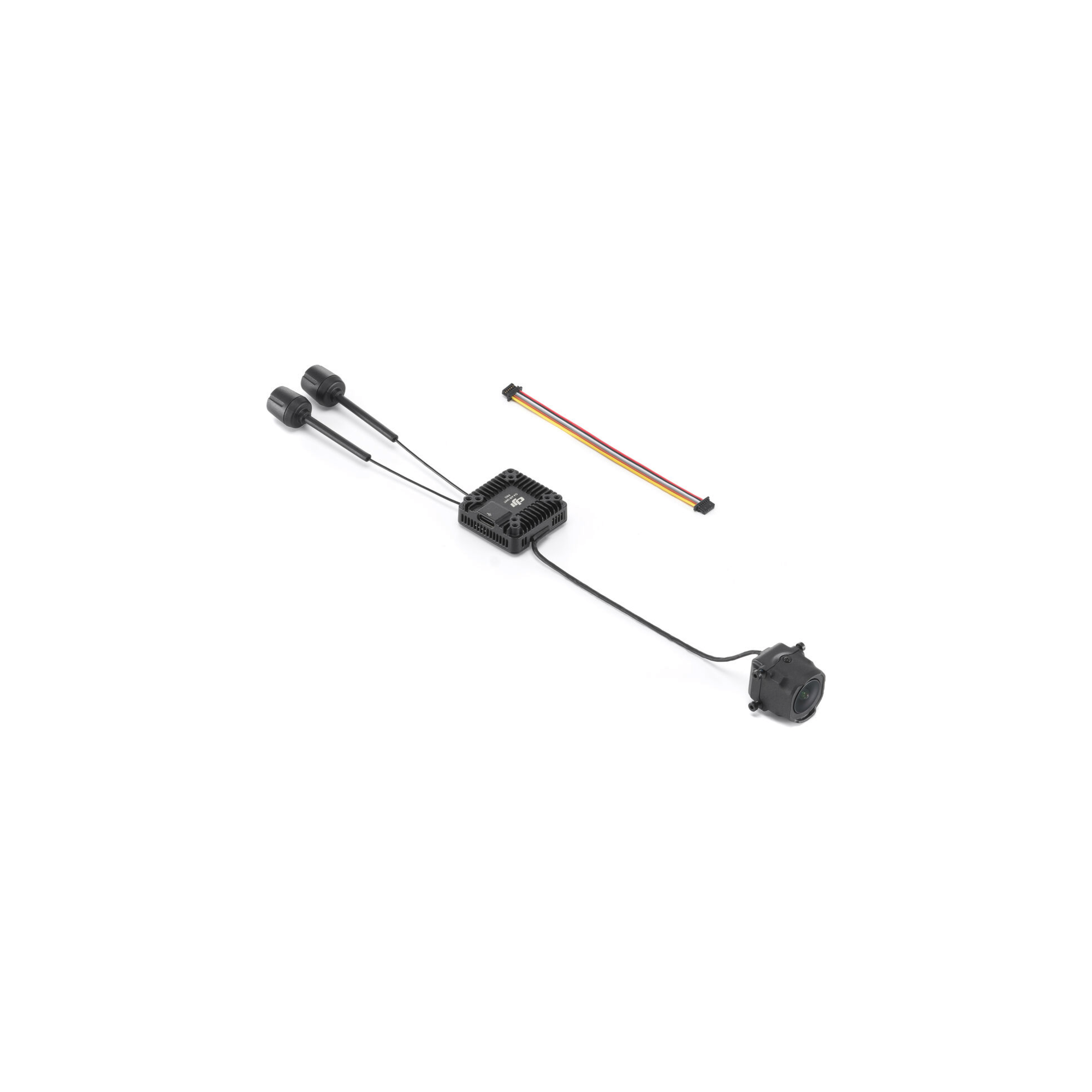

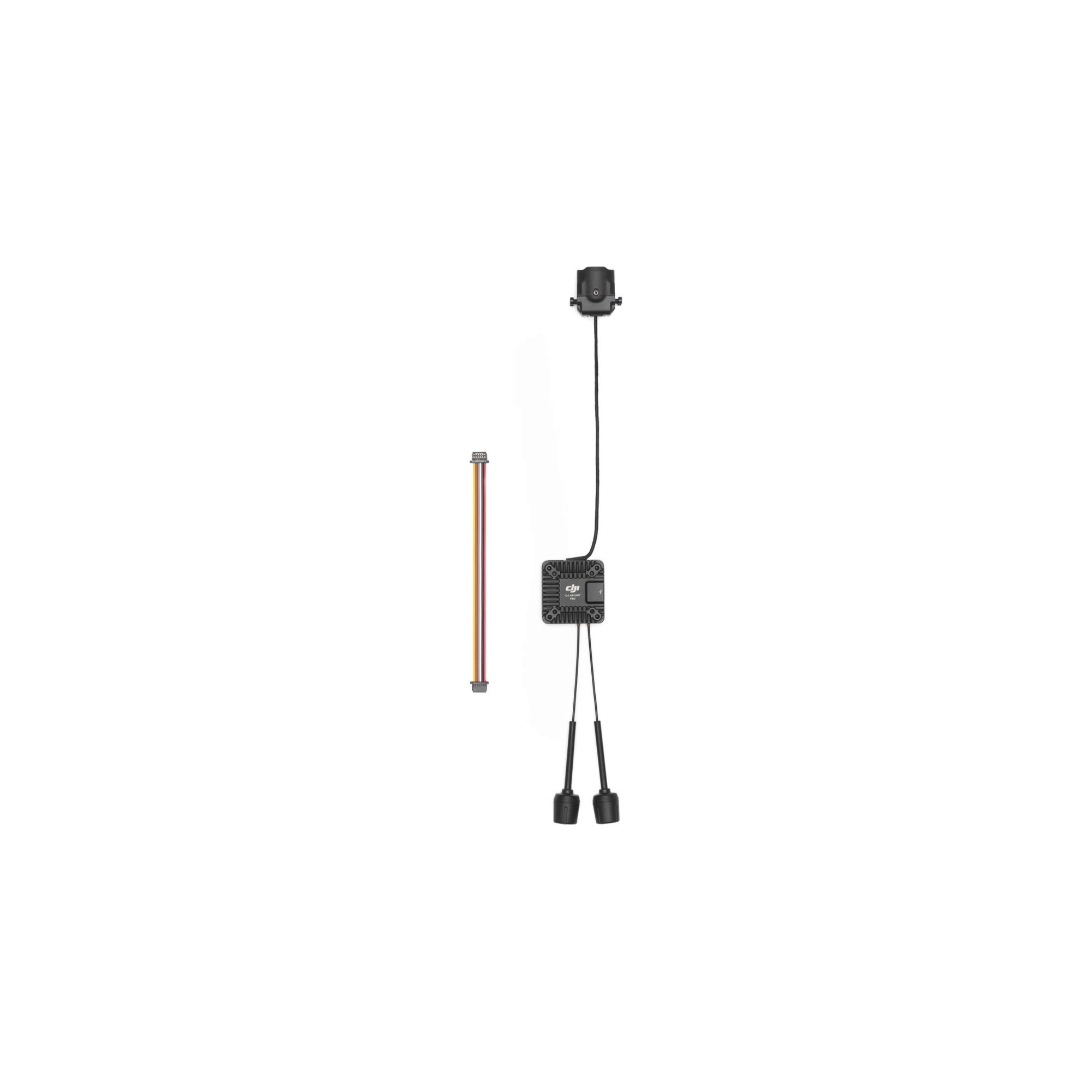

DJI Camera Module for O4 Air Unit Pro - CP.FP.00000235.01

The Camera Module for O4 Air Unit Pro from DJI is a replacement part for this FPV system.
As a whole, the O4 Air Unit Pro lets you add FPV capabilities to non-FPV-capable drones.
This camera module is an essential component of that system, providing 1080p streaming video to optional DJI Goggles at 100 fps.
The module can also capture video in the O4 Air Unit Pro's built-in memory or optional microSD card.
The module's 1/1.3" CMOS sensor is able to capture 4K120 footage at a 155° ultrawide FOV.

Stabilization Modes
RockSteady 3.0+ mode offers electronic image stabilization of footage at high speeds during video capture, while Gyroflow software (not included) lets you smooth footage offline post-flight.

General
Camera:
Image Sensor: 1/1.3" CMOS
FOV: 155°
Equivalent Focal Length: 12mm
Aperture: f/2.8
Minimum Focus Distance: 2'' / 0.6 m
ISO Range (Auto): 100 to 25,600
ISO Range (Manual): 100 to 25,600
Video Resolution (4K 4:3): 3840 x 2880 at 30, 48, 50, and 60 fps
Video Resolution (4K 16:9): 3840 x 2160 at 30, 48, 50, 60, 100, and 120 fps
Video Resolution (2.7K 4:3): 2888 x 2016 at 30, 48, 50, and 60 fps
Video Resolution (2.7K 16:9): 2688 x 1512 at 30, 48, 50, 60, 100, and 120 fps
Video Resolution (1080p 4:3): 1440 x 1080 at 30, 50, 60, 100, 120 fps
Video Resolution (1080p 16:9): 1920 x 1080 at 30, 50, 60, 100, 120 fps
Video Format: MP4
Video Bit Rate (Max): 130 Mb/s
Storage Capacity: 4 GB
Compatible Memory Cards: microSD (Up to 512 GB)

Wireless
Wireless: 5.8 GHz Radio/RF
Mobile App Compatible: No

Power
Power Source: Proprietary Interface
DC Input Power: 7.4 to 26.4 VDC

Physical
Color: Black
Operating Conditions: 14 to 104°F / -10 to 40°C
Dimensions: 1.01 x 0.9 x 0.8" / 25.55 x 23.3 x 20 mm
