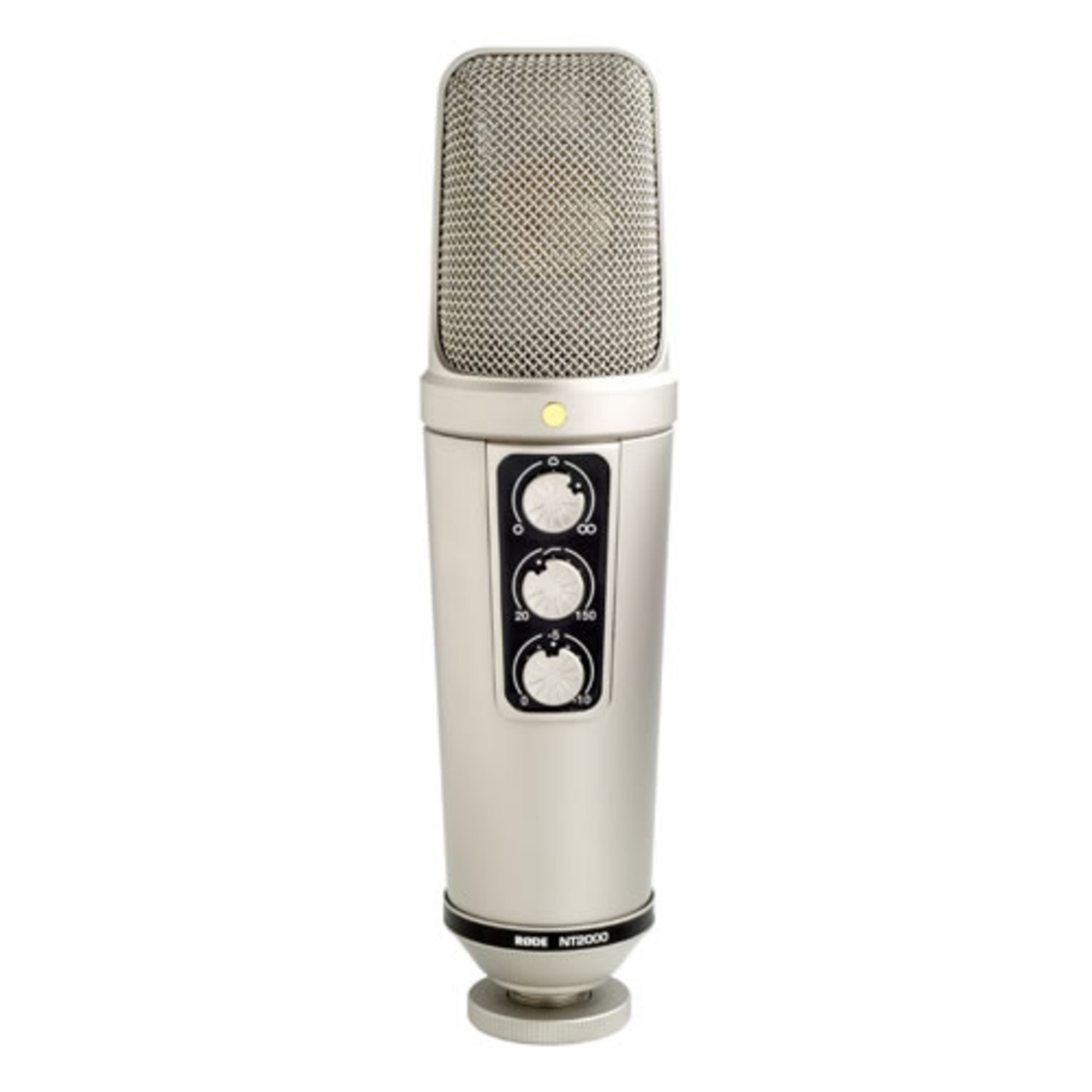

NT-2000

The RODE NT2000 is the world''s first continuously variable control microphone. Its polar response, filter adjustments and pad attenuation greatly enhance overall control and performance flexibility, while the newly designed capsule diaphragm provides the warm, detailed sound and excellent transient response necessary for a variety of recording applications.

Dual Diaphragm Design
A 1" edge terminated, gold sputtered, dual 5uM diaphragm yields a wide frequency response of 20Hz to 20kHz with a max SPL of 147dB. The dual diaphragm design provides flexible pattern and sensitivity response, making it versatile in any scenario.

Variable Polar Patterns
Cardiod, omni-directional and figure 8 patterns are user selectable. Continuously variable variations of each allow tailoring of all patterns resulting in perfect pick up settings with each use.

Variable Attenuation
Continuously variable attenuation adjusts impedance response allowing transparent, distortion free pick-up of transient signals. Attenuation range is user variable between 0 to -10dB.

Variable High Pass Filter
The NT2000 also features a user variable high-pass filter. This provides flexible user contouring over frequency response curves.

Transducer Externally polarized 25mm (1") dual diaphragm
Polar Pattern Cardioid, Omni-directional and Figure 8 switchable
Frequency Response 20Hz - 20kHz
Dynamic Range (Typical) 136dB (per IEC651, IEC268-15)
Signal-to-Noise Ratio 87dB (per IEC651, IEC268-15)
Maximum Input Sound Level 147dB (@ 1% THD into 1K ohms)
Power Requirements +48V , +24V Phantom Power
Output Impedance 200 ohms
Output Connectors 3-pin XLR-male
Pad 0 to -10dB variable
Low Frequency Roll-Off 20Hz to 150Hz variable
Dimensions (WxHxD) 2.16 x 8.18 x 2.16" (55 x 208 x 55mm)
Weight 1.83 lb (831g)
