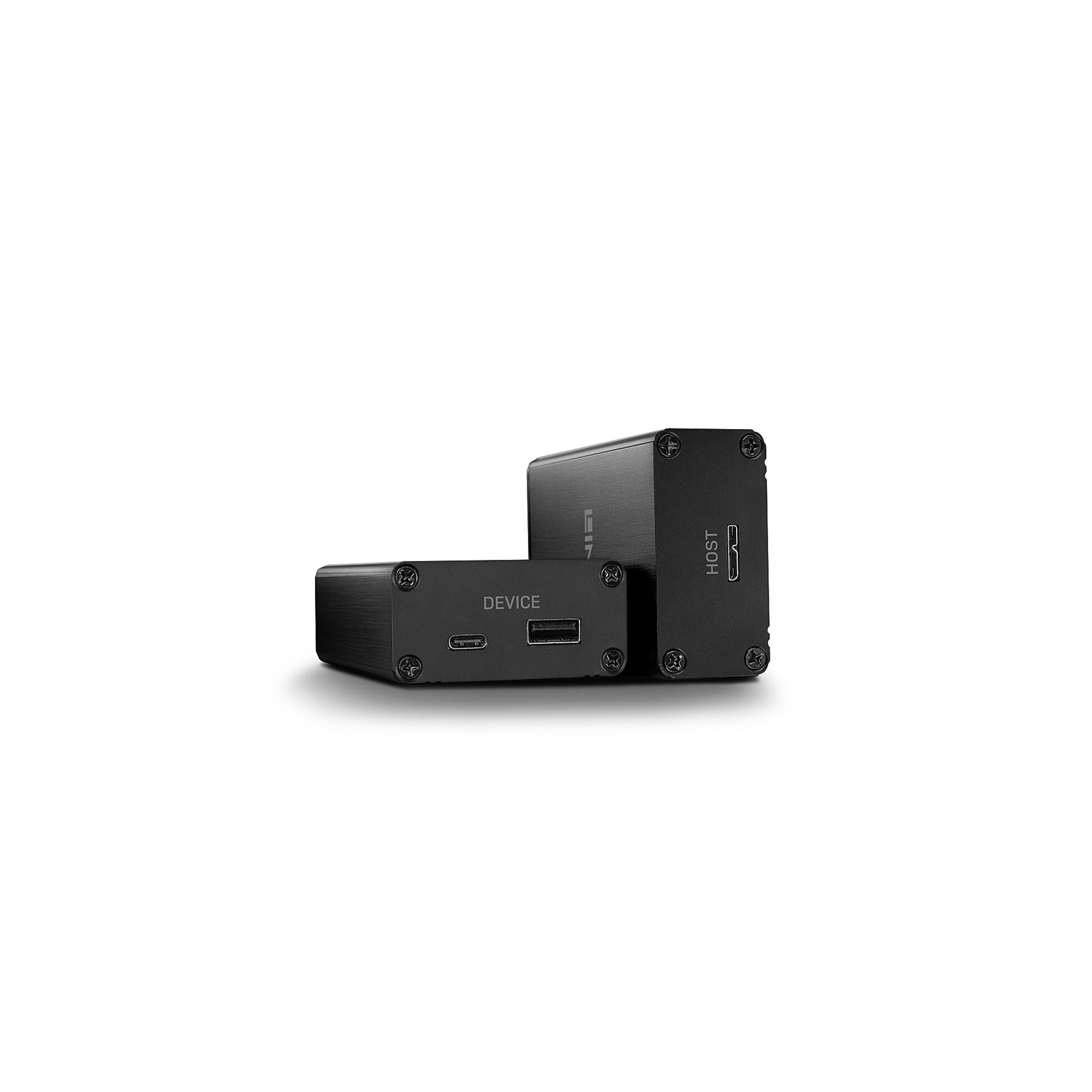

2 Port USB 3.0 Extender 300m
Lindy
₦ 958,693.79 VAT excl.
- Extends USB 3.0 connections for two USB devices (Type A and Type C) up to 300m
- Supports data transfer rates of up to 5Gbps, backwards compatible with USB 2.0 devices
- Uses standard LC duplex fiber cables
- Resistant to RF and EM interference for use in highly sensitive areas
USB fiber optic extenders allow you to extend USB signals far beyond the limits of traditional copper cabling solutions.
The Lindy 2-Port USB 3.0 Fiber Optic Extender 300m supports SuperSpeed transfer rates of up to 5Gbps.
This extender is a complete two-part hardware solution, consisting of a transmitter that connects directly to the user's computer and a receiver that connects to two USB devices, using a duplex LC fiber cable.
The extender is ideal for long distance use with remote desktop connections, industrial control systems, surveillance control rooms or conference rooms, and external storage applications.
This device is fully compatible and can be used to extend the signals of USB 3.2/3.1/3.0 4K webcams and video conferencing systems.
Off-the-shelf duplex LC fiber cabling provides a greater level of flexibility in choosing the cable length to meet installation requirements.
Using fiber optic transmission, this extender offers high resistance to EMI and RFI, perfect for use in noisy areas such as hospitals, large retail installations, or industrial buildings.
*Please note: This extender is backwards compatible with USB 2.0 devices. Some USB 2.0 cameras use a different timing standard and may therefore be incompatible.
About USB 3.0, USB 3.1 & USB 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, devices and cables are all compatible with each other using either USB Type-A or Type-C interfaces.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support transfer speeds up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support transfer speeds up to 10 Gbps.
General
__________________
USB Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0
Supported Bandwidth: 5Gbps
Maximum Distance: 300m (984.24ft)
Transmission Medium:
- 69m (226.38ft) - 1 x Multimode 62.5µm/125µm OM1
- 138m (452.75ft) - 1 x Multimode 50µm/125µm OM2
- 300m (984.24ft) - 1 x Multimode 50µm/125µm OM3
Special Features: Supports control, bulk, interrupt, isosynchronous data transfer
Connectors
__________________
Inputs of the Transmitter: USB Micro-B (Female)
Transmitter Outputs: Duplex LC (Female)
Receiver Inputs: Duplex LC (Female)
Receiver Outputs: 1x USB Type A (Female), 1x USB Type C (Female)
Power Supply: 5.5/2.1mm DC
Physical
__________________
Body Material: Metal
Operating Temperature: 0° - 50°C (32°F - 122°F)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Humidity: 20 - 80% RH (non-condensing)
Power Requirements: 5V DC 3A
Color: Black
Dimensions WxDxH: 57x93x28mm (2.24x3.66x1.1in)
Net Weight:
- Transmitter: 0.125kg (0.28lb)
- Receiver: 0.129kg (0.28lb)
1x Transmitter
1x Receiver
1x Multi-Country Power Supply DC 5V 3A (EU/UK/US/AUS)
1x Manual
