Micro-HDMI 18G 38322
Lindy
₦ 493,749.00 VAT excl.

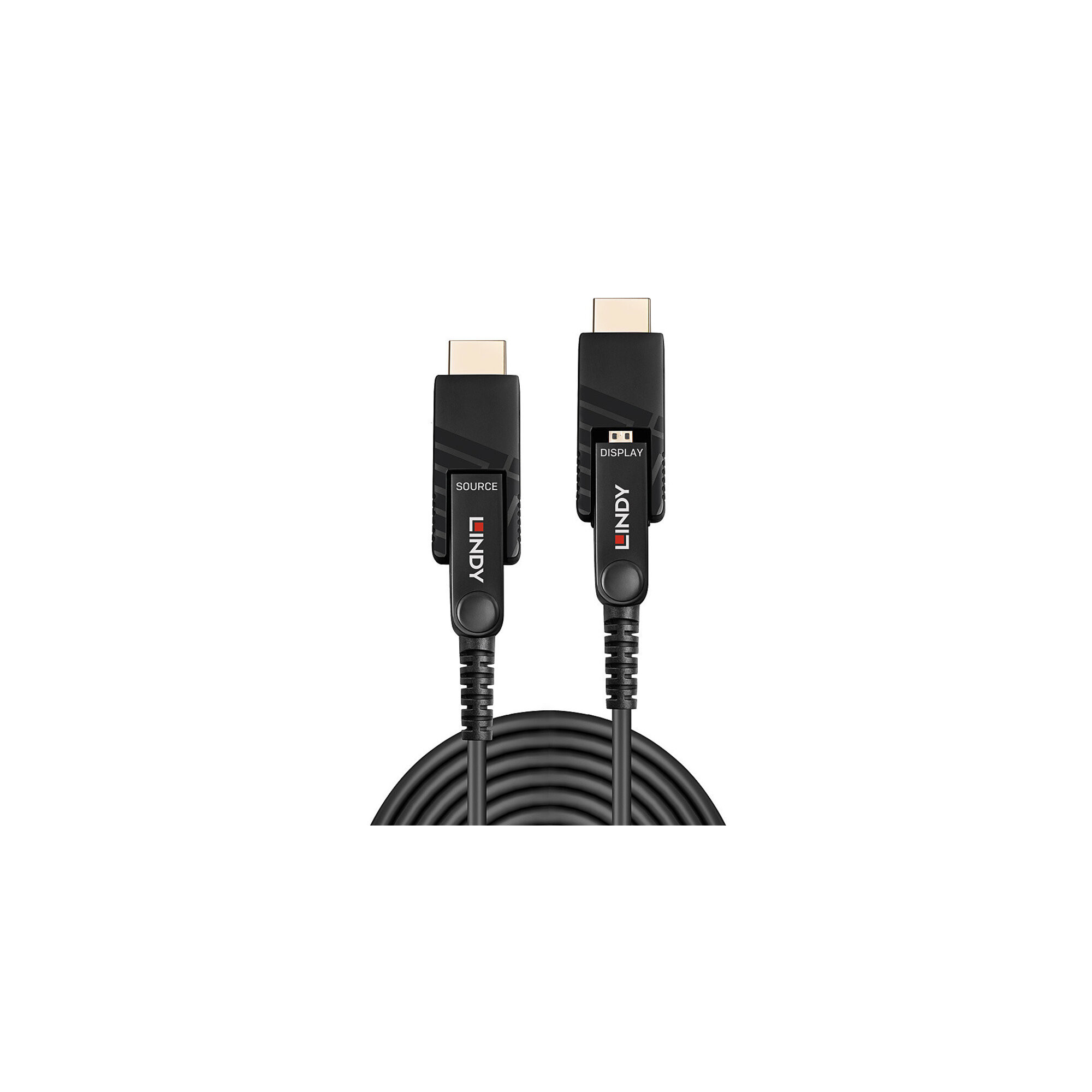

Micro HDMI Male Male Connectors with HDMI & DVI adapters
Supports HDMI 2.0 18G resolutions up to 4K @ 60Hz with HDR
Metal connectors
Hybrid Micro-HDMI 2.0 18G cables with removable connectors for extending Micro-HDMI, HDMI & DVI signals over long distances, without the need for any additional adapter. Thanks to the flexibility and resistance to EMI & RFI interference, these hybrid cables are the ideal solution even in critical AV installations.
The very thin cables and with Micro HDMI connectors, compact and in metal, can be easily inserted in corrugated or in narrow spaces without damaging the internal structure of the cable, while the HDMI and DVI adapters can be added after laying the cable if necessary. This innovative design allows for maximum flexibility for different types of installation including applications from HDMI to DVI, HDMI to HDMI or DVI to DVI.
They support all the specifications of the HDMI 2.0 18G standard, resolutions up to 4K 60Hz, to transmit the best possible resolution in any AV application. Support for static and dynamic HDR signals allows you to view high-quality video content with a wider color gamut and better contrast.
Connectors
Connector A: Micro-HDMI Male
Connector B: Micro-HDMI Male
Connector material: zinc alloy
Connector Plating: Gold Plated
Pin composition: gold plated brass
Pin Plating: Gold Plated
Dimensions (approx.) WxDxH:
Micro HDMI connector: 44.2x12.7x7.1mm (1.74x0.5x0.28in)
HDMI connector: 48.2x20x10mm (1.9x0.79x0.39in)
DVI connector: 43x40x14.5mm (1.69x1.57x0.57in)
Cable composition
Length: 30m (98.42ft)
Standard: HDMI 2.0
Black colour
Type: round
Sheath Diameter: 6mm (0.24in)
Sheath material: PVC
Conductor material: gold-plated copper
Conductor size: 24AWG
Shielding: aluminum foil
Specifications
Bandwidth supported: 18Gbps
Maximum resolution: 4096x2160 @ 60Hz 4: 4: 4 8bit
Nominal attenuation: -1dB ~ -2dB
Minimum bending radius: 60mm (2.36in)
Operating temperature: 0 ° C - 50 ° C (32 ° F - 122 ° F)
Storage temperature: -20 ° C - 85 ° C (-4 ° F - 185 ° F)
Various
Type of packaging: Cardboard box
Warranty (Years): 2
Certifications: CE, FCC, RoHS, REACH & California Proposition 65
