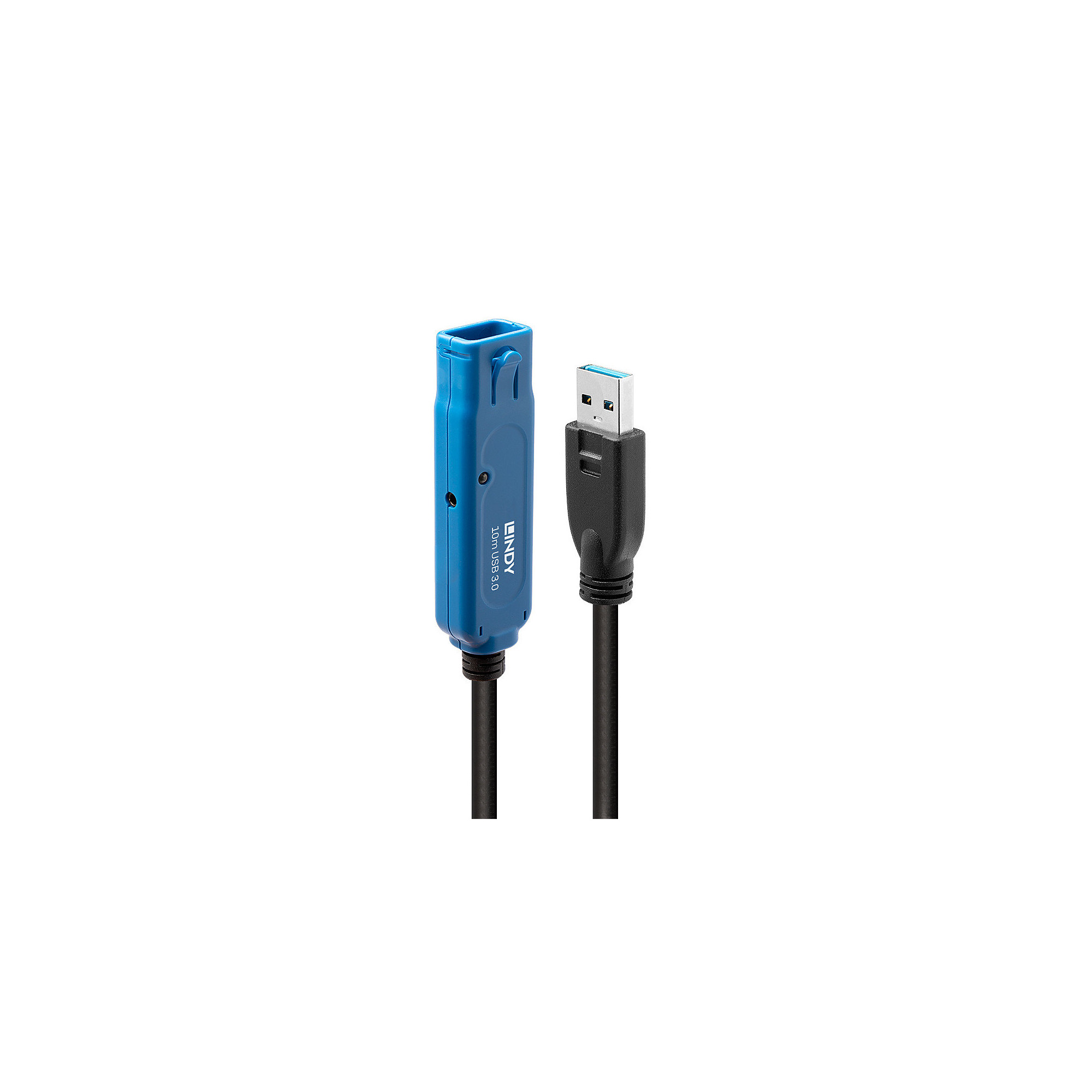

USB 3.0Pro extension cable 10m
Lindy
₦ 191,049.00 VAT excl.
High-performance active extension cable to extend a USB 3.0 signal to a distance of 10m
Can be used standalone or in combination with atre active Lindy Pro Series extensions to create routes up to 40m long (depending on the extensions used)
Supports USB 3.0 SuperSpeed specifications for data transfer rates up to 5Gbps
Easy to use - connects to a device with an integrated USB cable (2m maximum)
Active USB Pro Series high-performance extension cable for connecting USB 3.0 SuperSpeed peripherals over long distances.
Supports data transfer rates up to 5Gbps, also suitable for transferring large amounts of data quickly and reliably.
This 10m active extension cable can be used individually or in combination with other Lindy USB 3.0 Pro Series active extension cables.
This series of modular active extension cords can be daisy-chained and when connected with the USB 3.0 Pro active extension cord with hub can be connected to up to 4 USB devices up to 40m (depending on the extension cords used).
About the USB 3.0, USB 3.1 & USB 3.2 standard.
PCs, devices and cables USB 3.0, USB 3.1 and USB 3.2 are all compatible with each other using both USB Type A and Type C interfaces.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support transfer rates of up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support transfer rates of up to 10 Gbps.
Connectors
Connector A: USB Type A Male
Connector B: USB Type A Female
Power Supply: 2.5/0.7mm DC
Connector Material: Plastic
Connector Plating: Nickel
Pin Composition: Brass
Pin Plating: Flash Gold
Dimensions (approx.) WxDxH:
° USB A Male: 15x49x8mm (0.59x1.93x0.31in)
° USB A Female: 20x80x13mm (0.79x3.15x0.51in)
Cable composition
Length: 10m (32.81ft)
Standard: USB 3.1 Gen 1 / 3.0
Color: Black
Type: Round
Sheath Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
Sheath Material: Semi-opaque low toxicity PVC
Conductor Material: Tinned Copper
Conductor Size: 24/24/20AWG
Shielding: Aluminum foil and braid
Specifications
Supported bandwidth: 5 Gbps
Nominal Attenuation:
° 0.064MHz - <0.08dB
° 0.256MHz - <0.11dB
° 0.512MHz - <0.13dB
° 0.772MHz - <0.15dB
1.0MHz - <0.20dB
4MHz - <0.39dB
8MHz - <0.57dB
12MHz - <0.67dB
24MHz - <0.95dB
48MHz - <1.35dB
96MHz - <1.90dB
200MHz - <3.20dB
° 400MHz - <5.80dB
Minimum bending radius: 36mm (1.42in)
Maximum tensile load:-
Operating temperature:0°C - 50°C (32°F - 122°F)
Storage temperature: -20°C - 60°C (14°F - 140°F)
Transmissive Medium:Twisted pair
Transmissive Technology:USB 3.1 Gen 1 / 3.0
Various
Packaging Type: Cardboard box
Package size: 240x200x70mm (9.45x7.87x2.76in)
Net weight: 0.75kg (1.65lb)
Total weight: 0.9kg (1.98lb)
Warranty (Years): 2
Certifications: CE, FCC, RoHS, REACH & California Proposition 65
Active USB 3.0 Pro Extension Cable, 10m
Power adapter cable No. 70265
Manual
