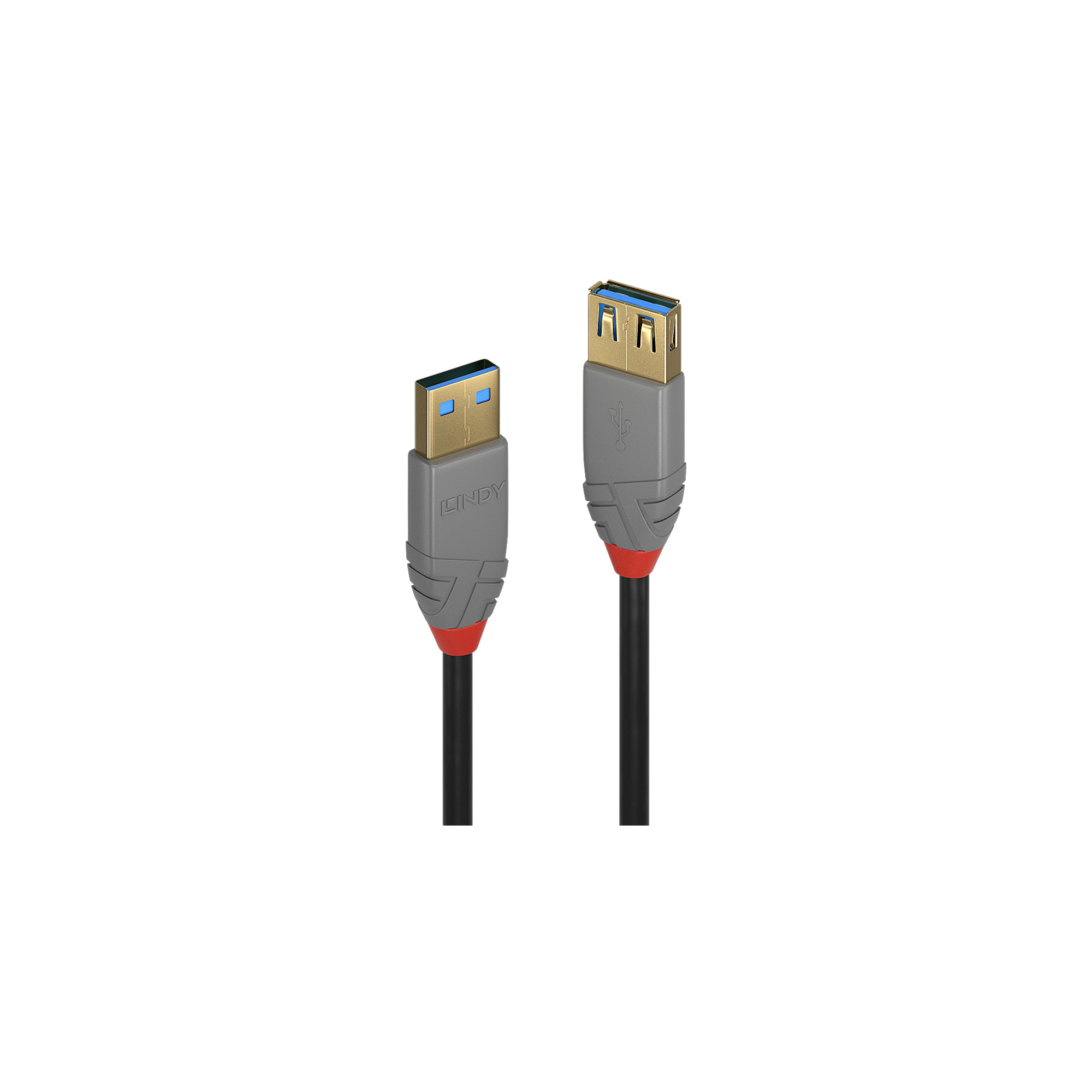

USB 3.2 extension - Type A
Lindy
₦ 35,149.00 VAT excl.
SuperSpeed USB - supports data transfer rates up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
Rugged PVC construction, gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper conductors
Lindy's Anthra Line System USB 3.2 Type A to A extension cables are the professional's choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High-quality gold-plated contacts and connectors maintain optimum signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for fast transfer of large volumes of data.
Anthra Line USB 3.2 Type A to A extension cables are available in the following lengths: 0.5m, 1m, 2m and 3m.
We've changed the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10Gbps
USB 3.2 Gen 2x2 is a new standard that supports data transfer rates up to 20Gbps
USB 3.0, USB 3.1, and USB 3.2 PCs, cables, and devices are all compatible with each other, when using a USB Type-A or USB Type-C host interface.
Connectors:
Connector A: USB 3.2 Type A Male
Connector B: USB 3.2 Type A Female
Connectors material: PVC
Connector Plating: Gold Plated
Pin Composition: Copper
Pin Plating: Gold Plated
Dimensions (approx.) LxWxH:
A(M): 15.5x35x7.8mm (0.61x1.38x0.31in)
A(F): 17x35x9.8mm (0.67x1.38x0.39in)
Cable composition:
Length: 2m (6.56ft)
Standards: USB 3.2 Gen 1
Black colour
Type: Round
Sheath Diameter: 5.5mm (0.22in)
Sheath material: PVC
Conductor Material: Tinned Copper
Conductor Wire Rating: 24AWG
Conductor diameter data: 28AWG
Shielding: 85% aluminum braid
Specifications:
Bandwidth supported: 5Gbps
Maximum resolution: -
Nominal Attenuation: 0.5-5m: 0.5MHz-7.5GHz<25DB
Minimum Bend Radius: 48mm (1.89in)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage temperature: 0°C - 60°C (32°F - 140°F)
ATC Certification:-
1 x USB 3.2 Type A extension cable, 5 Gbit/s, Anthra Line, 2m - 36762
