H513

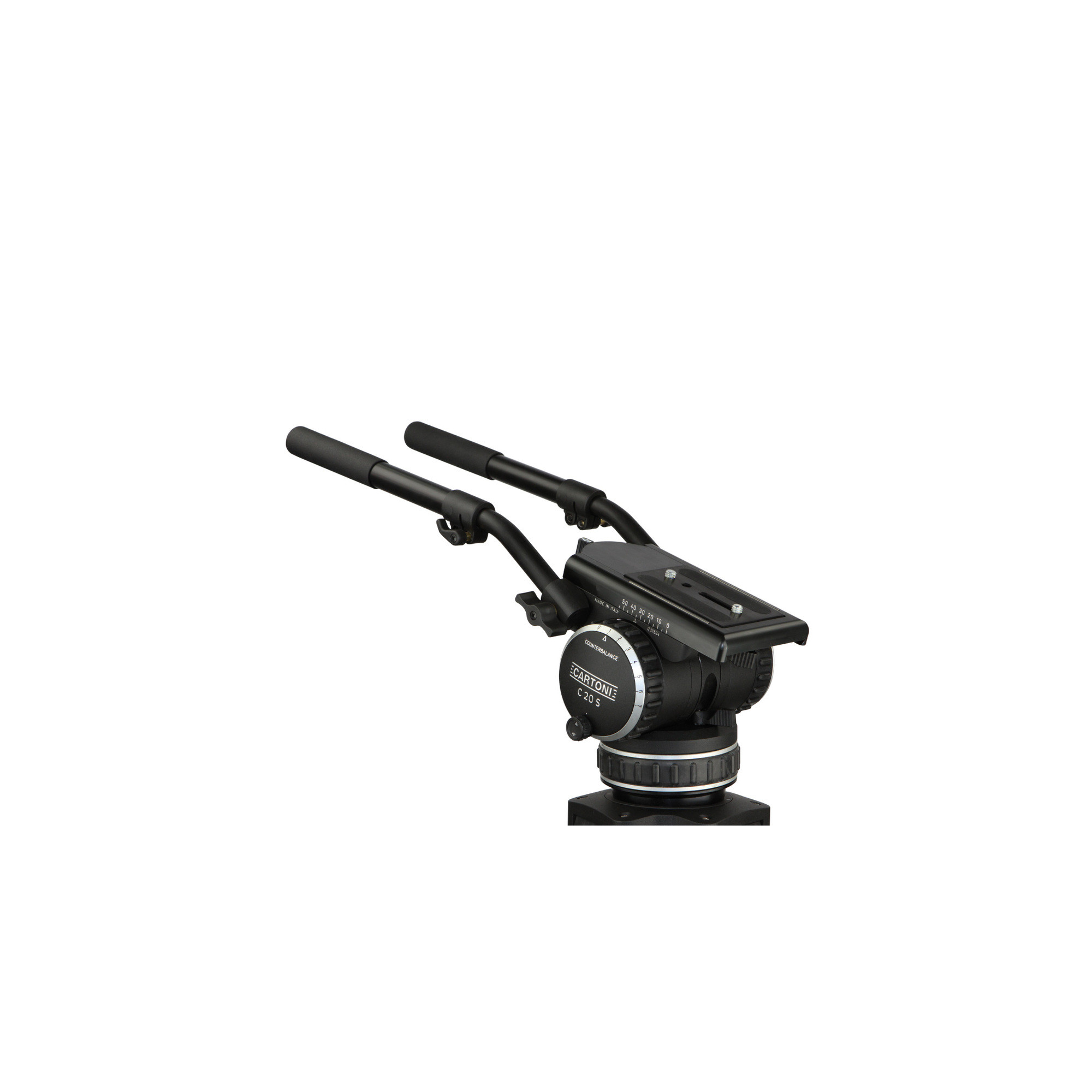

Designed to provide an extremely stable support for standard EFP configurations, the C20S is ready to operate with a wide range of cameras weighing from 7 to 32 Kg (15 to 71 lbs). C20S features three award winning fluid damping modules assuring outstanding drag levels and extraordinary smoothness in both pan and tilt modes.

Movements can be selected with 7 precisely repeatable steps of drag, while free wheeling is available by simply setting the drag selector ring into position "0". Counterbalance is activated by an easy grip selector in 7 progressive steps and "0".

The C20S comes with a 100 mm bowl base, illuminated spirit level and one telescopic pan bar. A 150 mm bowl base is also available as an option.

Minimum Payload Capacity 0 kg
Maximum Payload Capacity 32 kg
71 lbs
Weight 6.5 kg
14.3 lbs
Bowl Diameter 100 mm
Fluid Drag 7 steps + 0
Counterbalance 7 steps + 0
Pan Range 360°
Tilt Range +/-65°
Temperature Range -40°/+60°
