H514D

Counterbalance System with 7 Settings plus 0

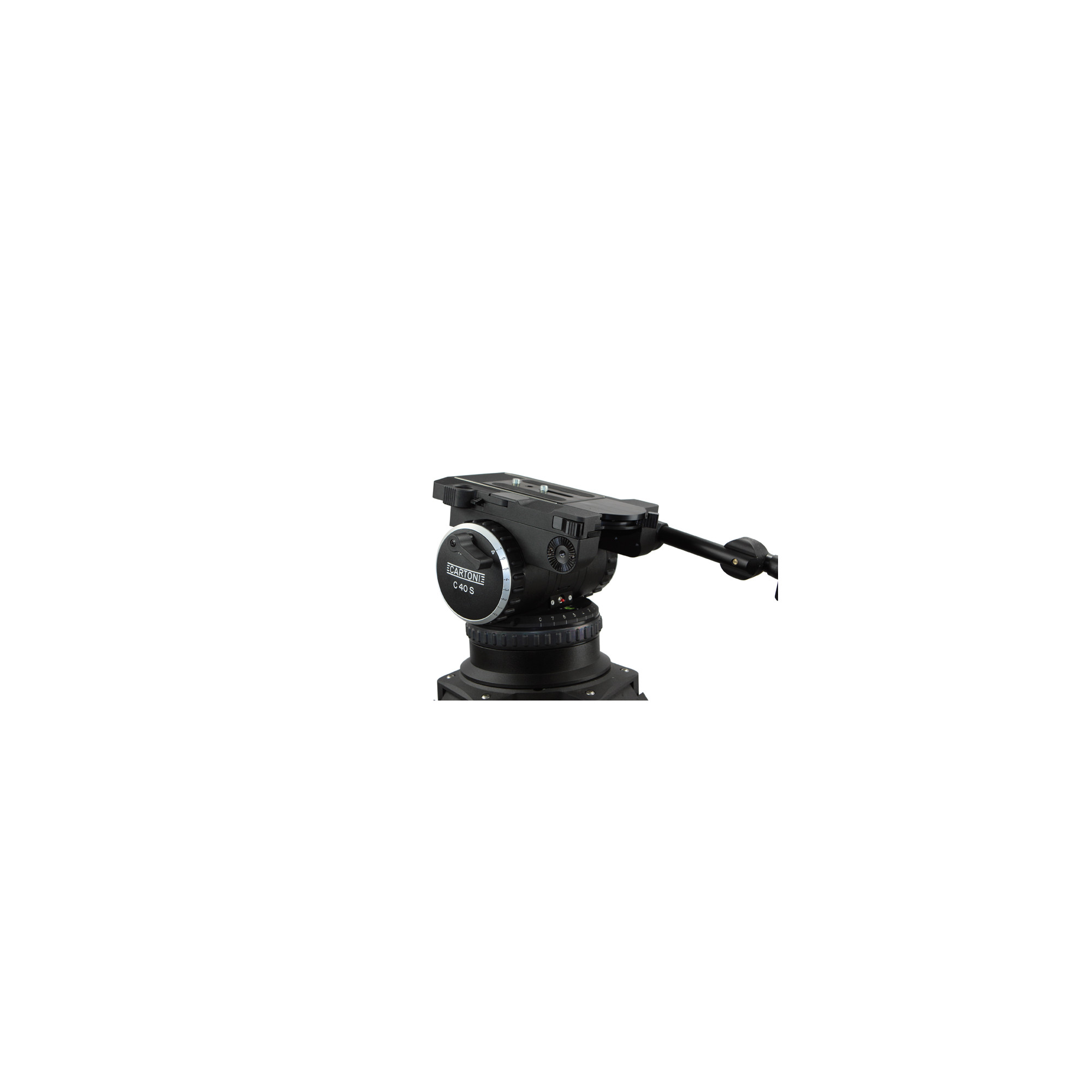

The C40 S features an 8-position easy grip selector with a 150mm sliding balance plate, allows the cameraperson to fine tune an extremely wide range of cameras weighing from 22 lbs to 100 lbs throughout a tilt range of -/+ 65 degrees. Additional tilt angle can be also achieved by turning the tilt knob to OFF position, provided the counterbalance selector ring has been previously set to "0".

Pan and Tilt Control
Features 3-fluid damping modules, which assure outstanding, drag levels and extraordinary smoothness in both pan and tilt functions. Pan and tilt movements can be dampened with 7 precisely repeatable steps of drag, while freewheeling is obtained by simply setting the relevant selector ring to position "0". With the ability to select any combinations of fluid drag and dynamic counterbalance allows quick response to any situation and repeat the same setting again and again.

150mm sliding balance plate allows tilt angle to be increased up to +/-65 degrees

Built-in illuminated spirit level allows easy set-up even in low light conditions

Maximum load capacity of: 110 lb


Load Capacity

Payload capacity

200 mm (8'''') 39kg (86 lbs)
150 mm (6'''') 45 kg (99 lbs)
100 mm (4'''') 54kg (119 lbs)

Diameter/Thread Flatbase
Counter Balance System Single Spring Module
Counter Balance Range 15 to 100 lb, 7 Settings + 0
Center of Gravity 4"
Quick Release/Wedge Plate Yes (Cat #K512)
Balance Plate 150mm Sliding Plate, 2x 3/8" Screws
Tilt Drag 7 Settings
Tilt Range -65/+65°
Tilt Lock Yes
Spring Loaded Counter Bal 7 Settings
Pan Range 360°
Pan Lock Yes
Leveling Bubble/Illuminated Yes, Illuminated
Temperature Range -22° to +158°F (-30° to +70°C)
Weight 23.5 lb
