ASP1000-P

Name: ASP1000-P
Brand: Brinno
SKU: ASP1000-P
Price: 773998.93 NGN
Availability: OutOfStock

Brinno

EAN: 4712417432027

Solar Panel Kit (ASP1000) + Rechargeable Battery (APB1000)

go to the technical sheet

₦ 773,998.93

₦ 719,999.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 77,399.89

Available in 9 days

Not sure if this is the right product for you? Talk to a consultant

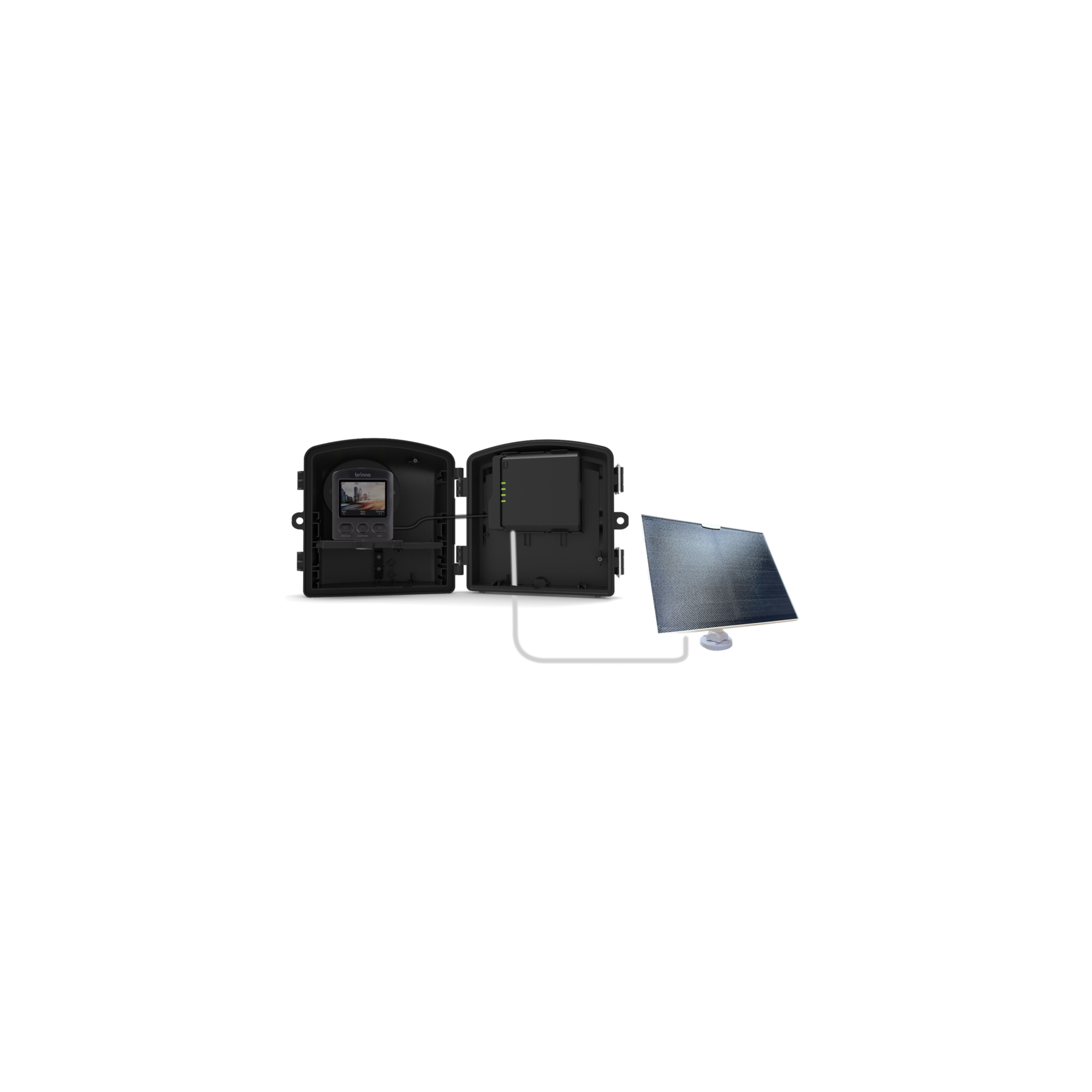

Brinno Solar Panel Kit (ASP1000) + Rechargeable Battery (APB1000)

The Brinno Solar Power Kit is specifically designed for the Brinno BCC2000 & BCC2000 Plus construction camera bundles.
It includes a 10W monocrystalline silicon solar panel with higher conversion efficiency and the Brinno Rechargeable Battery kit.
It generates a continuous power supply for the time-lapse camera through direct sunlight.
The solar panel is designed to be weather resistant and comes with a 9.8-foot (3 meter) USB-C power cable.
Additionally, it features an adjustable mount for easy installation in any location.

The rechargeable battery kit includes a 13,800 mAh/ 49.6 Wh rechargeable battery pack and an external power adapter.
It is specifically designed to be compatible with the Brinno BCC2000 & BCC2000 Plus construction camera bundles and perfectly fits the original power housing (ATH2000).
This kit supports continuous power supply for long-term time-lapse recording.

- 10W solar panel with a rechargeable battery kit
- A 13,800 mAh / 49.6 Wh battery pack
- Designed for continuous operation for time lapse recording
- Compatible with Brinno BCC2000 & BCC2000 Plus
- Operating temperature range: -4 °F ~ 140 °F (- 20°C to 60°C)
- The solar panel is waterproof with an IP65 rating

° Solar Panel
Solar Power Rating: 10W
Operating Voltage: 5V DC
Power Connection: USB-C
Conversion Rate: >20%
Works With: Brinno Rechargeable Battery Kit (APB1000)
Waterproof: IP65
Size:
- Solar Panel: 8.4 x 10.3 x 0.8 in (214 x 262 x 20 mm)
- USB-C Cable: 9.8 ft (3 m)
Weight: 23.2 oz (660 g)

° Rechargeable Battery Kit
Power Source: Brinno Battery Pack (MRB1000)
Energy Capacity: 13,800 mAh / 49.6 Wh
Always-On Mode: Provides continuous power supply for low power time lapse camera or IoT application.
Solar Panel Requirement:
- Output wattage: 5W (minimum), 5V
- USB-C connector
Input Port: USB-C (support 5V 2A quick charger) (on battery pack)
Output Port:
- Micro USB connector (for Brinno camera)
- USB-C port
Output Voltage & Output Current:
- 5V 2A (max. for total two output)
- Micro USB: continuous output 5V 500mA (Max instantaneousoutput 5V 1A)
- USB-C: continuous output 5V 1A
Compatible Models:
- BCC2000 & BCC2000 Plus
- TLC2000/2020 with ATH2000 construction power housing
Ambient temperature: -4 °F ~ 140 °F (-20 °C ~ 60 °C)*
Size: 3.68 x 3.22 x1.46 in (93.5 x 82 x 27.2 mm)
Weight: 9.9 oz (280 g)
