BCC2000

Time Lapse Camera, Housing & Clamp Kit
1920 x 1080 Resolution
2" TFT LCD Screen
CS Mount

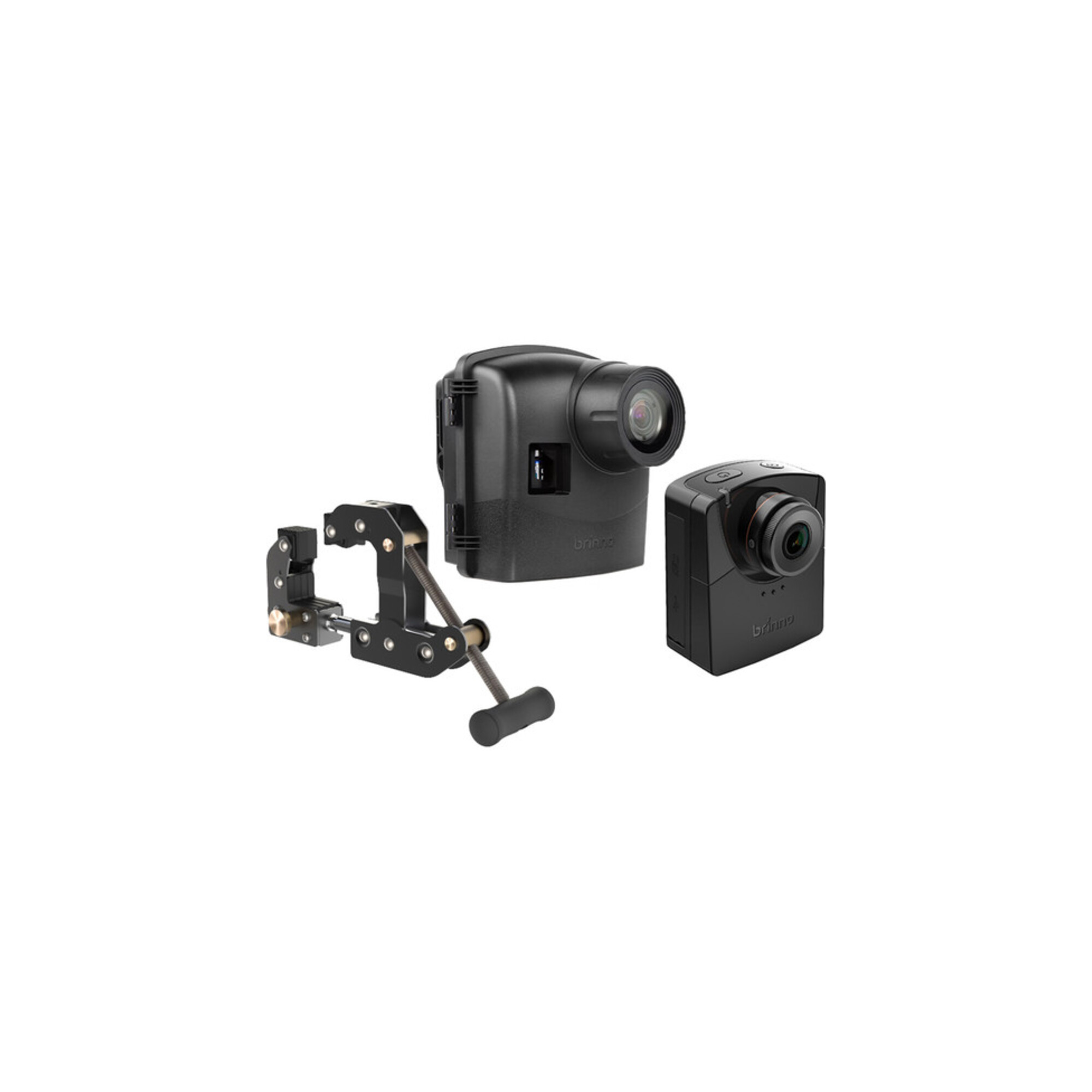

The BCC2000 Construction Trio Bundle Pack from Brinno includes an EMPOWER TLC2000 time lapse camera, ATH2000 housing, and ACC1000 clamp mount kit.

The TLC2000 uses HDR and FHD sensors to capture 1920 x 1080 resolution video in a 118° field of view. The camera's CS mount provides compatibility with Brinno BSC zoom lenses (available separately). A 2" TFT LCD screen enables users to frame their subject from the desired angle. Capture modes for the camera include time lapse, step video, stop motion, and still photo. The two included AA batteries provide battery life of up to 25 days. This device supports microSD/SDHC/SDXC cards up to 128GB. An 8GB microSD card is included.

The ATH2000 housing is designed to be used with TLC cameras from Brinno. Interchangeable lens covers lets you choose between long- and short-range shots. An included extension lens cover fits the BSC lens for close-up shots, enabling you to choose your ideal angle. This housing accepts up to 16 AA batteries (available separately), delivering months of uninterrupted recording from the camera housed in it. An IPX5 rating for protection against water makes this housing suitable for outdoor use.

The ACC1000 clamp mount kit provides a versatile mounting solution for the camera via a clamp with a 110 lb load capacity and an arm with a 6.6 lb load capacity. The arm has a 360° rotating tripod ball joint with 90° tilting that enables flexible positioning of the camera.


Time Lapse Camera Features

HDR and FHD sensors
Compatible with Brinno BSC zoom lenses (available separately)
Capture modes include time lapse, step video, stop motion, and still photo
Flexible schedule setup enables users to set video shooting schedules
Reset button
LED status indicator
0.25" tripod mount

Construction Power Housing Features

Compatible with Brinno TLC cameras
Switch between lens covers for long and close-up shots
Padlock eyelets
Cord hole for easy access to external devices
Micro-USB connector
Add up to four times more battery power via 16 AA batteries (available separately) to deliver months of uninterrupted video recording
IPX5 rated for protection against water

Clamp Mount Kit Features

360° rotating tripod ball joint with 90° tilting enables flexible positioning of the camera
Can be clamped on tubes and flat surfaces up to 3.5"
6.6 lb load capacity for arm
110 lb load capacity for clamp

In the Box

Brinno BCC2000 Construction Trio Bundle Pack
Brinno EMPOWER TLC2000 Time Lapse Camera (4th Generation)
USB Type-C Cable
2 x AA Batteries
Lens Cover
Screwdriver
8GB microSD Card
Brinno ATH2000 Construction Power Housing
Camera Mounting Adapter
Extension Lens Cover for Brinno BCS Lens
Battery Cover
Micro-USB Type C Adapter
Screwdriver
2 x Straps
Desiccant Bag
ACC1000 Clamp Mount Kit
