SO-ECHO-EX-SE3E-T3

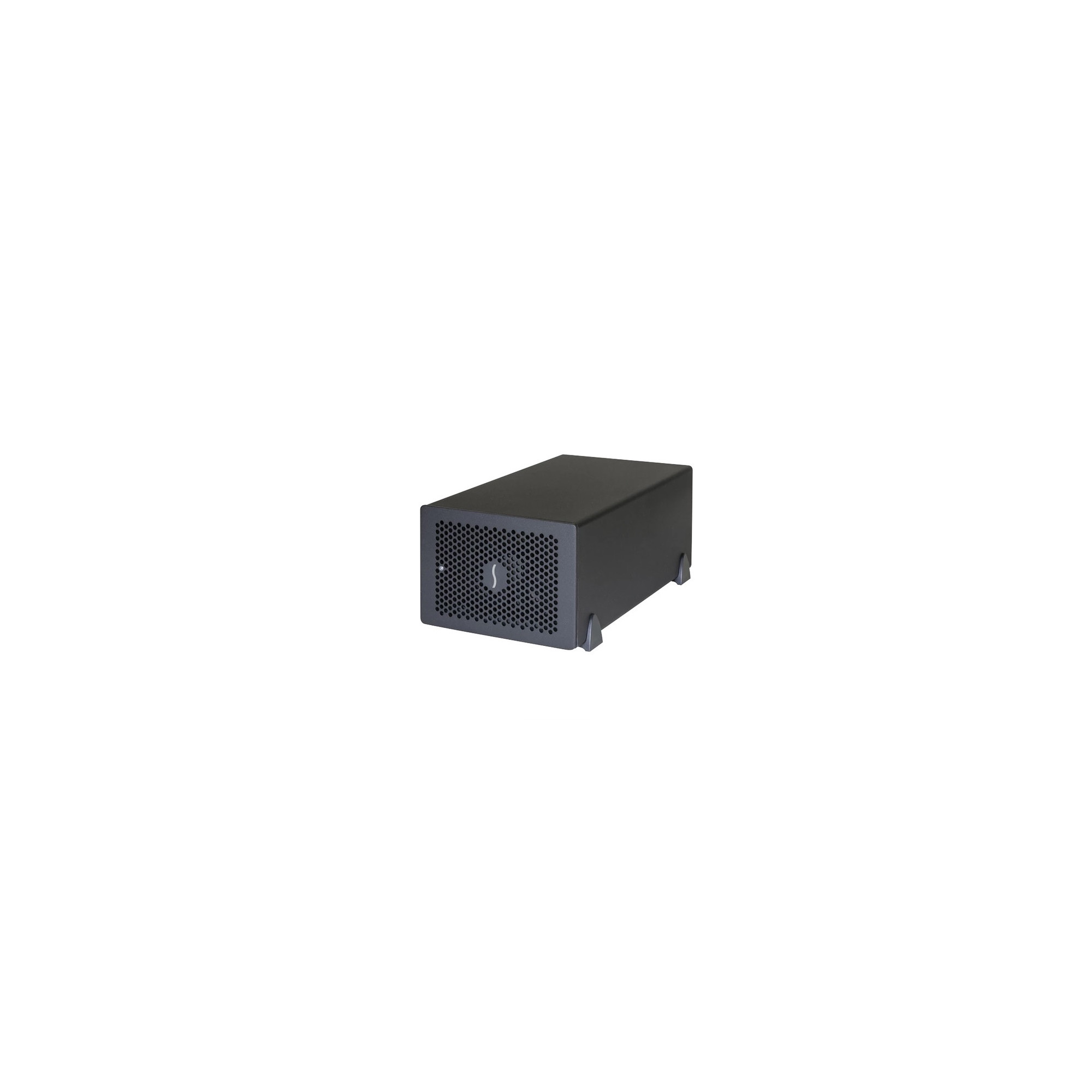

Connect three half-length, full-height PCIe cards to systems with a Thunderbolt 3 port using the Echo Express SE IIIe Thunderbolt 3 Expansion Chassis from Sonnet. The Echo Express SE IIIe is useful for expanding the connectivity of systems like the MacBook Pro, which does not have the PCIe slots needed for pros working in creative fields. Instead, the Echo Express SE IIIe connects to Thunderbolt 3 hosts to leverage this connectivity via PCIe expansion slots that are outside of the computer. This chassis has two PCIe 3.0 x8/x8 slots and one PCIe 3.0 x8/x4 slot. These three slots can support one half-length+ (up to 7.75" long), double-width, full-height PCIe x8 card, plus one single-width card, or three half-length+, full-height PCIe x8 cards for video capture, audio DSP, 6Gb or 12Gb SAS or SATA host bus adapters, 10Gb, 25Gb, or 40Gb Ethernet cards, RAID controllers, and more.

The Echo Express SE IIIe features two 40 Gb/s Thunderbolt 3 ports, one of which is used to connect to your host Windows, Mac, or Linux system and provides up to 100W of power. The second Thunderbolt 3 port, which provides up to 15W of power, can be used to daisy-chain up to 5 additional Thunderbolt devices, plus one 5K display at 60 Hz, two 4K displays at 60 Hz, or one USB 3.0 device. For power hungry cards, there is an additional internal 6-pin PCIe power connector.

Cool operations are driven by an internal 80 x 80 x 25mm cooling fan. Included with this chassis is a Thunderbolt 3 cable, a ThunderLok 3 retainer clip, a 120W universal power adapter, and a power cord. Protection is provided by a limited 2-year warranty and free lifetime technical support.

General Features
Nearly Every Thunderbolt-Compatible, Non-GPU PCIe Card Supported
Smaller than the 3-slot Echo Express III-D (Thunderbolt 3 Edition), the Echo Express SE IIIe is still large enough to support nearly every Thunderbolt 3 compatible card available. With its three x8 slots, the SE IIIe supports PCIe 3.0, PCIe 2.0, and PCIe 1.1 cards up to 7.75" long. Do you have a card in mind but aren't sure it's compatible? Sonnet put together a list in their supporting PCIe Card Thunderbolt Compatibility Chart (PDF). There you'll find cards identified as conforming to Thunderbolt technology requirements, and organized by fit and power compatibility with specific expansion system.

Design Smarts - Aluminum Enclosure, Auto Power On/Off
The inside of the Echo Express SE IIIe is wrapped in a rugged, yet lightweight aluminum outer shell, resulting in a lightweight system small enough to carry in your backpack, yet durable enough to protect the installed PCIe cards securely. Since Echo Express products automatically power on and off with your computer, there is no power switch on the chassis, ensuring you don't waste energy by forgetting to turn it off.

Thunderbolt 3 Cable and ThunderLok 3 Included
Sonnet includes a 2.3' 40 Gb/s Thunderbolt 3 cable that, unlike some other cables, transfers data at Thunderbolt 3's full 2750 MB/s bandwidth and supports up to 100W of Power Delivery (PD). Sonnet also provides a ThunderLok 3 Thunderbolt connector retainer clip that prevents accidental cable disconnections. Just slide it over one end of the cable and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, the ThunderLok remains on the cable so it won't get lost when not in use.

Thunderbolt 3 / USB Type-C
The Echo Express SE IIIe includes two Thunderbolt 3 ports. The first connects it to your computer, while the second supports the daisy-chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer. The SE III also includes 10 Gb/s USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter. For connected peripherals requiring extra power, 15W is provided to connected bus-powered devices. With the ability to handle multiple demanding, high-performance PCIe cards, support for connecting two 4K displays at 60 Hz or one 5K display at 60 Hz, and support for a vast array of Thunderbolt and USB devices, Thunderbolt 3 is a leap forward.

Operating system compatibility
Mac
Mac system with Thunderbolt 3 ports
Mac system with a Thunderbolt 2 port or Thunderbolt with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 cable
-macOS 10.12.6 or later
-Compatible with macOS Catalina

Windows

Windows system with Thunderbolt 3 ports
Windows 10 (64-bit edition, version 1809 or later)

Note: Windows computers require the latest BIOS and Thunderbolt drivers to support this product. Check with your computer manufacturer for update information.
Linux

-Linux system with Thunderbolt 3 ports
- Linux kernel 5.0 or later
