SO-ECHO-EXP-SE1-T3

SO-ECHO-EXP-SE1-T3

Sonnet

732311012051
Sonnet Echo Express SE I - expansion chassis Thunderbolt 3 - PCIe
go to the technical sheet
₦ 805,120.00

₦ 748,949.00 VAT excl.

Available in 24 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

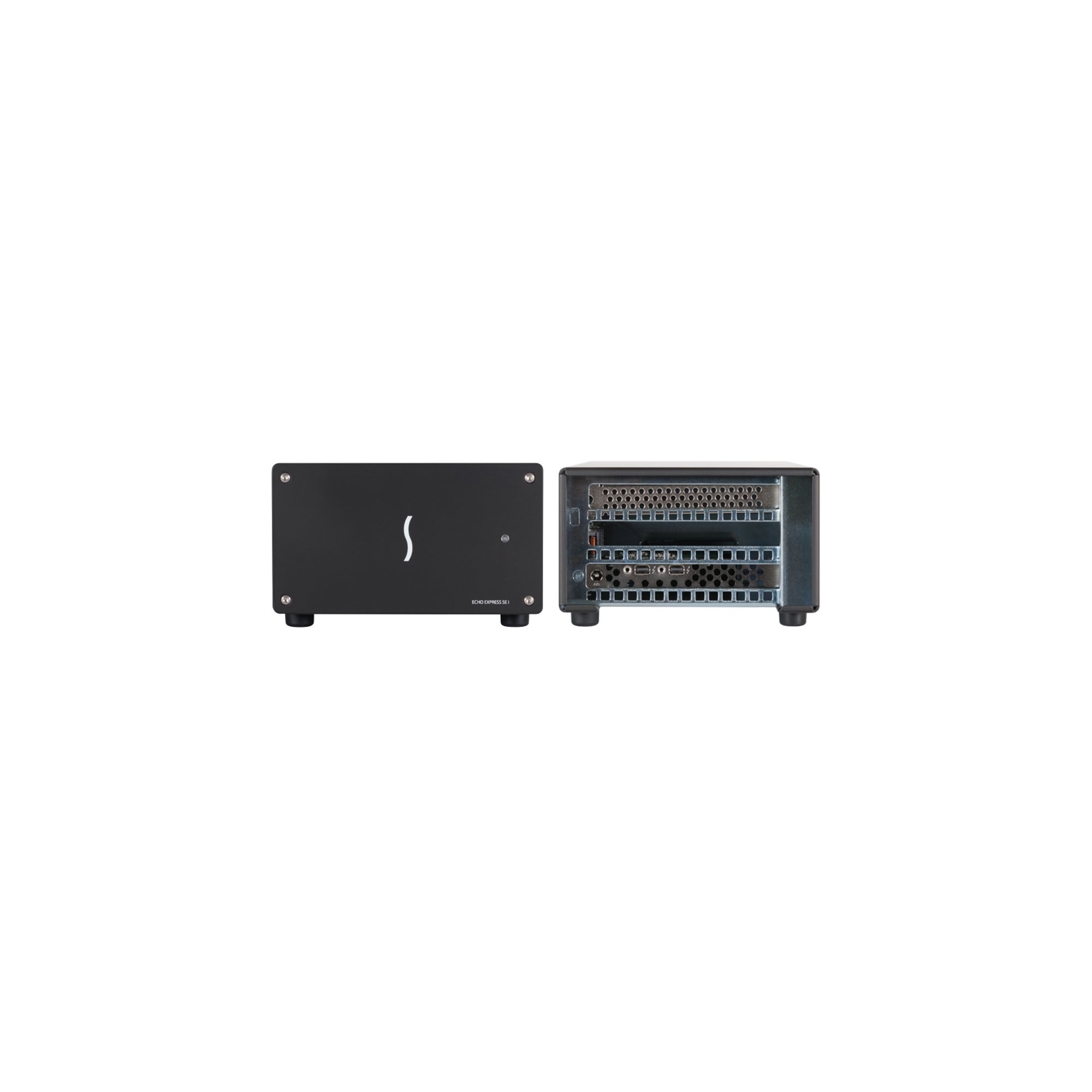

Ultra-light notebooks, small form factor and all-in-one Mac, Windows and Linux computers are slender, and frequently offer a lot of processing power, but thinness comes with a cost—there's nowhere for you to install PCIe cards for the additional connectivity and processing capabilities beyond what's offered by a computer's standard ports. Sonnet's Echo Express SE I is a compact, desktop Thunderbolt 3 to PCIe card expansion system that fixes that issue, enabling you to connect a single PCIe card to any computer with Thunderbolt 3 ports.
The Echo Express SE I is not compatible with the DeckLink 4K Extreme 12G card due to daughter card mounting requirements.

General
Expansion Slots 1 x PCIe 3.0 x8 (x4 mode)
Supported PCI Card Sizes Full-Height, Half-Length, Single-Width
Maximum GPU Length 7.75" / 19.68 cm
Ports 2 x USB Type-C Thunderbolt 3
Data Transfer Rates Thunderbolt 3: 40 Gb/s
Operating System Support Windows, macOS/OS X
Power
Power Source Type 60 W External Adapter
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature 32 to 95°F / 0 to 35°C
Physical
Form Factor Desktop
Certifications RoHS, as per Manufacturer
Host Cable Length 1.64'' / 0.5 m
Dimensions 5.6 x 8.6 x 3.5" / 14.2 x 21.8 x 8.9 cm
Weight 2.6 lb / 1.18 kg
Packaging Info
Package Weight 4.55 lb
Box Dimensions (LxWxH) 11.65 x 6.95 x 5.9"
