PixelTube AX1

16 Individually Addressable LED Emitters
Suitable for Direct or Accent Lighting
For Theatrical / Event Design Elements
CRI Rating of 88

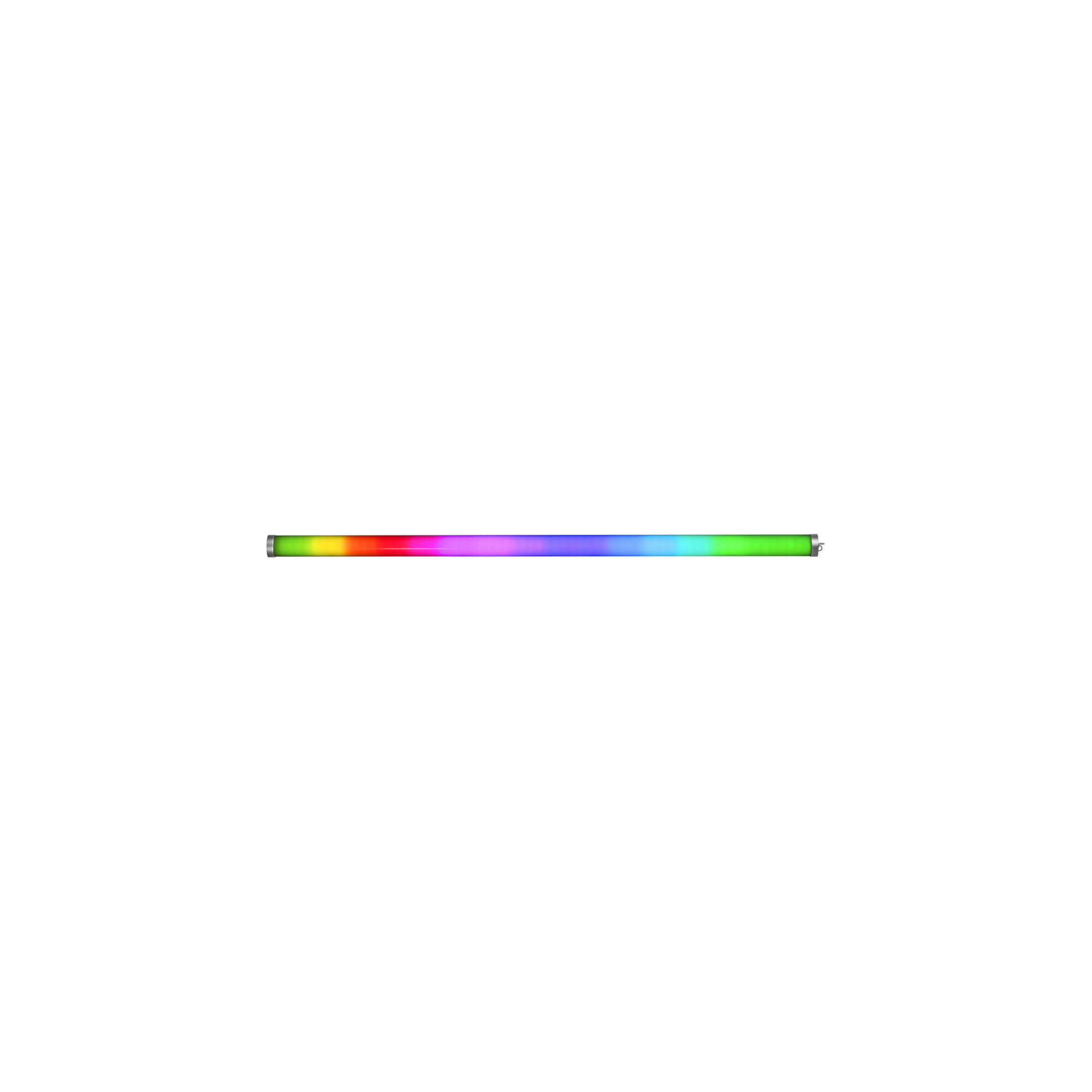

The Astera AX1 Wireless PixelTube is a wireless DMX LED light fixture with an integrated battery that is suitable for a variety uses in cine, theatrical, and event productions. The AX1 features 16 individually addressable LED emitters in a 40.7" long tube that you can mount into a set, on a stand, hang from a grid, or even hold in your bare hand. The AX1 features a CRI rating of 88, which provides for good color rendition. The fixture can be used to create a soft, direct light on your subject or be used as an accent light as well as a design element in the location or set.

The fixture features five different Dimming Curve modes, as Astera refers to it. Selection of these modes along with the Pulse Width Modulation dimming of the fixture enables flicker-free video shooting. The PixelTube features an integrated lithium-ion battery that charges in approximately 7 hours using the included charger and has a run time of 20 hours. It can be controlled remotely by IR, a downloadable app, and wireless DMX. The PixelTube has an IP rating of 65 for dust and water ingress, when the rubber plug to cover the charging port is in place. The IP65 rating means the fixture is completely dust tight, and it is impervious to low-pressure jets, which means you can use this fixture in dusty environments and in wet conditions.
Control

You can use an Astera ARC1 infrared remote control (not included); simply point it at individual lights to set the desired effect.
The downloadable AsteraApp is an efficient way to quickly create a customized lightshow using your Android device. It can group several lights together, address individual lights or groups of lights, and send complex effects with a user defined color palette to all lights in range. Please note the AsteraBox (not included) is required to control the light fixture through the app. You can also use the Astera ARC2 remote control (not included).
The light can also be controlled by CRMX wireless DMX, as the built-in receiver is compatible with all LumenRadio CRMX transmitters as well as W-DMX G2,G3, G4 and G4S transmitters, although G4 and G4S is only supported in 2.4 GHz mode.
You can also use an Astera ART3 Wireless DMX Transmitter to send DMX in the UHF frequency band, although CRMX is the recommended method.

Wireless Modules
865 to 870 MHz
902 to 928 MHz
2.4 GHz
TruColor Calibration
100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels
Seamless Runtime
Set the length of your event and be sure that your lights won't run out while still getting the maximum brightness
Talkback +
Detect all available lights, set them up, check their status, and configure DMX addresses and DMX profiles
Flicker Free Filming
Scrambled PWM (Pulse Width Modulation) technology is used to prevent flickering when filming the lights
Scheduled Standby Mode
You can switch the Astera AX1 into standby mode to save power, and schedule them to wake up when the event starts
DJ Application
Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects
Dynamic Power Boost
The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colors
Dimmer Curve
You can set the fixture's dimming response depending on the application you are using the light for:

FAST: For pixel mapping and similar applications, provides a totally unfiltered response
STANDARD: Good compromise between response and smoothness for most applications
HALOGEN: When slow and smooth dimming is required, emulates the characteristics of a halogen light
THEATER: For theater use, provides very smooth response and increased dynamics although some colors are darker in this mode
TV: For filming on Broadcast and other shows. The dimming response is faster but still smooth dimming. Although this mode produces less blue light due to its fixed white point of 6500K, it also provides increased dynamics with some colors being darker
