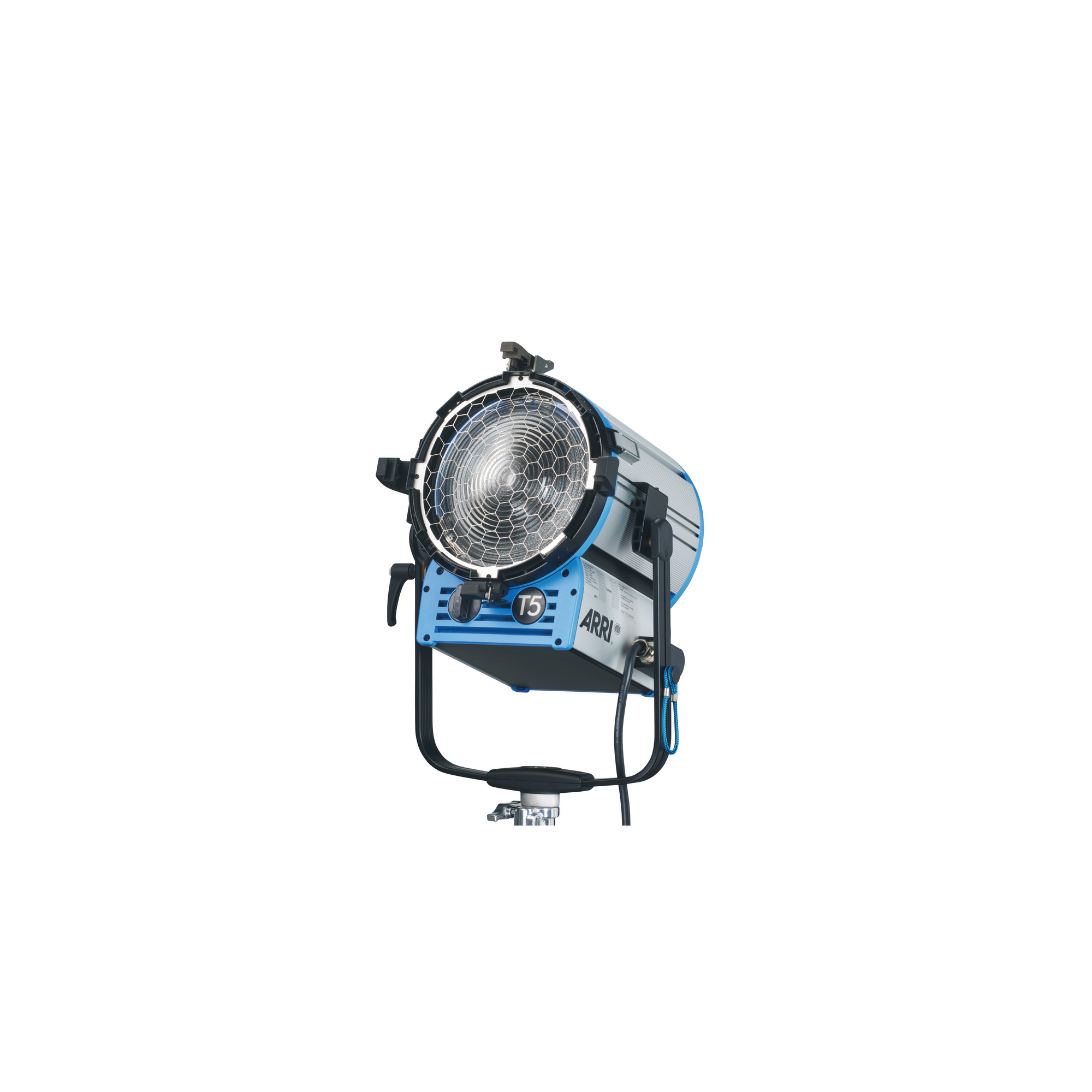

True Blue T5 MAN

SeriesTrue Blue T
ModelTrue Blue T5
Mains PlugBare Ends
Lamphead TypeFresnel, 5,000 W
ReflectorSpherical specular high purity aluminium
Lamp Type230 V: 5,000 W (CP85); 120 V: 5,000 W (DPY/CP29)
Power Consumption5,000 W
Voltage Range230 V / 120 V
Lamp BaseG38
Dimmingyes, 0 to 100 % via external dimming system
Correlated Color Temperature3,200 K
Beam Angle10° to 54°
Weight in kg net*approx. 12 kg
Weight in kg packed*approx. 17 kg
Weight in lbs. net*approx. 26 lbs
Weight in lbs. Packed*approx. 37 lbs
Measurements (HxWxL) incl. Pin in mm*655 x 465 x 390 mm
Measurements (HxWxL) excl. Pin in mm*522 x 465 x 390 mm
Measurements (HxWxL) incl. Pin in inch*25,8 x 18,3 x 15,4"
Measurements (HxWxL) excl. Pin in inch*20.6 x 18.3 x 15.4"
Measurements (HxWxL) Packed size in mm*495 x 510 x 555 mm
Measurements (HxWxL) Packed size in inch*12.5 x 20.1 x 21.9"
Lens / UV-Protection Glass Diameter in mm250 mm
Lens Diameter in inch9.8"
Accessory Diameter in mm330 mm
Accessory Diameter in inch13.0" (Scrim)
Barndoor in mm344 mm
Barndoor in inch13.5"
MountingSpigot 28 mm / 1 1/8" (1.1")
Housing ColorBlue/Silver, Black
Protection Class / IP RatingI / IP23
CertificationsCE, CB, ENEC, cNRTLus
