INFINIMAT 1X4 KIT

Name: INFINIMAT 1X4 KIT
Brand: Aputure
SKU: INFINIMAT 1X4 KIT
Price: 4666611 NGN
Availability: InStock

Aputure

EAN: 6971842187805

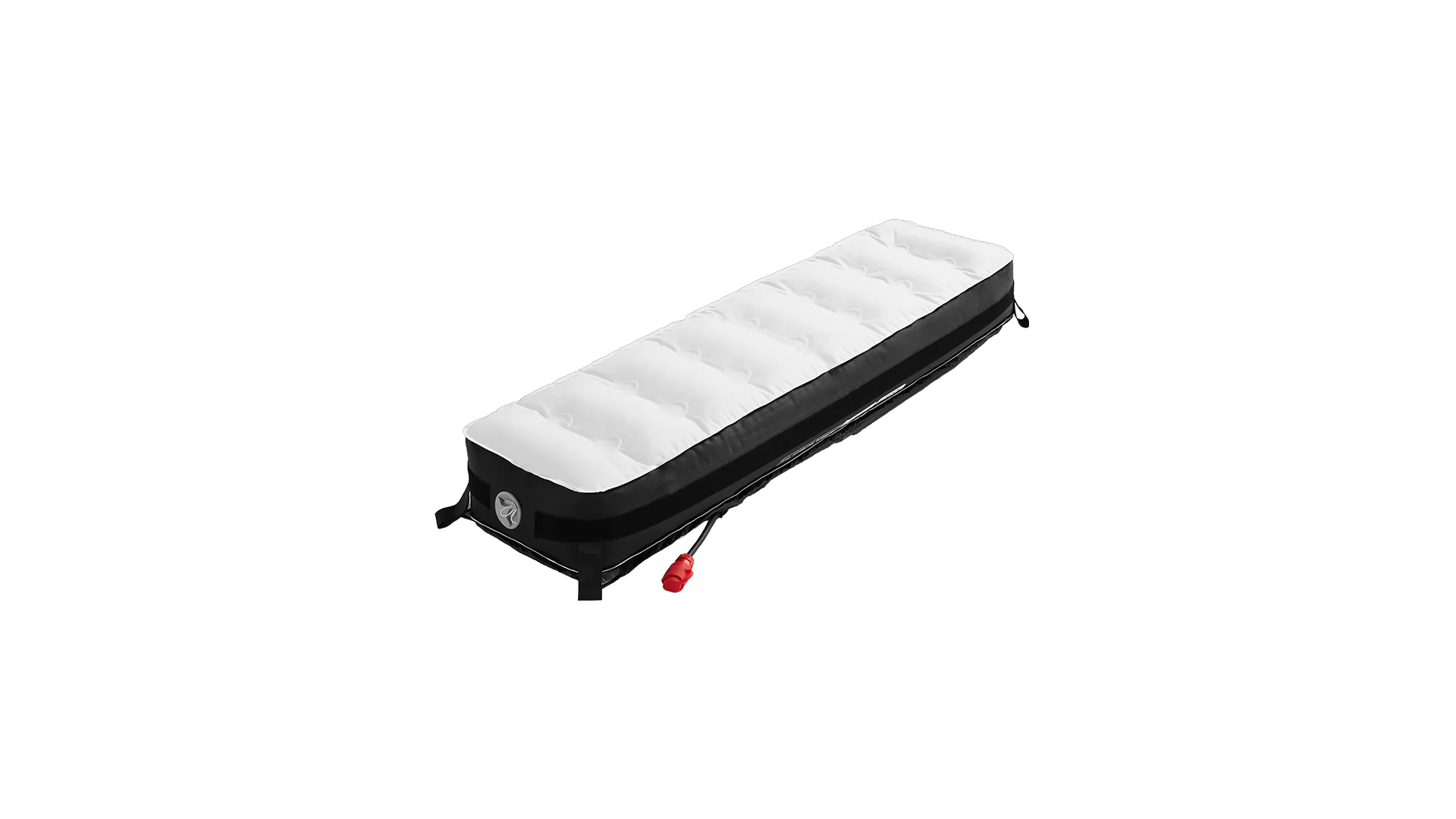

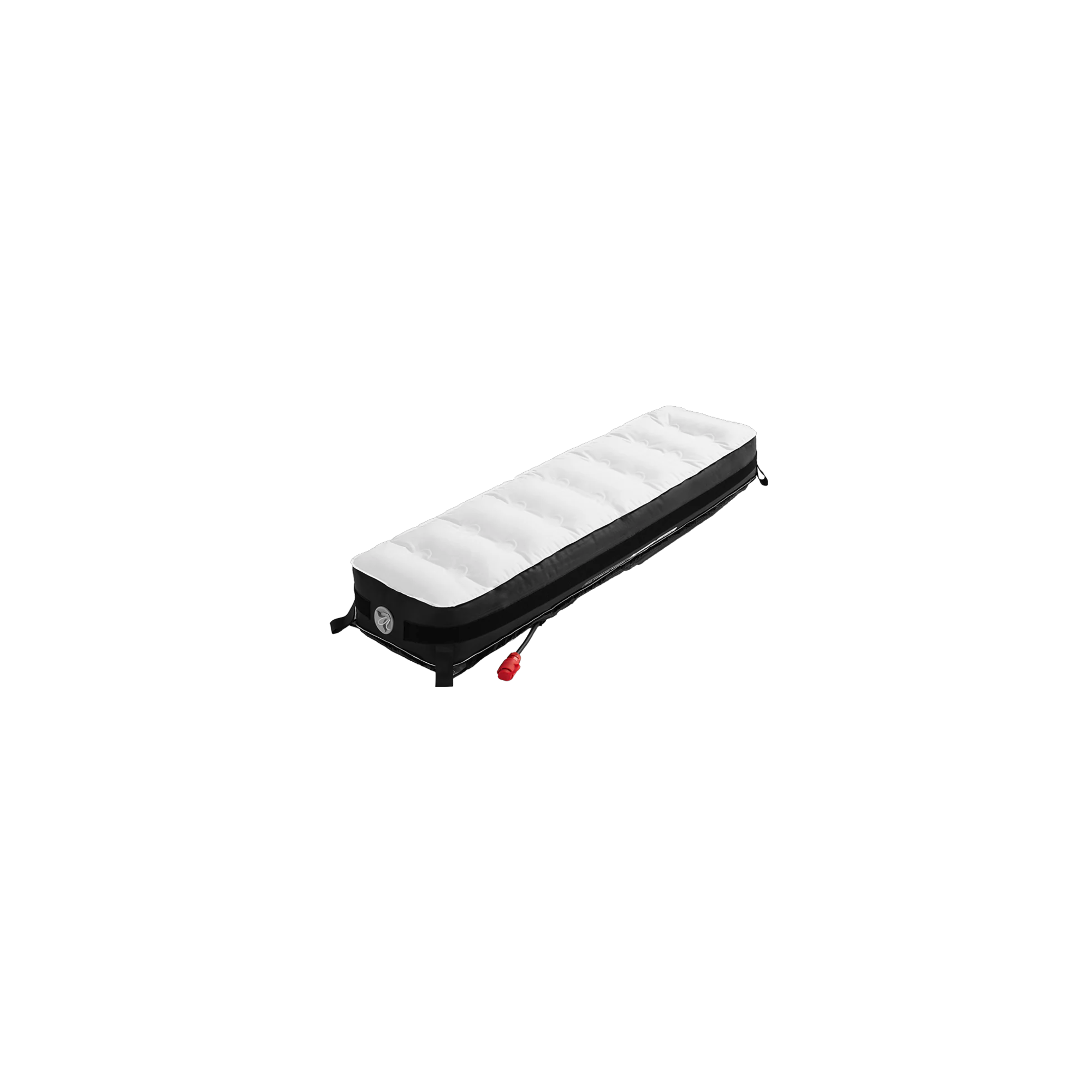

INFINIMAT 1X4 KIT tunable color mat light with inflatable airbag

go to the technical sheet

₦ 4,666,611.00

₦ 4,341,033.40 VAT excl.

Available 1 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

Aputure INFINIMAT 1X4 KIT tunable color mat light with inflatable airbag

Double the Output
The INFINIMATs are significantly higher in brightness than competitors of the same size, some double the intensity.
The increased output makes the INFINIMATs more useful in a variety of production settings, even daylight.

One Controller, Infinite Options
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick.
Control up to 3 INFINIMATs with the 400W Control Box, and up to 5 mats with the 1600W box.

Infinite Shapes, Minimal Size
INFINIMATs can be used with or without the airbag, strapped in place or mounted to their frames.
The airbags quickly inflate/deflate and the lights take up less space on set compared to traditional diffused setups such as book lights.
Even the 20x20 is quicker to set up than a standard overhead rig.
When not in use, the INFINIMATs pack down small for storage.

Pixel Control at Scale
All INFINIMATs are color tunable and are configured in 1x2 or 2x2 pixels.
The INFINIMAT pixels can be controlled over DMX systems for active motion effects.

Rental Grade Construction
IP65 weather protection means a sealed system, which also includes metal backing plates for heat dispersion, rigidity, and physical protection for the LEDs.
The internal design of the mats and control box are modular for easy service.

Ultra Low Dimming
The INFINIMATs utilize a dual-dimming internal control system which allows them to dim to extremely low levels without color shift and with fine gradients for a smooth transition. Dimming to as low as 0.1% is possible, up to ten times dimmer than the competition.

Portable Travel Kits
INFINIMATs can store inside their travel cases for shipping and when on set can be staged in their included zipper bags, taking up little space while ready for use.
On the 4x4 and smaller sizes the airbag stores deflated on the mat, saving setup time and storage space.

General
_____________________
CCT: 2,000K - 10,000K
CRI: greater than or equal to 96
TLCI: greater than or equal to 97
CQS: greater than or equal to 95
SSI (Tungsten): 84
SSI (D56): 73
TM-30 RF (Average): 92
TM-30 RG (Average): 100
Max Power Consumption: 201W
Max Power Output: 162W
Weather Resistance Rating: IP65
Pixel Count: 2 pixels
Pixel Module: 1x2
Softbox Inflation Time (Air Pump Mini): 33 sec
Softbox Inflation Time (Air Pump Max): 4 sec
Full-Inflation Duration: 7 days
Operating Voltage DC1 & DC2: 12V-16.8V 22V-33.6V
Operating Voltage AC: 100V ~ 264V
Operating Temperature: -20°C ~ 50°C
Storage Temperature: -20°C ~ 85°C

Control Methods
_____________________
Control Methods: On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
Firmware Upgradeable: Sidus Link, USB Drive
Wireless Range (Bluetooth & CRMX): less than or equal to 100m / less than or equal 328.1ft

Control Box
_____________________
Control Box Type: INFINIMAT Control Box 400W
Control Box Fan Noise Levels High Speed Mode: 29.3 dBA
Control Box Fan Noise Levels Medium Speed Mode: 24.7 dBA

Weight
_____________________
INFINIMAT 1x4: 2.40kg / 5.29lbs
INFINIMAT Air Pump Mini: 0.24kg / 0.53lbs
Control Box 400W: 7.2kg / 15.87lbs
Inflatable Softbox 1x4: 0.86kg / 1.90lbs
Light Control Skirt 1x4: 0.78kg / 1.72lbs
Light Control Grid 1x4: 0.71g / 1.56lbs
Carrying Case (INFINIMAT & Softbox Pack 1x4): 4kg / 8.82lbs
Carrying Case (Control Box 400W Pack): 2.9kg / 6.39lbs

Dimensions
_____________________
INFINIMAT 1x4: 124.00 x 34.00cm | 4.07 x 1.12ft
INFINIMAT Air Pump Mini: 3.60 x 11.40 x 12.60cm | 1.42 x 4.49 x 4.96in
Control Box 400W: 33.50 x 22.00 x 24.00cm | 13.19 x 8.66 x 9.45in
Inflatable Softbox 1x4: 124.00 x 34.00 x 17.00cm | 4.07 x 1.12 x 0.56ft
Light Control Skirt 1x4: 300.00 x 50cm | 118.00 x 19.69in
Light Control Grid 1x4: 122.00 x 35.00cm | 4.00 x 1.14ft
Carrying Case (INFINIMAT & Softbox Pack 1x4): 76.50 x 47.00 x 26.00cm | 30.11 x 18.50 x 10.23in
Carrying Case (Control Box 400W Pack): 43.50 x 39.50 x 31.40cm | 17.13 x 15.55 x 12.36in

1x Carrying Case for INFINIMAT & Softbox Pack
1x INFINIMAT 1x4
1x INFINIMAT 7.5m Head Cable (400W)
1x INFINIMAT Mounting Bracket 1x4
1x K-Mount Arm w/ Straight 5/8” Pin
1x INFINIMAT Inflatable Softbox 1x4
1x INFINIMAT Light Control Skirt 1x4
1x INFINIMAT Light Control Grid 1x4
1x INFINIMAT Patch Kit
1x INFINIMAT Air Pump Mini
1x Carrying Case for Control Box 400w Pack
1x INFINIMAT Control Box 400W (V or Gold Mount)
1x True1 AC Power Cable – 6m
1x K-Mount Style Mounting Clamp
