Luxibel

Led panel 90W Warm White LED soft light
go to the technical sheet
€ 671,85

€ 624,98 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

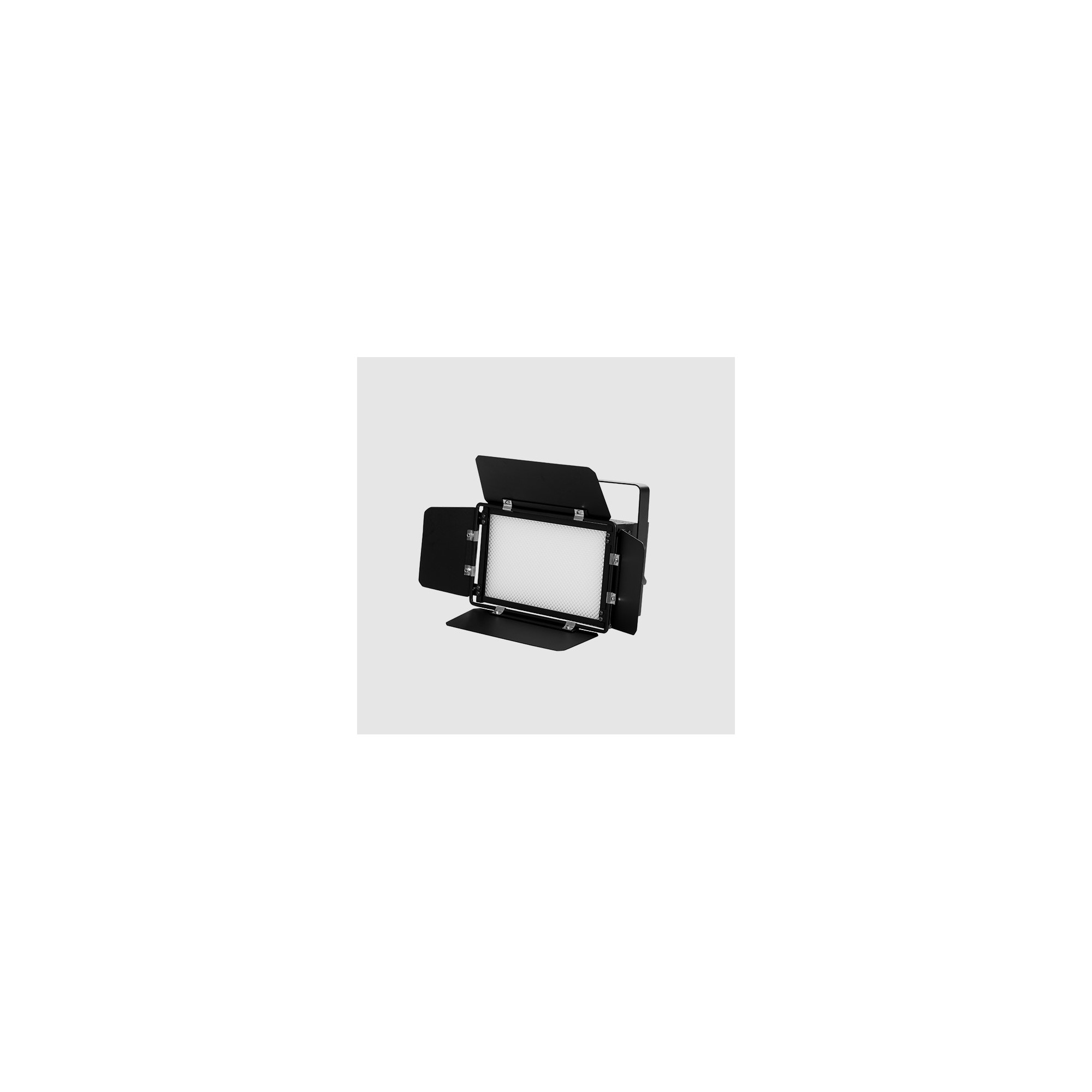

The B PANEL120 is the smallest and most versatile warm white soft light on the market. It is equipped with barn doors and a removable frost and gel frame. The panel comes with manual dimming and DMX. Furthermore, it has high CRI 96, making this fixture ideal for TV, theatre, photography and much more.

Indoor use
Easy to use
16 bit dimming
No fans, no noise
Adjustable refresh rate: +400 Hz
TÜV SÜD GS & CE certified

PHYSICIST
Dimensions (WxHxD): 331 x 238 x 114 mm
Packaging dimensions (WxHxD): 360 x 290 x 175 mm
Outer box dimensions (2 pieces): 380 x 370 x 320 mm
Net weight: 4.6 kg
Gross weight (1 piece): 5.5kg
Gross weight (2 pieces): 11 kg
MOUNTING OPTIONS
Hanging: 3x M12 bolt holes
2nd suspension / safety cable: 1x eyelet on the top of the luminaire for passing a safety cable or carabiner

CHECK
Menu control: Via 4-digit TFT display with 4 buttons
Control: DMX512, manual adjustment button
In / Link: XLR 5 pin
DMX mode: 1/2/3 channels

OPTICAL
Beam angle: 160 °
Light output: 670 lux @ 2m | 230 lux @ 4 m | 118 lux @ 6 m
Adjustable refresh rate: +400 Hz
Colors: White, 2.700K
CRI: 96
Strobe: 0-20 Hz

ELECTRIC
Nominal power of the appliance: 85W
Input power: AC 100V-240V ~ 50/60 Hz - Self-switching power supply
LED engine: 120 white SMD LEDs
In / Link: PowerCON TRUE1 - max connection current 10A

ENVIRONMENTAL
Maximum living room temperature: 50 °
Cooling: Convectional - fanless
IP classification: IP20

ACCESSORIES
Power cord with bare ends
Gel frame
Soft frost
Intensifier
Barndoor
