F10 Fresnel

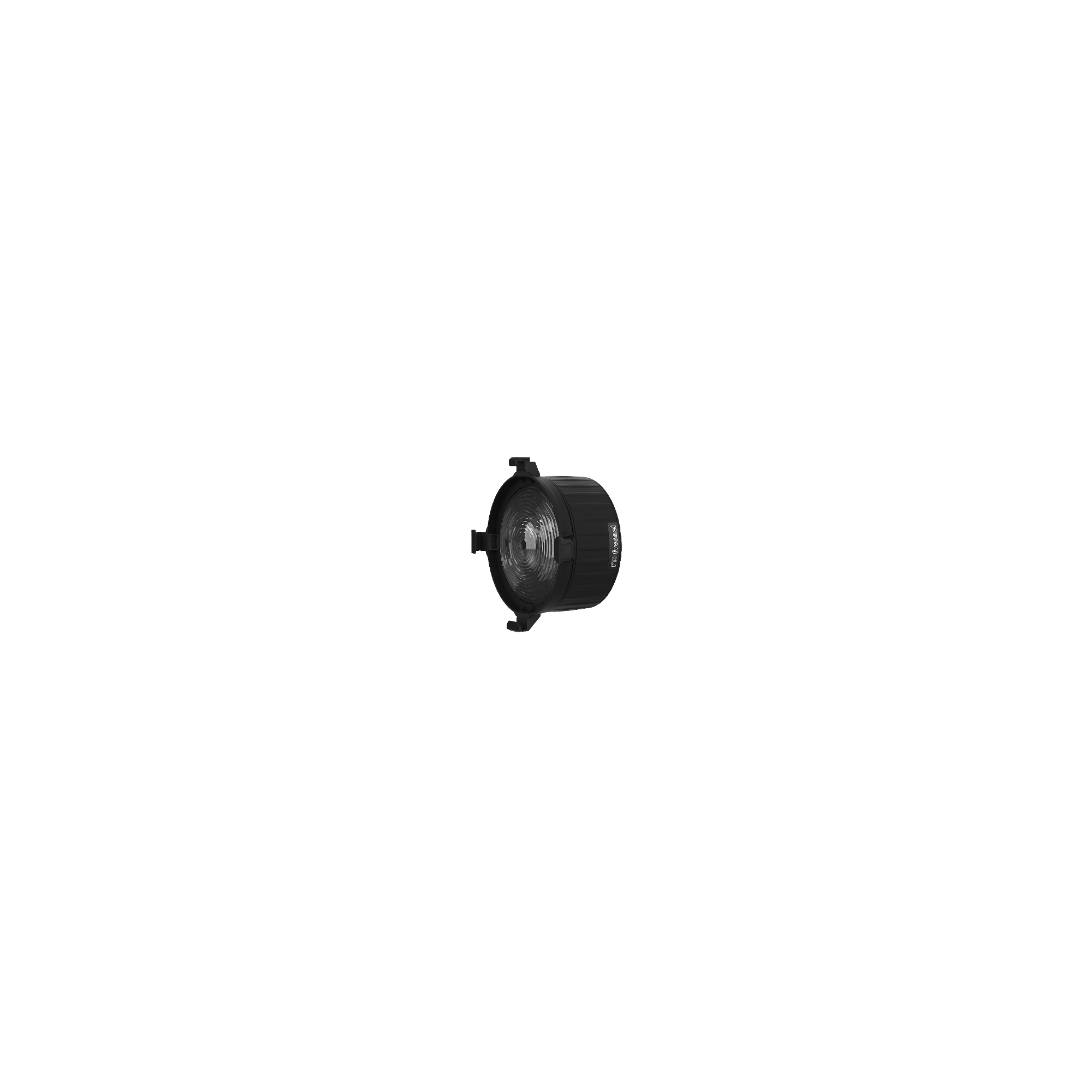

The F10 Fresnel is a Bowens Mount, True Glass Fresnel Lens Modifier, made to match the sizeof traditional 10-inch Fresnel lights like a tungsten 5K or 2500W HMI, with a 250mm diameterlens made of real glass. The size of this Fresnel allows filmmakers to get punchy hard-light thatmaintains a subtle soft quality that is perfect for dramatic expression.As an Aputure Fresnel, this modifier also uses Aputure's dual-lens optical design, utilizing acondenser lens to refocus the light from a flat-chip COB LED to perfectly fill the front Fresnelelement, further enhancing the fixture's illuminance. When combined with the Aputure LS 600d,the fixture can output over 200,000lux at 1 meter. In addition to its variable 15°-45° beam angle, the F10 Fresnel also adopts Aputure's seamlessadjustable focus design from the Fresnel 2X, assuring precise and ergonomic adjustability. The F10 also incorporates a unique ventilation design that allows for airflow to prevent the COB from overheating, while also minimizing any light leaks.

The Fresnel is also compatible with Aputure's F10 Barndoors, which provide large adjustableleaves that made to properly cut light from the large Fresnel.The F10 Fresnel is the largest professional Bowens Mount Fresnel lens on the market and was designed with advice from professional gaffers and cinematographers in mind.


Top Features
- Up to 200,000+ lux @ 1 Meter with the Aputure LS 600d
- 15°-45° Variable Beam Angle
- 10" Glass Fresnel Lens
- Dual Lens Optical Design
- Compatible with F10 Barn Doors
- Seamless Focus Adjustment
- Minimizes Light Leaks
