JBL

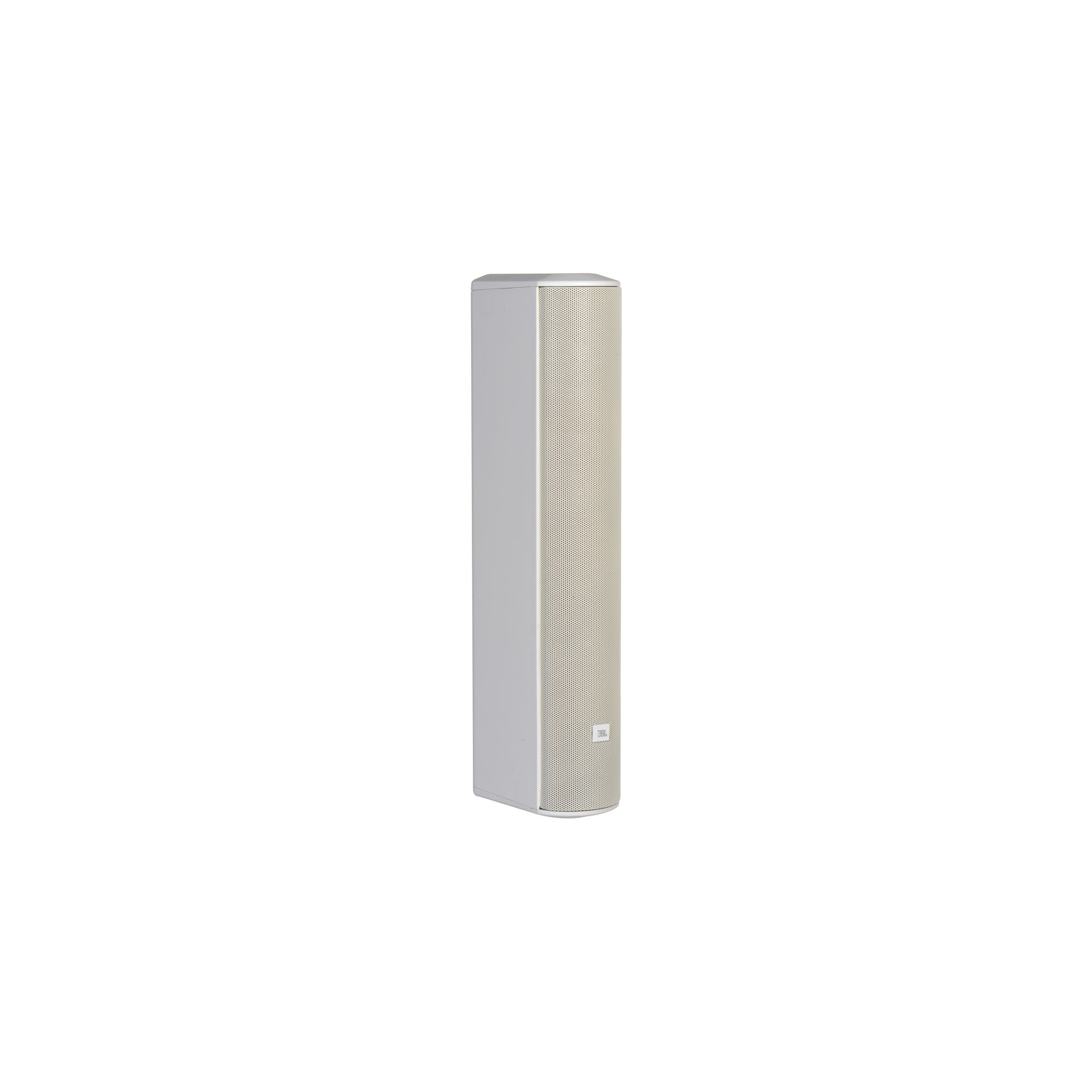

Line Array Column Loudspeaker (White)
go to the technical sheet
  • -2.5%
Save 2.5%
€ 1.004,62

€ 934,53 VAT excl.

€ 1.030,38
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
The white JBL CBT 50LA-1-WH Line Array Column Loudspeaker features Constant Beamwidth Technology, so it's well-suited for use in lecture halls, transit centers, conference rooms, cathedrals, multipurpose spaces, architectural spaces, in-wall recessed locations and more. This technology reduces the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.

This flexible, compact speaker is built for indoor and outdoor usage and has controls for switchable voicing (music or speech). This model features an improved mounting bracket, which when used affords greater flexibility in aiming the speaker.
Main Features
Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
Dynamic SonicGuard overload protection
Built-in 70V/100V transformer, plus 8O direct capability
Improved Mounting Bracket
Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt)
Continuously adjustable +/-15 degree tilt, as well as 5-degree fixed increment points within the range
Ten threaded mounting points located on back panel conform to industry standard rectangular 4.25 x 2.0" (108 x 51mm) pattern for OmniMount 30.0 and other compatible third-party brackets
Threaded mounting points can be utilized for suspension

PA Speaker
Configuration Passive Full-Range
Total Power Capacity 150 W
600 W Peak (at 8 Ohms)
400 W Peak
System Impedance 8 Ohms
Drivers
Full-Range Driver 8 x 2" / 50 mm
Performance
Frequency Response 80 Hz to 20 kHz
Maximum SPL 111 dB (Continuous)
117 dB (Peak)
Coverage Angle 150° H x 20° V
Speaker Sensitivity 93 dB
Connectivity
Audio I/O 70 V / 100 V
Physical
IP Rating IP54
Construction Material ABS, Metal Grille
Dimensions 20.8 x 3.9 x 6" / 528 x 99 x 153 mm
Weight 9 lb / 4.1 kg
