Bella 4

Name: Bella 4
Brand: Glensound
SKU: Bella 4
Price: 2685241 NGN
Availability: OutOfStock

Glensound

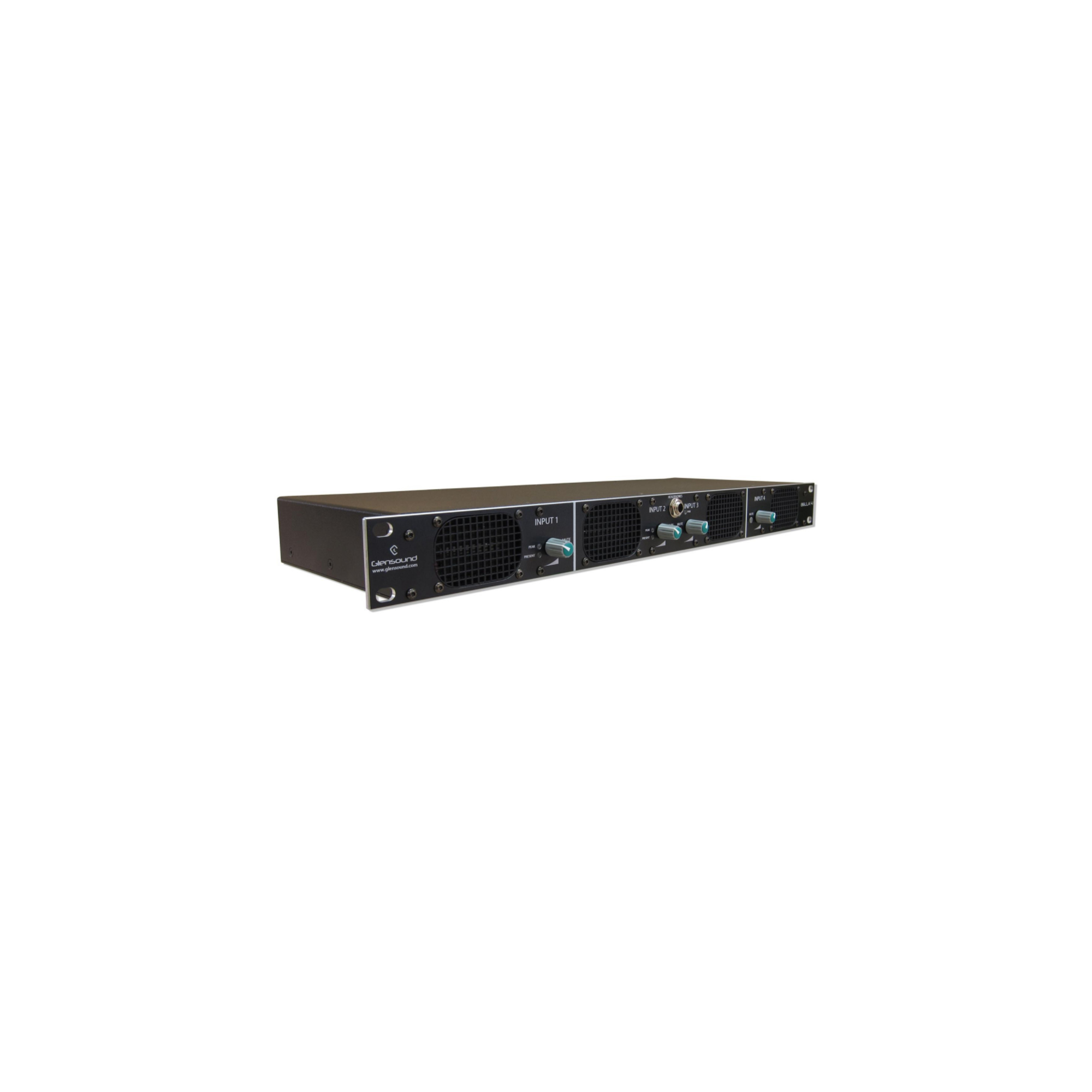

Bella 4 Four Input 1RU Rackmount Audio Monitor

go to the technical sheet

₦ 2,685,241.00

₦ 2,497,899.00 VAT excl.

Available in 11 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

The Bella 4 is a 4 loudspeaker confidence monitoring rack. it is a new design for 2019 and features the very latest technology in loudspeaker and amplifier design giving it an extended acoustic frequency range (compared to old legacy equivalent products) and low distortion.

The 4 loudspeakers are each fed from their own* Dante® (AES67 compliant) network audio input. Each Channel has a front panel audio presence indicator and input peak Led and an illuminated Channel mute switch. Front panel volume controls adjust the audio output of the speakers and the headphone circuit.

The Bella 4 is also manufactured in a analogue only version. The GS-MON004

Audio Mixer Converters

Audinate

Dante Virtual Soundcard

₦ 151,198.00 VAT included

Available 4 unit in 4 Days

Magewell

Pro Convert Audio DX

₦ 899,613.00 VAT included

Available in 14 days

Download

Manuale

Download (498.8KB)

NETWORK

Physical Interface: 1 off Rj45 Neutrik Ethercon
Audio Sample Frequency: 48kS/s
Transfer Rate: 100 Mbps
Dante® Chipset: Ultimo UXT-01-004
Note: Audiante recommend no more than 10 Ultimo chipsets on one network UNLESS another Dante device such as the Brooklyn module (found in 8 channel Beatrice/ Dark units), is on the same network.
AES67 Compliant: The Audinate Ultimo chipset is AES67.

AUDIO - General

Volume Control Gain Range: +10/ Off
Present Indicator Threshold: -18dB
Present Indicator Hold Time: 3 seconds
Peak LED Threshold: +10dB

AUDIO - Headphones

Connector: 6.35mm (1/4") TRS Jack Socket
Maximum Output Before clipping: +18dB into 600 Ohms
Noise @ Lineup (22hz to 22kHz RMS): > -88 dB
THD + N: > 0.0025% @1kHz ref +8dB
Headphone Impedance: 32 - 1000 Ohms

AUDIO - Loudspeaker

Maximum Power RMS: 4 Watts (per loudspeaker)
Peak Power (per loudspeaker): 5 Watts (limited by compressor circuit)
Amplifier Type: Class D
Noise @ Lineup (measured at I/P to LS): >-61.5dB
THD + N (measured at input to LS): > 0.18% @ 1kHz ref +8dB
Acoustic Frequency Response: 120Hz to 22kHz +/- 9dB
Maximum Acoustic Level (1 Loudspeaker): 88dB SPL @ 0.61 Meters (2 Feet)
Maximum Acoustic Level (4 Loudspeakers): 98dB SPL @ 0.61 Meters (2 feet)
Loudspeaker Magnet Type: Neodymium
Magnetic Induction: 1.15 T (per loudspeaker)

POWER

Input Voltage: 100 - 240 VAC +/-10%
Frequency: 50 / 60 Hz
Input Connector: Filtered IEC (Internally fused)
Consumption: 25 Watts (Maximum)

PHYSICAL

Mechanics: All aluminium with laser etched panels and light textured black powder coated lid/ base
Size: 19" 1RU 164mm deep
Weight: 1.35Kg (4.2lbs)
Shipping Weight: 3.1Kg (6.8lbs)
Shipping Size: 62 x 41 x12 cms
Shipping Carton: Rugged export quality cardboard

ENVIROMENTAL

Operating Temperature: 0 to +50 C (32 to 122 F)
Storage Temperature: -20 to +70 C (32 to 122 F)
Relative Humidty: 0 to 95% non-condensing

INCLUDED ITEMS

Handbook: Physical A4 (download also available)
Mains Cable: 2 metre IEC (UK & Europe only)
Network Cable:2 metre RJ45 to RJ45
