JBL

2-way exposed speaker, 5.25" (13 cm) driver, 100W 8Ohm, 100V tap - White
go to the technical sheet
₦ 577,899.00

₦ 537,580.83 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

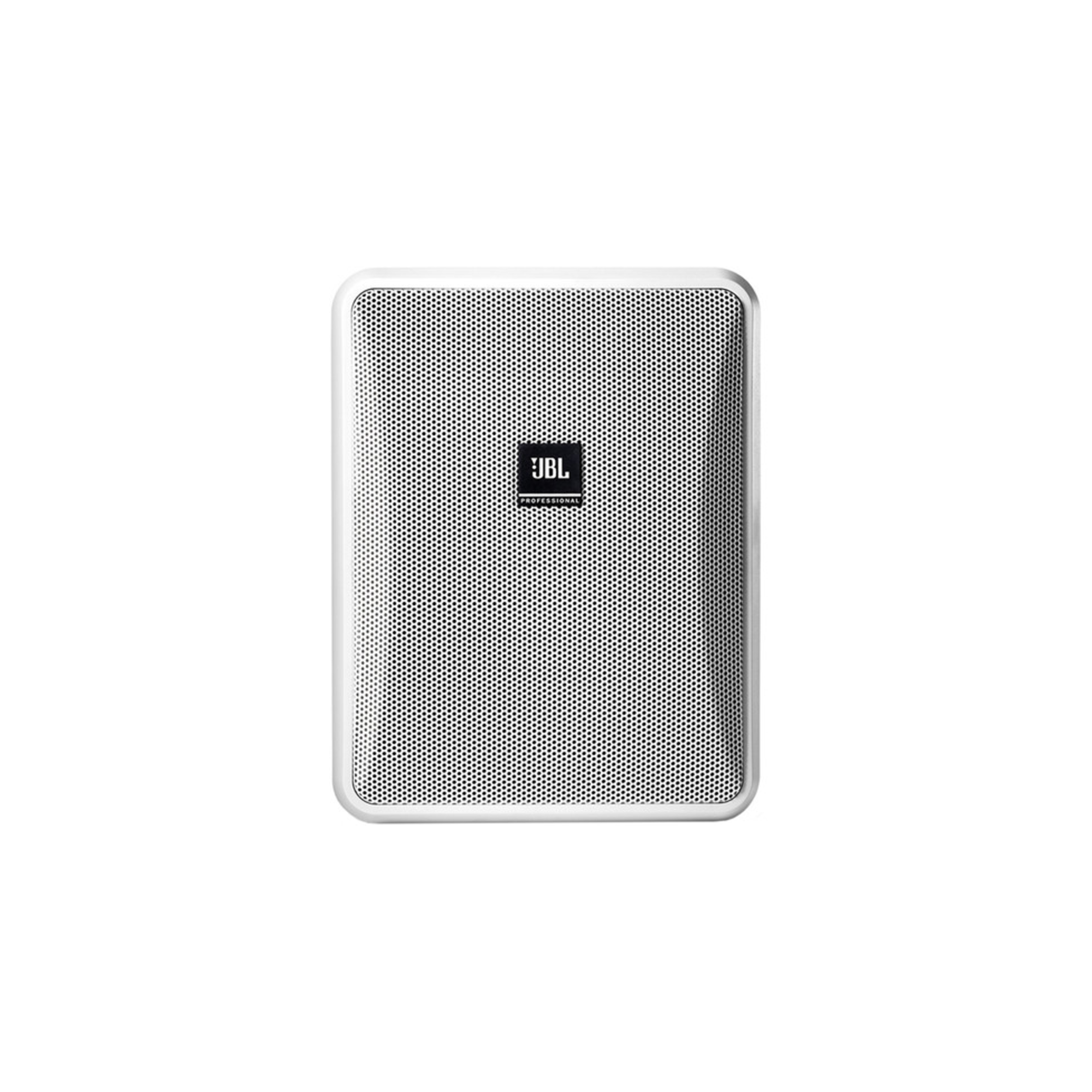

JBL 2-way exposed speaker, 5.25" (13 cm) driver, 100W 8Ohm, 100V tap, fixing bracket included - White

Designed by JBL, these Control 25-1 Loudspeakers are two-way 5.25" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, black enclosures, and JBL's proprietary InvisiBall mounting hardware.
This hardware allows you to install the speakers through a hidden access point behind its logo badge.
As such, the Control 25-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.

These monitors are capable of handling 200W of programmatic material at 8 ohms, and feature a built-in multi-tap transformer for operation on distributed speaker lines. With an SPL of 110 dB, you can blast these speakers pretty loudly as well, while their cone geometry ensures a pleasurable listening experience in both on- and off-axis situations.
Additionally, their PEI diaphragms render a smooth high-frequency response.
But sound is not the only consideration: Kapton voice coil formers, JBL's WeatherEdge rubberized extensions, and a durable cabinet construction provide protection against heat, rain, wind, or anything else the elements might throw at you in the coming years.

Also, while the Control 25-1 comes in a black finish, it doesn't have to stay that way: these speakers accept a variety of finishes and pigments to match any surrounding.

- 5.25" woofers with woven fiberglass cone
- 0.75" PEI diaphragm tweeters with fluid cooling
- Built-in InvisiBall mounting hardware
- Weather-resistant enclosure and transducers
- 100 x 100° coverage
- 200W power handling of programmatic material in direct 8 Ohms setting, plus built-in multi-tap transformers
- Frequency response of 60 Hz to 20 kHz

Speaker
Active/Passive : Passive
Number of Included Speakers: 2
Speaker Configuration : 2-Way
Power Handling:
- For 100 Hours: 75 W RMS | 300 W Peak
- For 2 Hours: 200 W Program | 100 W RMS | 400 W Peak
Constant Voltage / Transformer Taps:
- 100 V: 30 / 15 / 7.5 W or 8 Ohms Bypass
- 70 V: 30 / 15 / 7.5 / 3.7 W or 8 Ohms Bypass
Impedance: 8 Ohms (Thru Setting)

Drivers
HF Driver : 0.75" / 19 mm PEI Tweeter
LF Driver : 5.25" / 13.5 cm Fiberglass Woofer

Performance
Frequency Response:
- 60 Hz to 20 kHz ±10 dB
- 85 Hz to 17 kHz ±3 dB
Sensitivity : 90 dB
Coverage Angle : 100° H x 100° V
Directivity:
- 6 (Directivity/Q Factor)
- 7.6 dB (Directivity Index)
Crossover: 12 dB/Octave
Recommended High-Pass Filter: 60 Hz, 24 dB/Octave
Maximum Input Voltage:
- 25.3 V RMS
- 50.6 V Peak
Transformer Insertion Loss: <0.94 dB

Connectivity
Inputs/Outputs: Screw Terminal
Maximum Wire Gauge: 12 AWG / 2.5 mm

Environmental
Certifications: RoHS, UL
Environmental Protection: Dust/Water-Resistant (IP44)

Physical
Color: White
Construction Material: High-Impact Polystyrene, Metal Grille
Dimensions: 9.6 x 7.4 x 5.7" / 243 x 188 x 145 mm
Weight: 7.5 lb / 3.4 kg

2-way exposed speaker, 5.25" (13 cm) driver, 100W 8Ohm, 100V tap, fixing bracket included
